Description

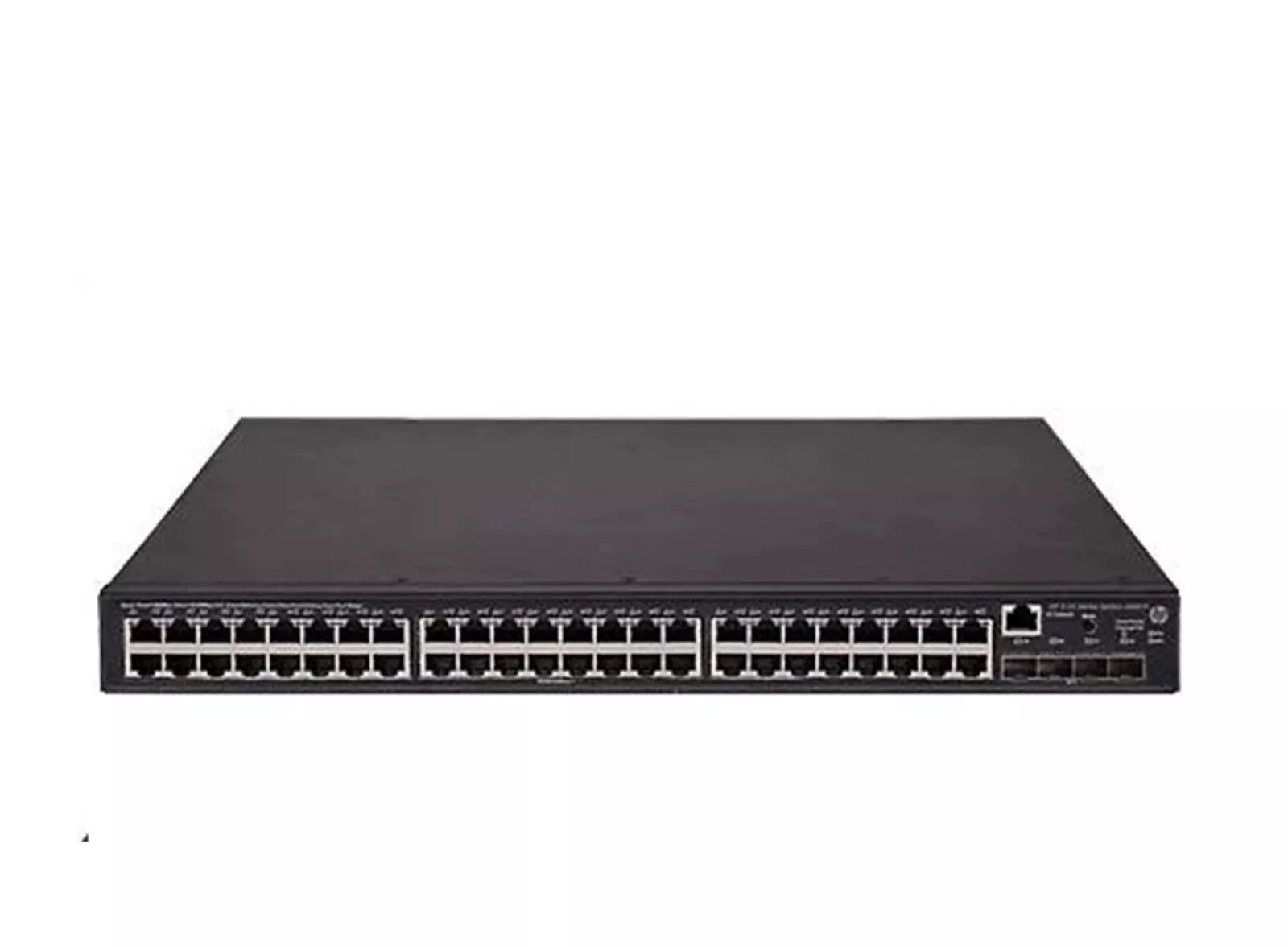

The HP Networking JG937A is a 48-port, Layer 3 managed switch with PoE+ support, designed for scalable and high-performance enterprise networks. It combines full Gigabit Ethernet access with advanced routing features and stacking capability, offering flexibility and reliability in a 1U rack-mountable form factor.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
HP Networking
|
|
Category
|
Computers/Tablets & Networking
|
|
Part Number
|
JG937A
|
| Subcatecory |
|
| Device Type |
Managed L3 Stackable Switch |
| Access Ports |
48 x 10/100/1000 Mbps |
| Uplink Ports |
4 x 10G/1G SFP+ |
| PoE Type |
PoE+ |
| PoE Budget |
370W
|
| Switching Capacity |
176 Gbps |
| Throughput |
130.9 Mpps |
| MAC Address Table Size |
16,384 entries |
| Power Consumption |
490W (operational) |
| Voltage Required |
AC 120/230V, 50/60 Hz |
Information About JG937A
The JG937A is part of HP’s managed switch portfolio, built to support dense network edge or distribution layer deployments. It includes 48 x 10/100/1000 Mbps ports and 4 combo uplinks (10G/1G SFP+ slots) for high-speed connectivity to core or aggregation layers.
Key Features:
-
48 x Gigabit Ports + 4 x 10G/1G SFP+ Uplinks: High-density access with flexible uplink options.
-
PoE+ Support: Delivers 370W power budget for IP devices across the network.
-
Layer 3 Routing: Static IPv4/IPv6 routing capabilities for advanced traffic control.
-
High Performance Switching: 176 Gbps capacity and 130.9 Mpps forwarding rate.
-
Jumbo Frame Support: Enables efficient large-packet transfers with up to 9216-byte frames.
-
Large MAC Table: Supports up to 16,384 MAC addresses for large-scale deployments.
-
Stackable Design: Scales with growing networks and simplifies management.
The JG937A offers reliable switching and routing in a compact format, ideal for enterprise edge environments requiring PoE and performance.
