Description

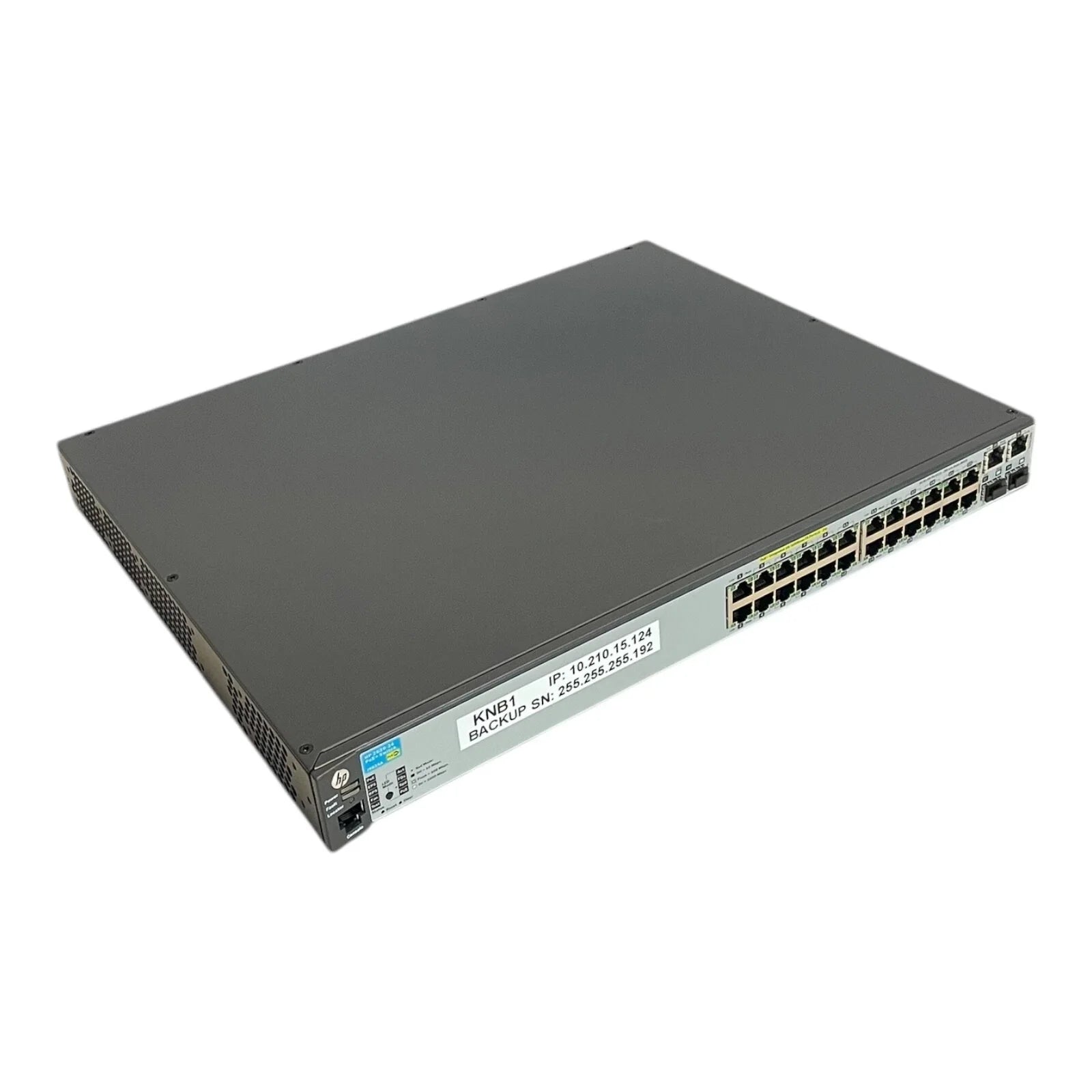

The J9625A is an HP Networking PoE+ switch offering 24 Gigabit Ethernet ports with Power over Ethernet Plus (PoE+) support.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
HP Networking
|
| Category |
|
| Part Number |
J9625A |
| Subcatecory |
Managed PoE+ Ethernet Switch |
|
|
· 24 autosensing 10/100 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); media type: auto-MDIX; duplex: half or
full
· 1 RJ-45 serial console port
· 2 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T);
duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
· 2 open mini-GBIC (SFP) slots |
| Throughput |
Up to 9.5 Mp/s |
| Switching Capacity |
12.8 Gb/s |
| PoE Power |
382 W |
|
Operating Temperature
|
0° to 55°C (32° to 131°F) |
Operating Relative Humidity
|
15% to 95% @ 40°C (104°F), non-condensing |
| Non-operating Storage Temperature |
-40° to 70°C (-40° to 158°F) |
| Non-operating Storage Relative Humidity |
15% to 90% @ 65°C (149°F), non-condensing |
Altitude
|
3,000 m (10,000 ft) |
| Acoustic |
Power: 34.0 dB
Pressure: 29.7 dB |
Idle Power1
|
22.8 W |
| Maximum Power Rating2 |
428 W |
| PoE Power |
382 W |
| Voltage |
100 - 127 / 200 - 240 V ac |
Frequency
|
50 - 60 Hz |
| Memory |
512MB flash
512MB SDRAM
4MB flash ROM |
| Dimensions (H x W x D) |
4.39 x 44.3 x 36.83 cm (1.73 x 17.44 x 14.5 in) (1U height) |
| Weight |
4.84 kgs |
Information About J9625A
The J9625A is an HP ProCurve 2620-24-PoE+ managed network switch designed for enterprise, campus, and branch office deployments. It provides a combination of Gigabit Ethernet connectivity, Power over Ethernet Plus (PoE+), and advanced Layer 2 management features for efficient and flexible network performance.
Key Features:
- Type: Managed PoE+ Ethernet Switch
- Supported Devices: Supports networked devices such as IP phones, wireless access points, IP cameras, and computers
- Functionality: Offers 24 x 10/100/1000 Gigabit Ethernet ports with PoE+ for data and power delivery; includes 2 dual-personality ports (RJ-45 or SFP) for uplinks
- PoE Power Budget: Up to 370W, supporting PoE/PoE+ devices
- Layer 2 Features: VLANs, link aggregation, Spanning Tree Protocol (STP), QoS, and advanced security features
- Management: Web interface, CLI, SNMP, and compatibility with HP Intelligent Management Center (IMC)
- Construction: Rack-mountable 1U form factor with fanless design options for quiet operation
The J9625A is a reliable and cost-effective solution for businesses needing secure, high-performance network access with the flexibility to power PoE-enabled devices directly from the switch.
