Description

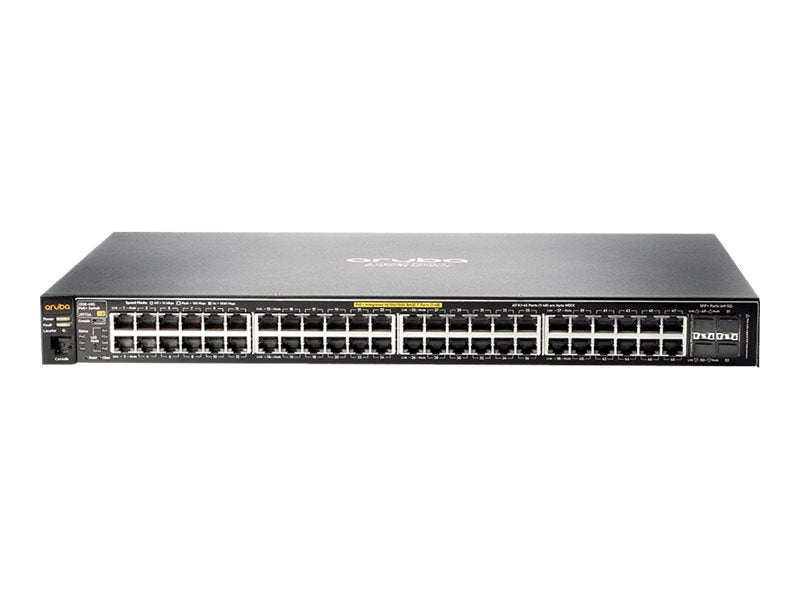

The HP J9772A Aruba 2530 48G PoE+ is a fully managed Layer 2 switch equipped with 48 Gigabit Ethernet ports and an internal power supply.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
HP Networking
|
| Category |
|
| Part Number |
J9772A |
| Subcatecory |
Managed Layer 2 Access Switches
|
| Product Series |
Aruba 2530 |
| Number of Ports |
48 x 10/100/1000Base-T |
| Switching Capacity |
104 Gbps |
| Forwarding Rate |
77.4 Mpps |
| SFP Slots |
2 |
| Jumbo Frame Support |
Up to 9,216 bytes |
| MAC Address Table |
16K entries |
| Flash Memory |
128 MB |
| SDRAM |
256 MB |
| Mounting |
Rack-mountable, Wall-mountable, Desktop |
| Dimensions (H x W x D) |
44.25 x 30.48 x 4.45 cm |
| Weight |
5.7 lb (2.59 kg) |
Information About J9772A
The J9772A belongs to the Aruba 2530 Series, offering 48 autosensing 10/100/1000Base-T ports with Power over Ethernet Plus (PoE+) support for delivering both data and power to connected devices like VoIP phones, wireless access points, and IP cameras. It includes 2 SFP slots for fiber uplink connectivity, enhancing scalability in access layer networks.
Key Features:
- Type: Fully managed Layer 2 switch with integrated PoE+ support
- Port Configuration: 48 x Gigabit Ethernet ports with full PoE+ functionality
- Data Transfer Rate: Up to 1 Gbps per port for high-speed access switching
- Switching Capacity: 104 Gbps for full-duplex, non-blocking performance
- Forwarding Rate: Supports up to 77.4 million packets per second
- SFP Uplinks: 2 dedicated slots for fiber uplink modules
- Memory: 256 MB SDRAM and 128 MB flash for stability and storage
- Jumbo Frame Support: Up to 9,216 bytes for enhanced throughput
- Mounting Options: Rack-mountable, wall-mountable, or desktop deployment
- Power Supply: Integrated AC power supply for reliable operation
- MAC Address Table: Supports up to 16K MAC addresses
- Operating Temperature: From -5°C to 55°C for extended installation flexibility
- Application: Supports network deployments requiring PoE+ and gigabit connectivity with advanced manageability
The J9772A provides robust access switching with 48-port PoE+ support, SFP uplink scalability, and strong Layer 2 performance in compact and secure form.
