Description

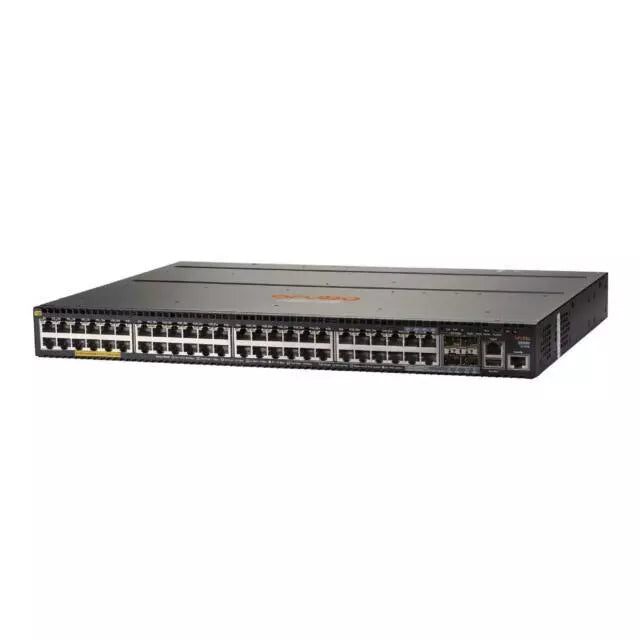

The HP Aruba JL322A is a 48-port Gigabit switch from the 2930M series, offering advanced Layer 3 features and PoE+ capabilities. Designed for enterprise access networks, it supports high-speed connectivity, dynamic routing, and simplified management.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
HP Networking
|
| Category |
|
| Part Number |
JL322A
|
| Subcatecory |
|
| Product Type |
Layer 3 Managed Gigabit PoE+ Switch |
| Series |
Aruba 2930M |
| Ports |
44 x RJ45 + 4 x Combo (RJ45/SFP) |
| Additional Ports |
1 x Micro-USB, 1 x USB Type-A, 1 x OOB RJ45 |
| MAC Address Table Size |
32,000 entries |
| Protocols Supported |
Auto-MDIX/MDI, Layer 3 Services |
| Forwarding Rate |
112 Mpps |
| Switching Bandwidth |
176 Gbps |
| Packet Buffer Size |
12.38 MB |
| Processor |
1016 MHz ARM Cortex A9 Dual-Core |
| Memory |
1 GB DDR3 |
| Flash Memory |
4 GB |
| Weight |
10.25 lbs |
Information About JL322A
The JL322A is a robust and intelligent Layer 3 managed switch that features 44 PoE+ Gigabit Ethernet ports, 4 combo Ethernet/SFP ports, and multiple management interfaces. Designed for scalability and performance, it delivers 176 Gbps switching bandwidth and 112 Mpps forwarding rate, making it suitable for high-traffic campus and branch deployments.
Key Features:
-
High Port Density: 44 PoE+ Gigabit ports + 4 combo ports for flexible connectivity
-
Layer 3 Routing: Supports dynamic routing protocols for enterprise networking
-
Fast Switching and Forwarding: Offers 176 Gbps switching bandwidth and 112 Mpps throughput
-
Enhanced Memory and Processing: 1 GB DDR3 RAM, dual-core ARM Cortex A9 processor at 1016 MHz
-
Advanced Management Interfaces: Includes Micro-USB, USB Type-A, and dedicated out-of-band management port
-
Energy Efficient and Standards-Compliant: Supports IEEE 802.3at for PoE+ and a full suite of IEEE protocols
The JL322A ensures high-speed access, security, and manageability for enterprise campus networks.
