Description

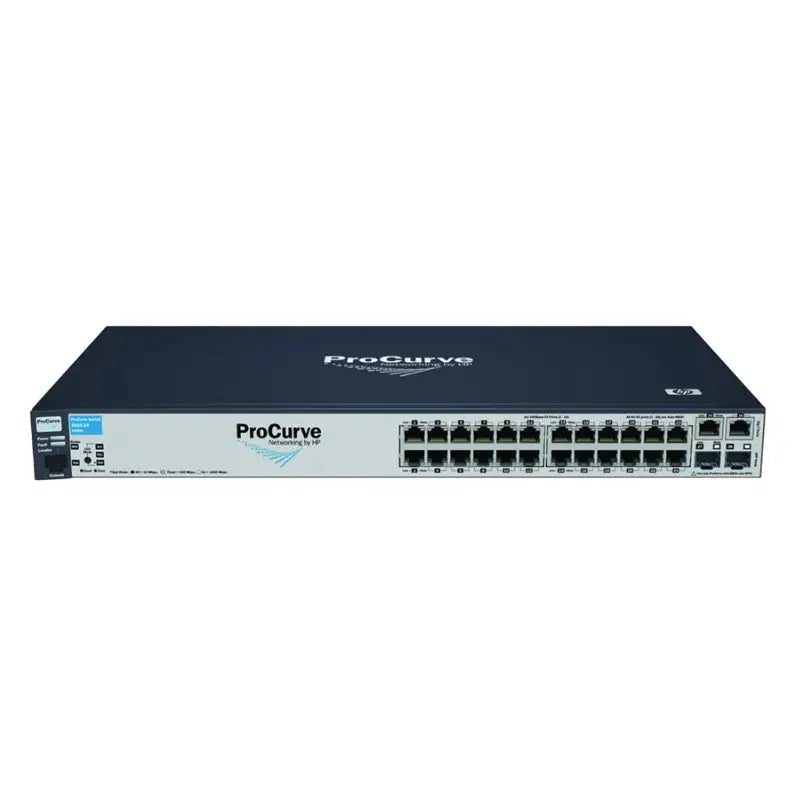

The HP J9085A is a 24-port managed Ethernet switch designed for 10/100 Mbps network environments. As part of the ProCurve series, it delivers reliable Layer 2 switching with support for jumbo frames, multiple traffic queues, and robust throughput performance.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
HP Networking
|
|
Category
|
Telecommunication Accessories
|
|
Part Number
|
J9085A
|
| Subcatecory |
|
| Series
|
HP ProCurve |
| Port Count |
24 x 10/100 Mbps |
| Maximum Data Rate (uplink) |
|
| Switching Capacity |
12.8 Gbit/s |
| Throughput |
9.5 Mpps |
| MAC Address Table |
8000 entries |
| Packet Buffer Memory |
1 MB |
| Input Current |
0.75A / 0.4A |
| Frequency |
50/60 Hz |
Information About J9085A
The J9085A is a managed Fast Ethernet switch from HP’s ProCurve line, equipped with 24 ports supporting 10/100 Mbps connections. It features a switching capacity of 12.8 Gbit/s and throughput of 9.5 Mpps, making it capable of handling moderate traffic loads efficiently. The switch includes support for jumbo frames, a MAC address table with 8000 entries, and 4 traffic queues for effective QoS management. It runs on 100–127V / 200–240V AC, drawing 0.75A / 0.4A at 50/60 Hz.
Key Features:
-
24-Port 10/100 Managed Switch: Offers Layer 2 management with standard 10/100 Mbps Ethernet for cost-effective network expansion.
-
Switching Capacity: Supports 12.8 Gbit/s switching fabric for responsive packet forwarding.
-
High Throughput Performance: Delivers up to 9.5 million packets per second (Mpps) for consistent performance under load.
-
MAC Address Table: Holds up to 8000 entries, supporting a wide range of connected devices.
-
Jumbo Frame Support: Enables efficient handling of large packets, optimizing performance for file transfers and backups.
-
Traffic Management Queues: Four internal queues help prioritize and manage traffic for smoother data flow.
-
Discontinued Product: No longer in production, but still in operation across legacy networks.
The J9085A continues to provide dependable Ethernet connectivity in established ProCurve-based network environments.
