Description

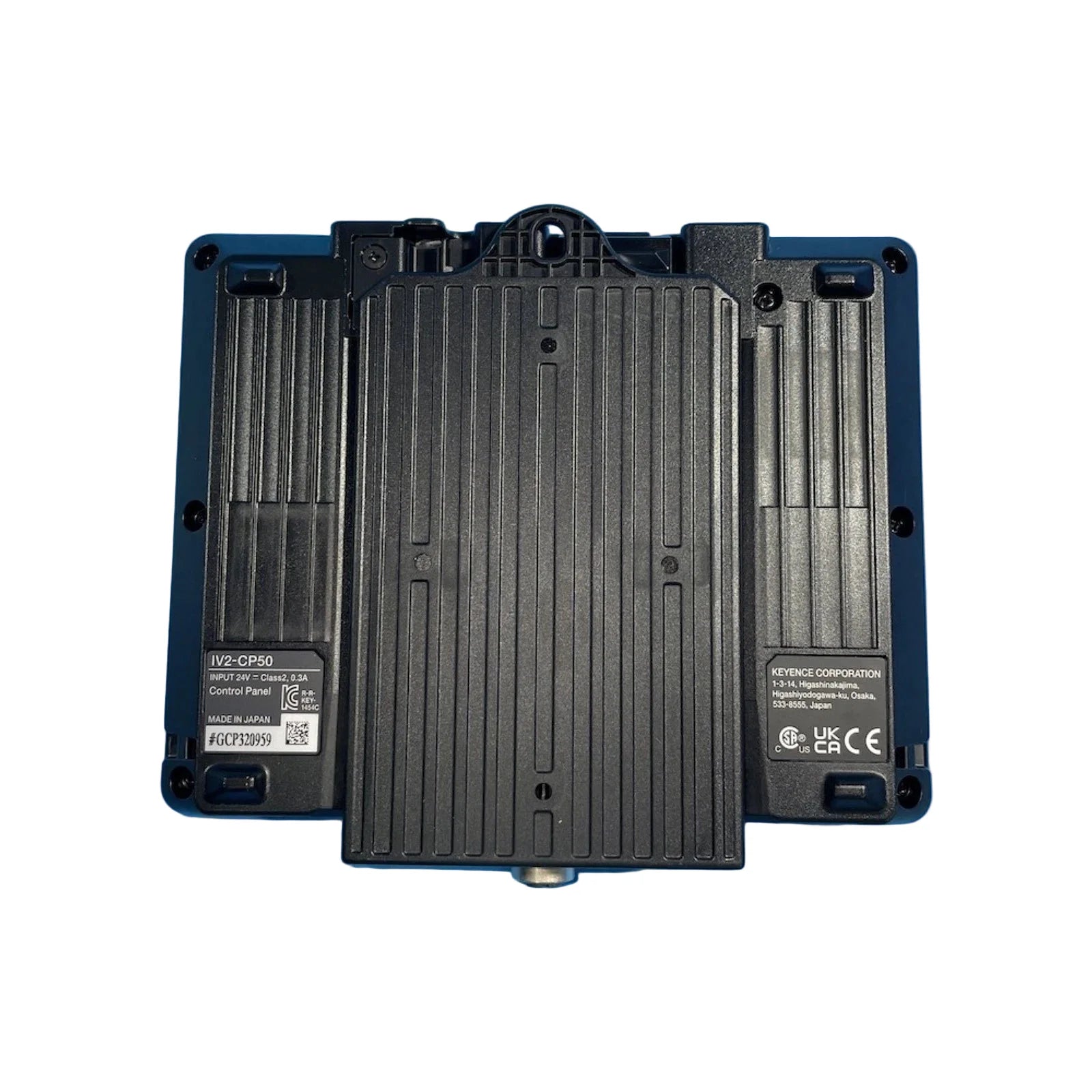

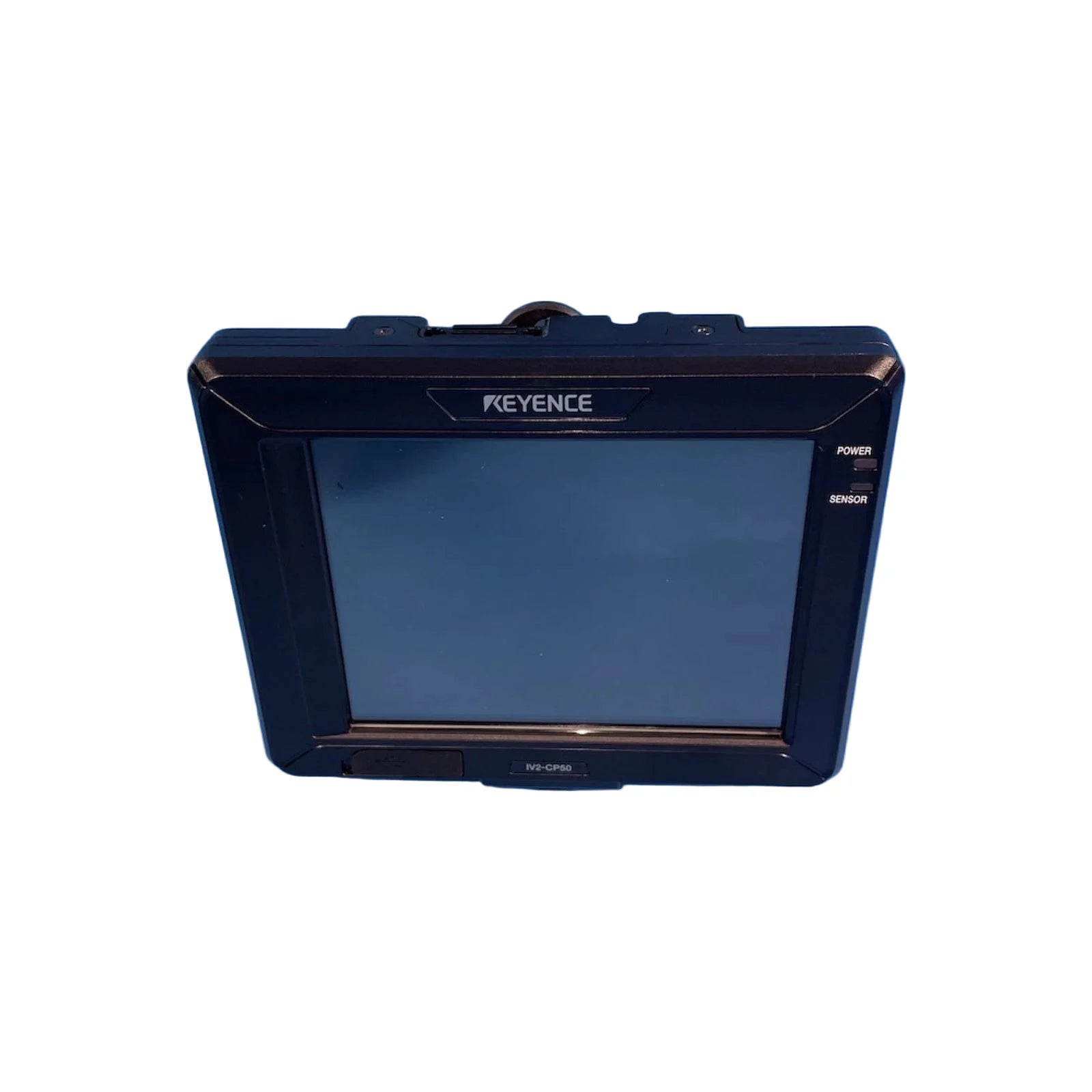

The Keyence IV2-CP50 is a control panel designed for use with Keyence IV2 Series vision sensors. It features a 5.7-inch TFT color LCD display with a VGA resolution and an analog resistive touch panel for intuitive operation. Powered by a 24 VDC supply, the unit provides easy access to configuration, monitoring, and image data management in industrial inspection systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Keyence |
| Category |
HMI / MMI / OIT |
| Part Number |
IV2-CP50 |
| Subcategory |
Operator Interface |
| Display Type |
5.7-inch TFT color LCD |
| Resolution |
640 × 480 (VGA) |
| Backlight |
White LED (approx. 50,000-hour life) |
| Touch Panel Type |
Analog resistive |
| Actuating Force |
0.8 N or less |
| Supported Languages |
English, Japanese, German, Chinese (Simplified/Traditional), Korean, Italian, French, Spanish, Portuguese, Czech, Hungarian, Polish, Thai |
| Ethernet Standard |
100BASE-TX/10BASE-T |
| Ethernet Connector |
M12 4-pin connector |
| Expanded Memory |
USB memory |
| Power Voltage |
24 VDC ±10% (including ripple) |
| Current Consumption |
0.3 A or less |
| Enclosure Rating |
IP40 |
| Operating Temperature |
0°C to +50°C (32°F to 122°F) |
| Operating Humidity |
35–85% RH (no condensation) |
| Drop Resistance |
1.3 m (4.3 ft) onto concrete, any direction |
| Vibration Resistance |
10–55 Hz, 0.7 mm double amplitude, 2 hours per axis |
| Housing Material |
Polycarbonate (main case), brass and zinc connectors, POM stylus |
| Connector Type |
M12 Ethernet / USB port |
| Mounting |
Wall or panel mount with adapter |
| Display Indicators |
PWR, SENSOR |
| Weight |
1.70 lbs (approx. 770 g with accessories) |
Information About IV2-CP50
The IV2-CP50 serves as the main interface for Keyence IV2 Series AI vision sensors, providing direct control and real-time visualization of inspection processes. Its bright white LED backlight ensures excellent visibility, while the USB memory interface allows for quick data storage and firmware updates. Built with a durable polycarbonate case and IP40 protection, it withstands daily industrial operation while maintaining precision touch responsiveness. The panel supports multiple languages and Ethernet connectivity through a standard M12 4-pin connector, ensuring flexible integration with factory automation systems.
Key Features:
- High-Visibility Display: 5.7-inch TFT color LCD with 640×480 VGA resolution for sharp image output.
- Long-Life Backlight: White LED backlight rated for approximately 50,000 hours of operation.
- Touch Interface: Analog resistive touch panel with low actuating force (0.8 N or less).
- Global Language Support: Multi-language interface including English, Japanese, German, French, Spanish, and more.
- Network Ready: 100BASE-TX/10BASE-T Ethernet connection via M12 4-pin connector.
- USB Expandability: Supports USB memory for program backup and image data storage.
- Reliable Power Operation: 24 VDC ±10% input with low power consumption (0.3 A or less).
- Environmental Protection: IP40-rated enclosure with impact resistance against 1.3 m concrete drops.
- Rugged Construction: Brass and zinc-plated connectors with durable PC and POM housing materials.
- Compact and Lightweight: Easy to mount in control cabinets or operator panels.
The IV2-CP50 delivers a reliable and user-friendly interface for configuring and operating Keyence IV2 Series vision systems in modern automation environments.
