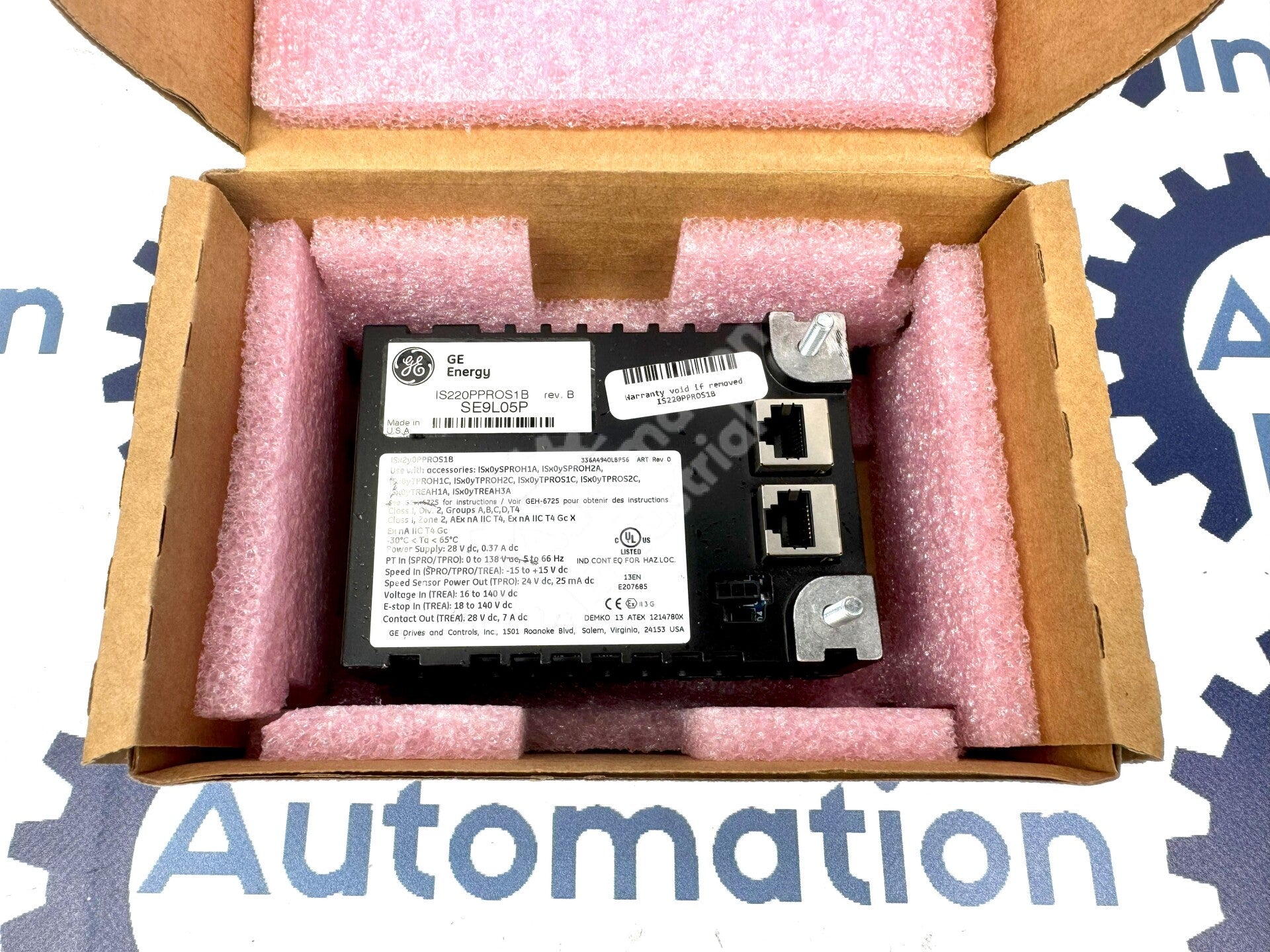

What the IS220PPROS1B does in the <P> protection core

On a GE Speedtronic Mark VIe turbine, the <P> protection core exists to trip the machine safely when the primary control cannot or should not. The IS220PPROS1B is the backup turbine protection (PPRO) I/O pack that carries much of that responsibility: it delivers an independent backup overspeed function, an independent check on generator synchronizing to the utility bus, and a watchdog over the primary control. Because it is a distributed pack, it mounts at the protection terminal board and communicates with the control over IONet, keeping the protective function electrically and logically separate from the main path.

Simplex (SPRO) and TMR (TPRO) mounting options

How the PPRO is deployed depends on the machine's protection design. In a simplex arrangement, a pack mounts on a simplex protection (SPRO) terminal board. In a triple-redundant arrangement, three packs run on the <R>, <S>, and <T> networks — either on separate SPRO boards or together on a TMR TPRO-type board — and a DC-37 cable links to the emergency trip terminal board for the turbine type: TREG (gas), TREL (large steam), TRES (small and medium steam), or TREA (aeroderivative). Match the pack to the terminal-board and trip-board set your plant actually uses; the protection architecture is engineered per site.

Pre-purchase checks that protect your trip chain

A protection alarm does not automatically mean a bad pack, and on a trip chain the cost of guessing is high. Stay within diagnosis — leave setpoints, functional trip testing, and redundancy checks to the GE manual (GEH-6721) and your plant procedures — and look first at:

• Speed sensing: the magnetic pickups and their field wiring (GE limits voltage-sensing runs to 1,000 ft of 18 AWG) are frequent culprits.
• Boards and cabling: the SPRO/TPRO terminal board, the emergency trip board, and the DC-37 cable between them.
• A single leg: a discrepancy on one <R>, <S>, or <T> channel usually points to that leg IONet path or terminal, not the pack.

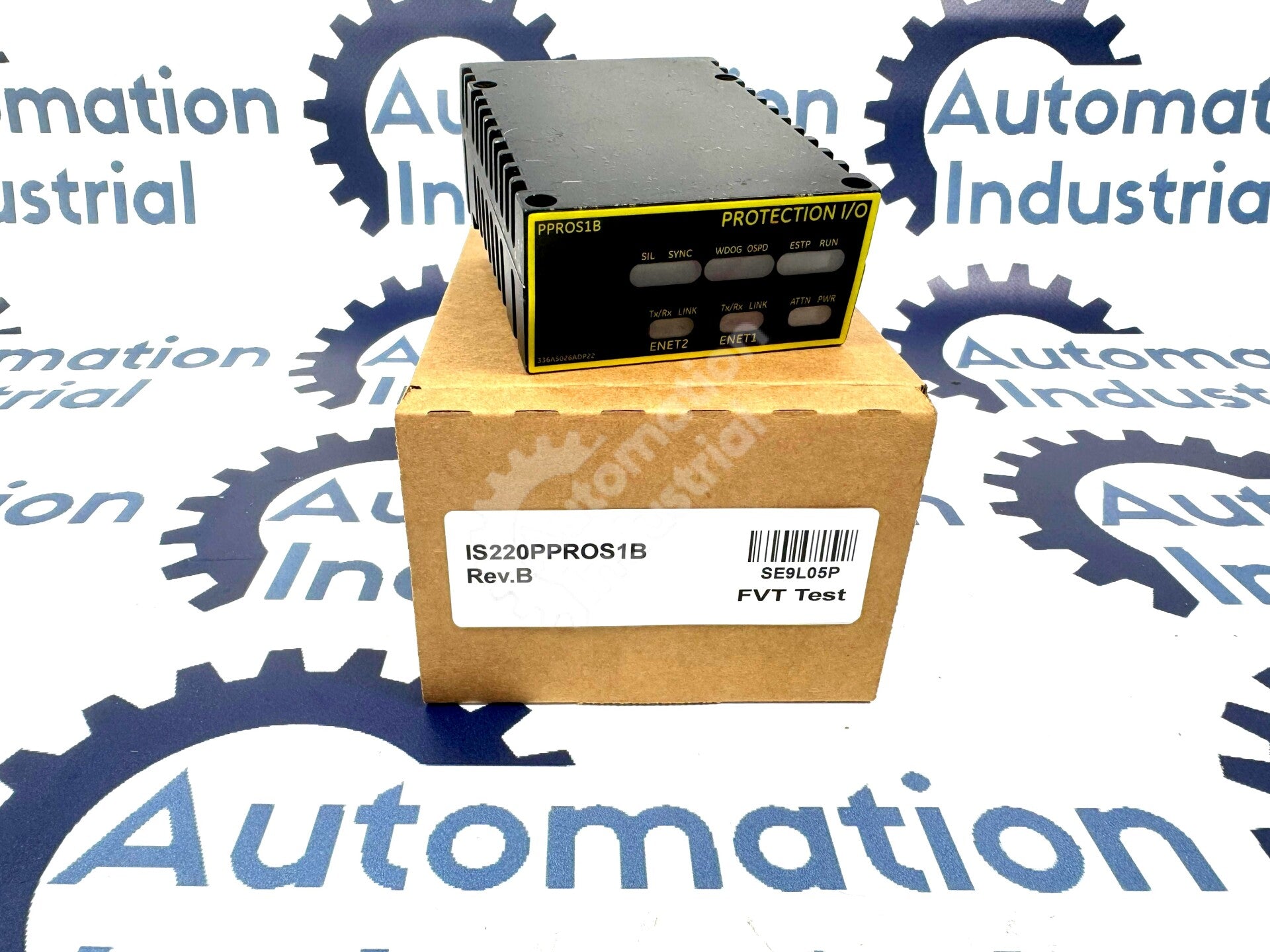

• Power and indications: the PWR/ATTN LED pair and ENET link indications quickly separate a supply or network issue from an electronics fault.

Verify with ToolboxST diagnostics and your protection procedure, and coordinate any removal with operations. Never bench-test, force, or defeat a protection pack as a shortcut.

Reading IS220PPROS1B and matching the exact revision

The designation is IS220 (Mark VIe distributed I/O platform) plus PPRO (turbine protection function) plus S1B (hardware revision and variant). The S1B uses the BPPC processor board and needs ControlST V04.07 or later; the earlier H1A used the BPPB, and the two cannot be auto-reconfigured when interchanged. Any extra trailing character on your label marks a further revision. With protection hardware, do not substitute loosely — order the exact designation installed and confirm your software version. See our GE Speedtronic Part Number Decoder for the field-by-field breakdown.

Related Mark VIe protection and trip boards

The pack, its protection terminal board, and the emergency trip board work as a unit, so source them together. Browse the GE Mark VI IS200 Boards and GE Speedtronic Turbine Control Boards collections for protection and trip boards plus the servo, analog, and discrete packs on the same IONet. If you are weighing a control-generation change, the Mark V vs Mark VI: DS200 to IS200 guide gives useful background.

Quote request essentials

To match a protection spare exactly, include:

• The full part number and suffix as printed on the label (IS220PPROS1B and any trailing revision).
• A clear nameplate photo.
• Turbine model, Mark VIe generation, and the emergency-trip board type if known.
• Quantity and urgency, including any outage window.

This unit is used, cleaned and tested, with a 1-year warranty; the exact condition wording appears in the table below.
