Description

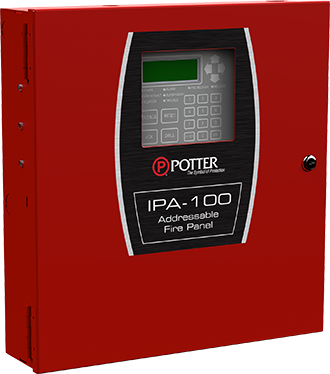

The Potter IPA-100 is an intelligent addressable fire alarm control panel designed for small to mid-size facilities. It supports up to 100 addressable devices, providing reliable detection, notification, and system monitoring in compliance with fire safety standards.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Potter |
| Category |
Fire & Life Safety |
| Part Number |
IPA-100 |
| Subcategory |
Fire Alarm Control Panel |
| Series |
IPA Series |
| System Type |
Intelligent addressable FACP |
| Device Capacity |
100 addressable devices |
| SLC Loops |
1 loop |
| Input Voltage |
120/240 V AC |
| Backup Power |
24 V DC battery support |
| Communication |
Built-in digital communicator, USB/Ethernet programming |
| Display Type |
LCD operator interface with keypad |
| Event Storage |
History log of alarms, troubles, and supervisory events |
| Mounting Style |
Wall-mounted enclosure |
| Standards |
UL Listed, NFPA 72 compliant |
| Application Use |
Schools, offices, healthcare, and commercial facilities |
| Operating Temperature |
0 °C to +49 °C |
| Weight |
Approx. 12 kg |
Information About IPA-100
The IPA-100 is part of Potter’s IPA series of intelligent fire alarm panels, engineered for flexibility and ease of use. It features a single SLC loop capable of supporting detectors, modules, and notification appliances for comprehensive system protection. The panel includes a built-in digital communicator for remote monitoring and can be programmed via USB or Ethernet connections. UL and NFPA compliant, the IPA-100 is commonly used in schools, offices, healthcare centers, and other mid-size applications requiring dependable fire alarm control.
Key Features:
- Intelligent Addressable Panel: Supports up to 100 addressable devices.
- Single SLC Loop: Provides efficient system configuration and device supervision.
- Integrated Communicator: Includes digital alarm communicator for remote monitoring.
- Flexible Programming: USB and Ethernet connectivity for simplified configuration.
- Event History Storage: Records alarm, trouble, and supervisory events.
- UL and NFPA Compliant: Meets industry standards for life safety systems.
- Compact Design: Wall-mount enclosure suitable for small to mid-size facilities.
- Reliable Operation: Built for continuous duty in commercial environments.
The IPA-100 delivers the reliability and precision required for intelligent addressable fire alarm protection.
