Description

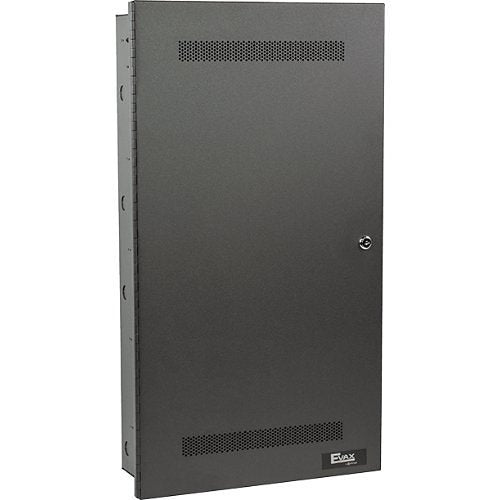

The Potter EVAX-200 Voice Evacuation System provides 200 watts of speaker power for efficient emergency communication in commercial and public buildings. Designed for integration with fire alarm control panels, the EVAX-200 ensures clear, reliable audio for voice evacuation and alert messaging. It is ideal for use in churches, auditoriums, restaurants, and other multi-zone facilities requiring supervised voice notification systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Potter |
| Category |
Fire Alarm Systems |
| Part Number |
EVAX-200 |
| Subcategory |
Voice Evacuation Systems |
| Power Output |
200 Watts |
| Input Power |
120 VAC, 60 Hz |
| Speaker Circuit Type |
25 or 70 VRMS, Class A/B field selectable |
| Amplifier Type |
100W bullet-proof amplifier (expandable) |
| Message Storage |
8 MB MP3 digital message driver |
| Zones Supported |
Configurable for general alarm or alarm by zone |
| Microphone |
Live microphone override of message and tone |
| Construction |

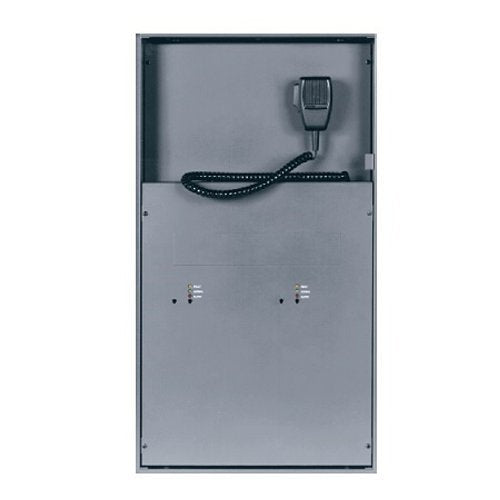

Clean dead-front with hinged, key-locked door |
| Mounting Options |
Surface or semi-flush mount |
| Compatibility |
Analog addressable system compatible |
| Enclosure Dimensions |
14.5” (W) × 27” (H) × 4” (D) |
| Certifications |
UL Listed, NFPA 72 compliant |
| Weight |
21.35 lbs |
Information About EVAX-200
The EVAX-200 is part of the Potter EVAX Series, engineered to deliver robust voice evacuation functionality with integrated digital message repeaters and power amplifiers. This unit includes a built-in 120 VAC power supply, battery charger, and live microphone override for full system control during emergencies. The EVAX-200 supports Class A/B speaker circuits and can be configured for either general alarm or alarm-by-zone operation. Its clean dead-front construction, combined with reliable solid-state technology, makes it suitable for a wide range of fire and life safety installations.
Key Features:
- High Output Power: Provides 200 watts of speaker power for clear, effective voice evacuation coverage.
- Integrated System Components: Includes digital message repeater, amplifier, power supply, and battery charger in one panel.
- Configurable Operation: Supports both general alarm and alarm-by-zone configurations for flexible application.
- Built-In MP3 Driver: Features an 8MB MP3 message driver for high-quality voice and tone playback.
- Live Microphone Control: Allows manual override of prerecorded messages for direct emergency announcements.
- Selectable Speaker Circuits: Offers 25 or 70 VRMS field-selectable Class A/B outputs.
- Supervised and Reliable: Fully supervised circuits ensure fault detection and high reliability with minimal maintenance.
- Easy Installation: Surface or semi-flush mounting with a key-locked hinged door for secure access.
The EVAX-200 delivers the reliability and precision required for dependable voice evacuation performance in critical life safety systems.
