Description

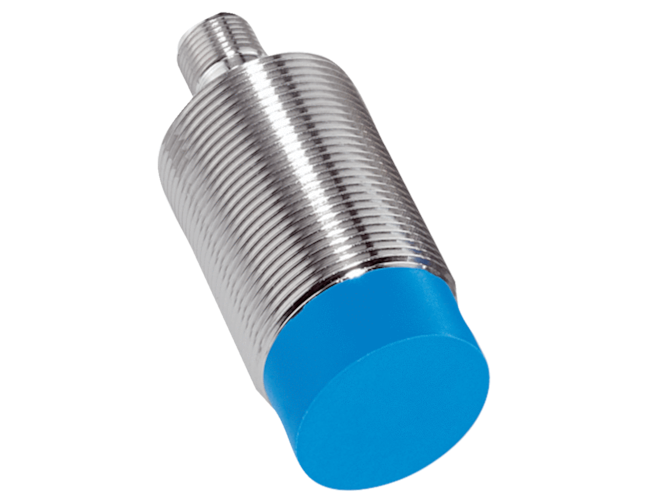

The IME30-38NPSZC0S is a robust inductive proximity sensor designed for non-contact detection tasks. With a large 38 mm sensing range and a rugged M30 brass housing, it offers reliable object detection in demanding industrial environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Sick |
| Category |
|
| Part Number |
IME30-38NPSZC0S |
| Subcategory |
Inductive Sensor |
| Sensing Range (Sn) |
38 mm |
| Safe Sensing Range (Sa) |
30.78 mm |
| Output Type |
PNP, NO |
| Installation Type |
Non-flush |
| Switching Frequency |
100 Hz |
| Electrical Wiring |
DC 3-wire |
| Voltage Drop |
≤ 2 V |
| Warm-up Time |
90 s |
| Enclosure Rating |
IP67 |
| Ambient Operating Temperature |
–25 °C to +75 °C |
| Housing Material |
Brass, nickel-plated |
| Sensing Face Material |
Plastic, PA 66 |
| Housing Length |
71 mm |
| Thread Size |
M30 x 1.5 |
| Thread Length |
41 mm |
| Weight |
1.23 lbs |
Information About IME30-38NPSZC0S
The IME30-38NPSZC0S is a 30 mm inductive proximity sensor from SICK, featuring a standard metric housing with M30 x 1.5 threading. It provides a maximum sensing range of 38 mm, with a safe operating range of 30.78 mm, and is optimized for non-flush mounting. Its PNP, normally open output ensures easy integration with most control systems, while the M12, 4-pin male connector simplifies installation. Engineered with DC 3-wire wiring, IP67 protection, and rugged brass construction, this sensor is ideal for harsh industrial settings that demand both extended range and environmental resilience.
Key Features:
- Extended 38 mm Sensing Range: Significantly longer detection range compared to standard inductive sensors, allowing for greater flexibility in machine layout and target positioning.
- Non-Flush Installation Design: Enables the sensor to detect metallic objects without being recessed in metal, ideal for applications where mounting depth or field expansion is critical.
- PNP Normally Open Output: Provides a positive switching signal upon target detection, suitable for a wide variety of industrial control systems and PLC inputs.
- Fast Switching Frequency: Operates at 100 Hz, ensuring reliable and fast detection even in dynamic applications with moving targets.
- High Repeatability: With a reproducibility of ≤ 5%, it guarantees consistent detection accuracy in repetitive cycles and precision tasks.
- Strong Electrical Protection Features: Integrated short-circuit protection and power-up pulse suppression protect both the sensor and downstream electronics.
- IP67 Enclosure Rating: Completely protected against dust and water immersion up to 1 meter, ensuring reliable use in wet or dusty industrial environments.
- Wide Operating Temperature Range: Functions reliably from –25 °C to +75 °C, suitable for a broad range of indoor and outdoor industrial applications.
- Rugged Brass Housing with Nickel Plating: Offers high resistance to mechanical impact, corrosion, and harsh chemicals typically found in factory environments.
The IME30-38NPSZC0S is engineered for high reliability and repeatability in automated processes, making it ideal for position sensing, counting, and presence detection in manufacturing and logistics.
