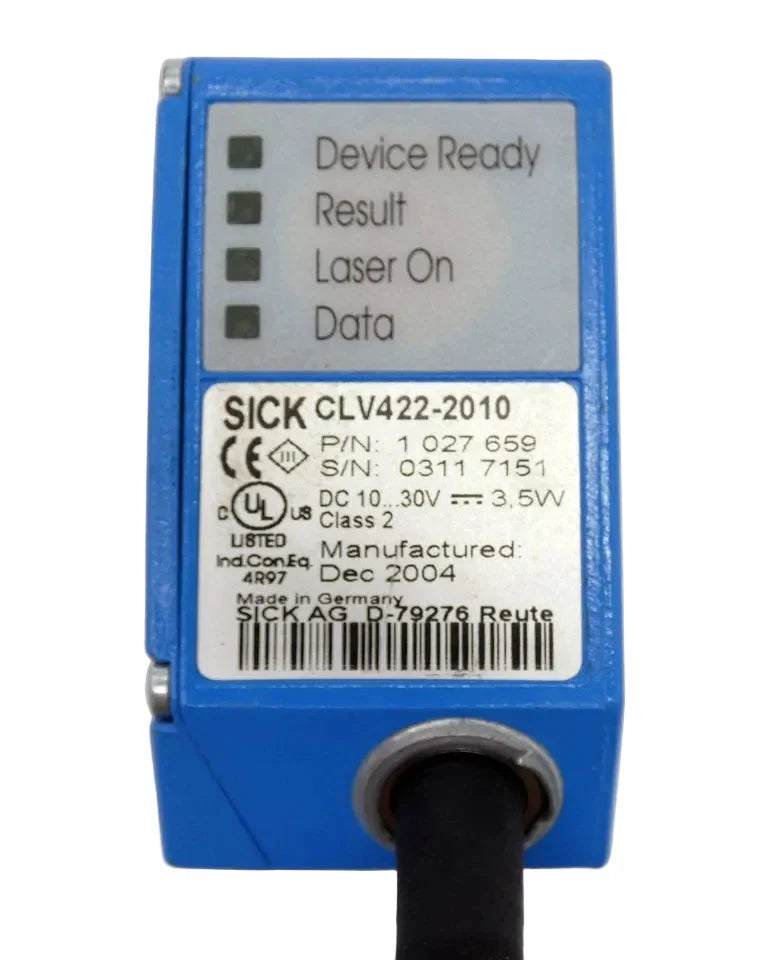

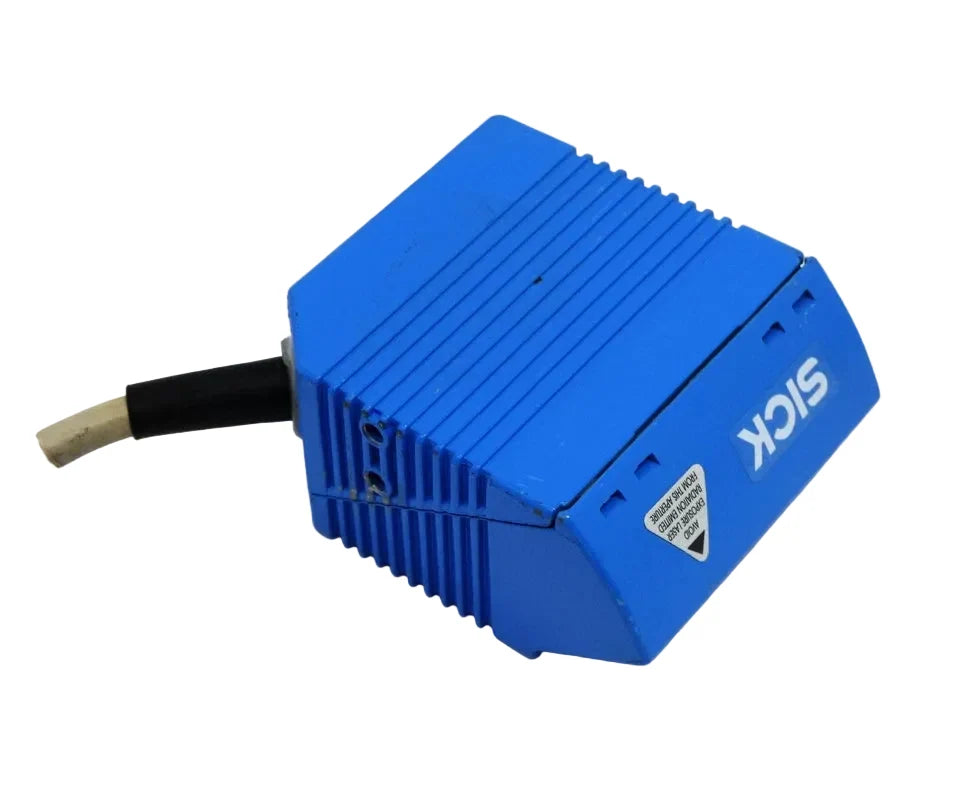

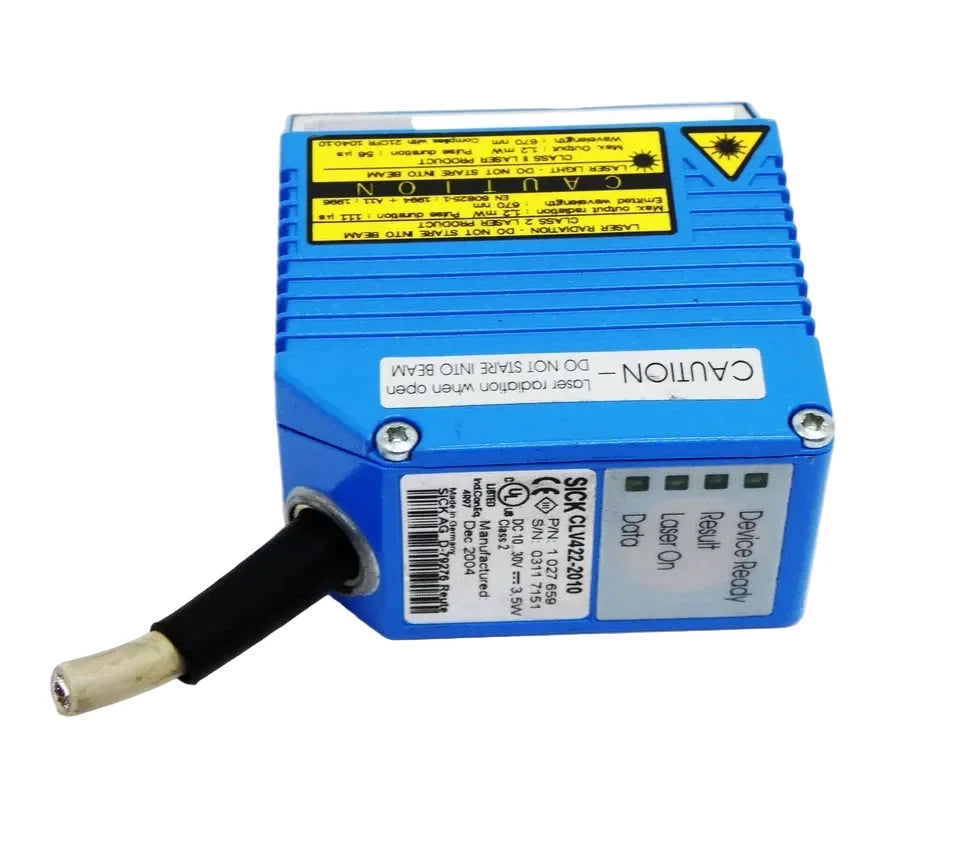

Description
The SICK CLV422-2010 is a compact bar code scanner designed for reliable identification in industrial automation and material handling systems. It uses visible red light technology with fixed-focus optics to ensure consistent reading performance across defined distances.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
SICK |
| Category |
Identification Systems |
| Part Number |
CLV422-2010 |
| Subcategory |
Bar Code Scanners |
| Product Family |
CLV422 |
| Scanner Design |
Line Scanner |
| Version |
High Density |
| Reading Field |
Side (105°) |
| Optical Focus |
Fixed Focus |
| Light Source |
Visible Red Light |
| Laser Class |
Class 2 (DIN EN 60825-1) |
| Reading Distance |
55 mm to 200 mm |
| Code Resolution |
0.15 mm to 0.5 mm |
| Scanning Frequency |
400 Hz to 1,200 Hz |
| Aperture Angle |
≤ 50° |
| Supply Voltage |
10–30 VDC |
| Power Consumption |
3.5 W |
| Connection Type |
15-pin D-Sub HD Male Connector (0.9 m Cable) |
| Housing Material |
Die-Cast Zinc |
| Housing Color |
Light Blue (RAL 5012) |
| Ingress Protection |
IP65 |
| Protection Class |
Class III |
| MTBF |
20,000 h |
| Operating Temperature |
0°C to +40°C |
| Storage Temperature |
-20°C to +70°C |
| Dimensions (L × W × H) |
72 × 62.7 × 35.2 mm |
| Weight |
0.7 lbs |
Information About CLV422-2010
The CLV422-2010 is part of SICK’s CLV422 family of industrial bar code scanners, developed for dependable code reading in automated production and logistics environments. This model is optimized for high-density codes, offering precise resolution and stable scanning performance. It features a fixed-focus optical system with side-reading capability, enabling flexible mounting configurations. The robust zinc die-cast housing and IP65 rating support long-term operation in industrial conditions.
Key Features
- High-Density Code Reading Capability: Designed to accurately read small and dense bar codes with resolutions down to 0.15 mm.
- Side Reading Field Configuration: 105° reading field allows flexible installation and reliable scanning from the side.
- Wide Scanning Frequency Range: Supports scanning speeds up to 1,200 Hz for high-throughput identification tasks.
- Visible Red Light Source: Provides stable illumination and easy alignment during installation and setup.
- Fixed Focus Optical Design: Ensures consistent reading performance within the specified distance range.
- Rugged Industrial Housing: Die-cast zinc enclosure with IP65 protection supports use in harsh environments.
- Wide Supply Voltage Range: Operates from 10 to 30 VDC for compatibility with standard industrial power systems.
The CLV422-2010 delivers the reliability and precision required for industrial bar code identification and tracking applications.
