Description

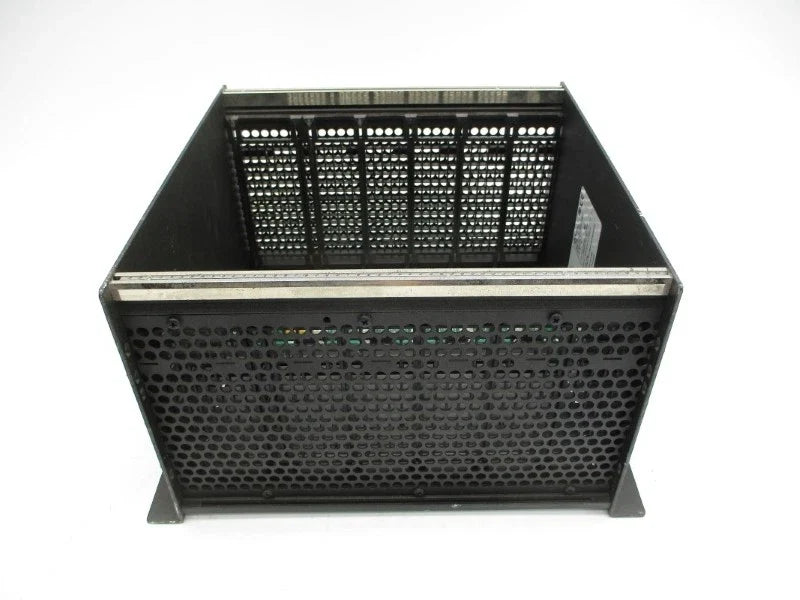

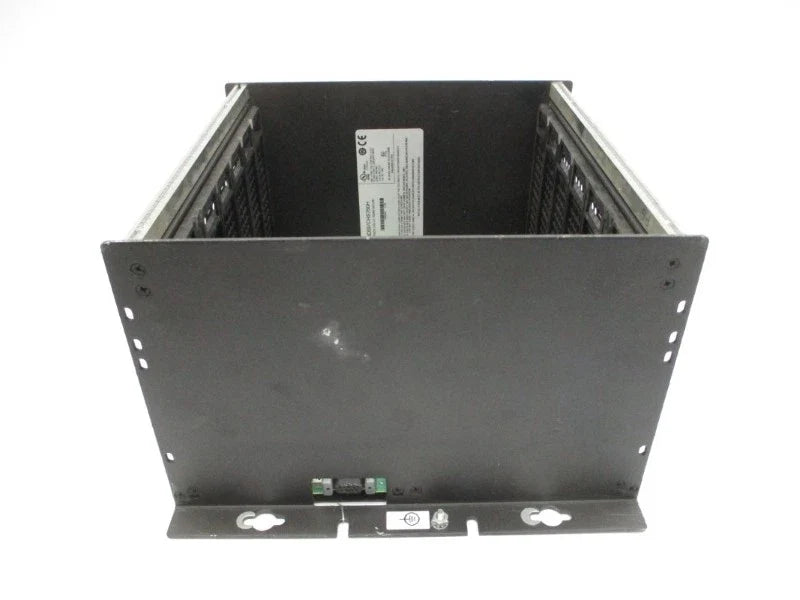

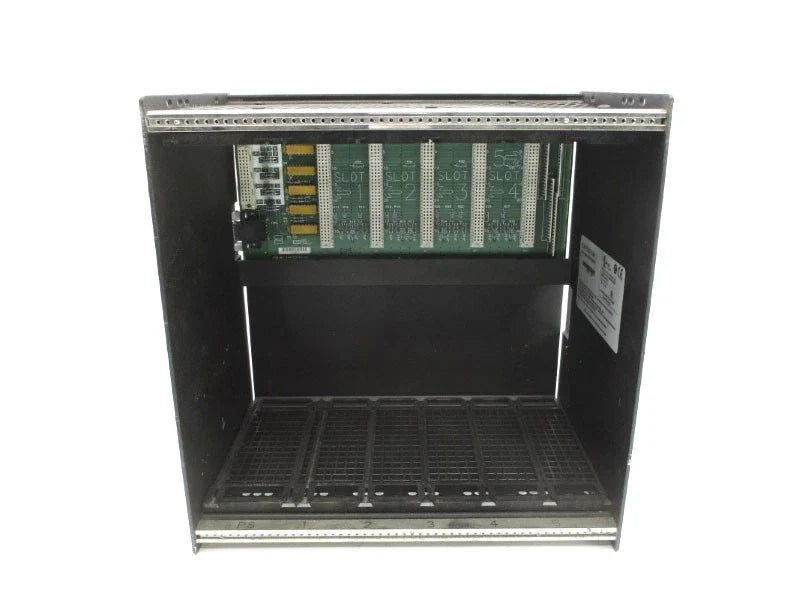

The Fanuc IC697CHS750 is a Series 90-70 rear mount rack designed to house and interconnect PLC modules within industrial control systems. This 5-slot standard rack supports double-width modules and provides 5 VDC backplane power distribution. It is engineered for panel-mounted installations requiring reliable module support and structured PLC system expansion.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
GE Fanuc Emerson |
| Category |
Industrial Automation |
| Part Number |
IC697CHS750 |
| Subcategory |
PLC Racks |
| Product Line |
Series 90-70 |
| Module Type |
Standard Rack |
| Mounting Location |
Rear (Panel Mount) |
| Number of Slots |
5 (Plus Power Supply Slot) |
| Rack Type |
Double Width |
| Backplane Voltage |
5 VDC |
| Internal Current |
20 Amperes |
| Cooling Method |
Convection Cooling |
| Enclosure Type |
Open Enclosure |
| Dimensions (H x W x D) |
11.15 x 12.60 x 7.5 in. |
| Depth |
254 mm |
| Compatibility |
IC697 PLC Series Modules |
| Weight |
8.88 lbs (4.03 kg) |
Information About IC697CHS750
The IC697CHS750 is a Series 90-70 rear mounting PLC rack manufactured by GE Fanuc Emerson for IC697 PLC systems. It features five slots plus a dedicated power supply position, accommodating a range of CPU, I/O, and specialty modules compatible with the IC697 product line. Designed as a double-width rack with rear (panel) mounting configuration, it enables structured cabinet layout and efficient wiring access. The unit operates with an internal 5 VDC backplane rated at 20 amps and utilizes convection cooling within an open enclosure format for dependable industrial operation.
Key Features:
- Series 90-70 Platform: Designed for GE Fanuc IC697 PLC system architecture.
- Five-Slot Configuration: Supports up to five PLC modules plus power supply.
- Rear Panel Mounting: Enables secure installation within control cabinets.
- Double-Width Rack Design: Accommodates compatible double-width PLC modules.
- 5 VDC Backplane Power: Provides 20 A internal current distribution.
- Broad Module Compatibility: Accepts all IC697 PLC module types.
- Convection Cooling System: Supports passive thermal management.
- Open Enclosure Construction: Designed for enclosed panel installations.
The IC697CHS750 delivers the reliability and precision required for structured PLC system expansion and industrial control cabinet integration.
