Description

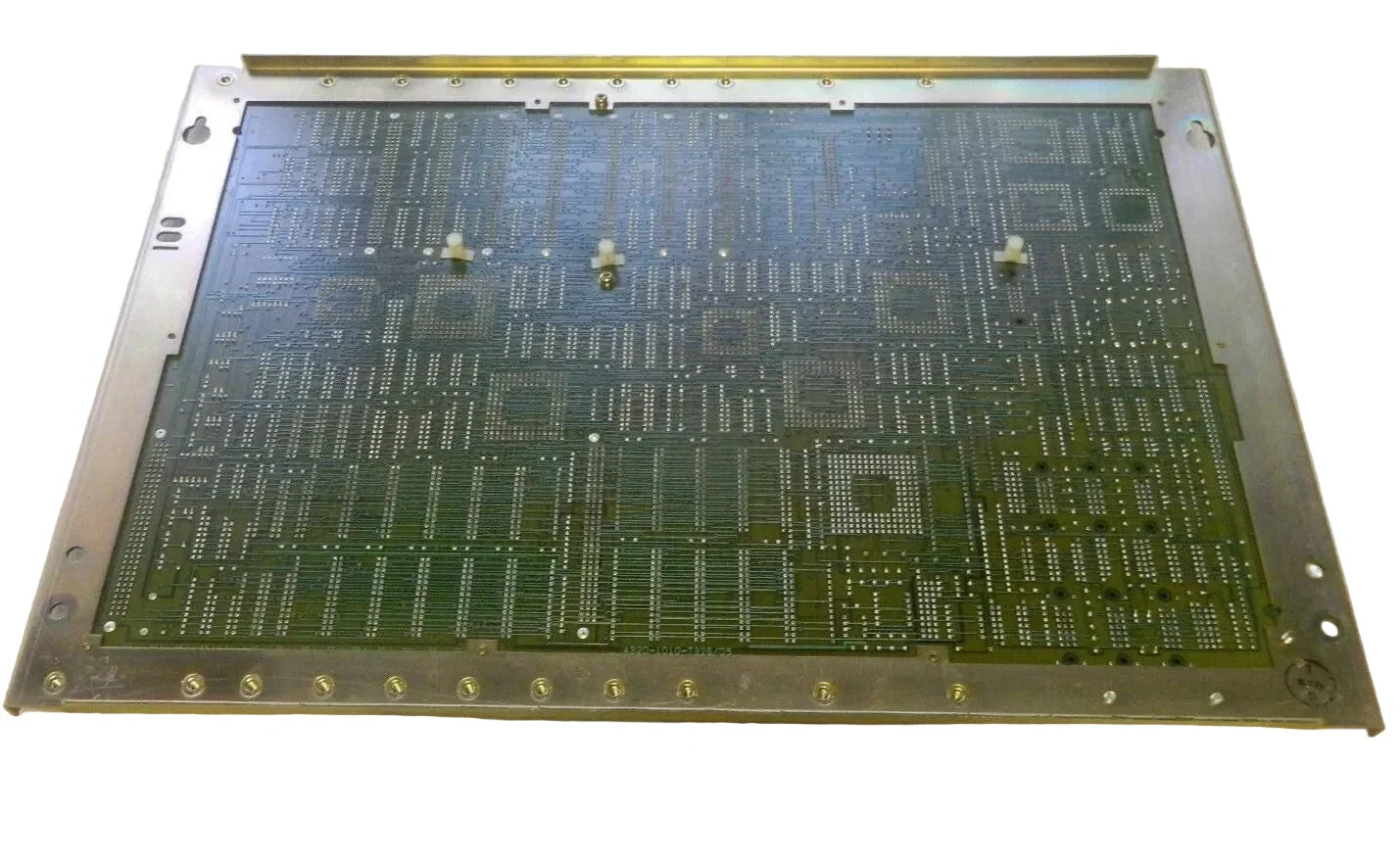

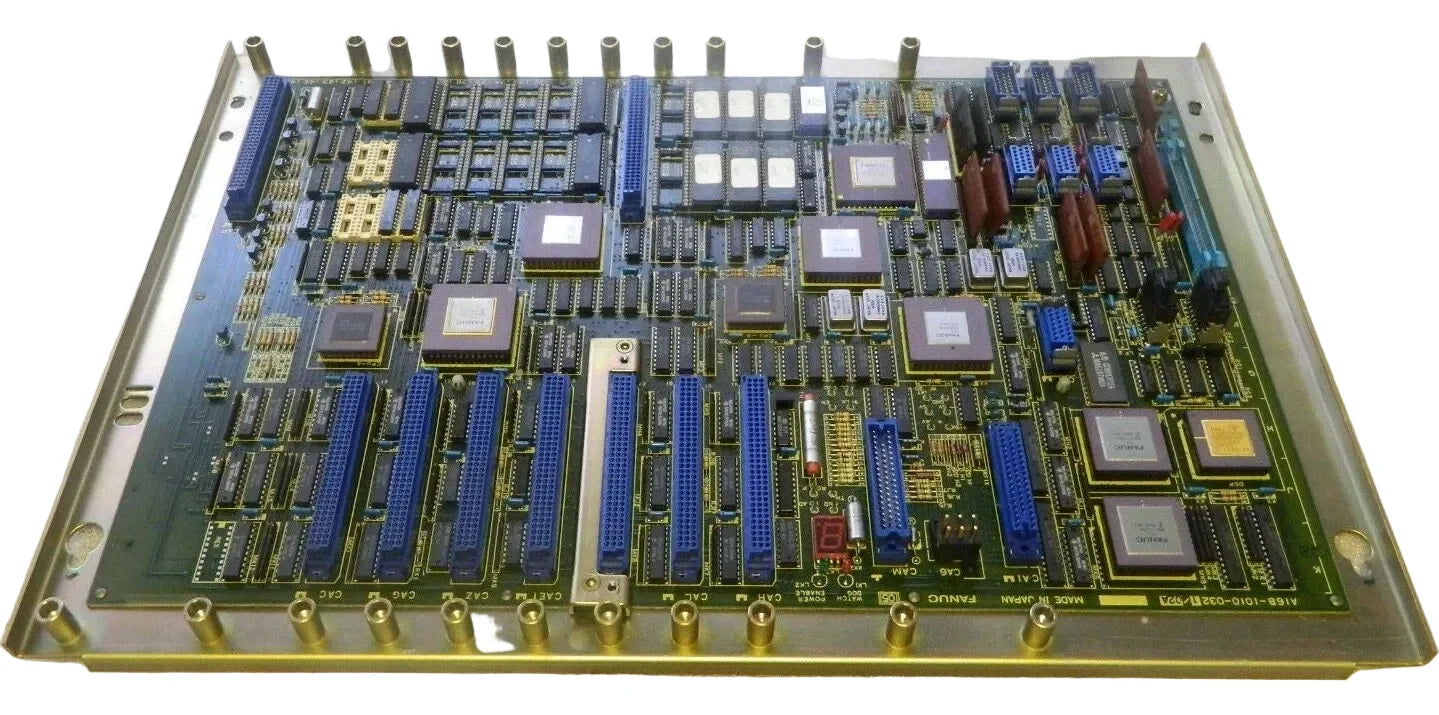

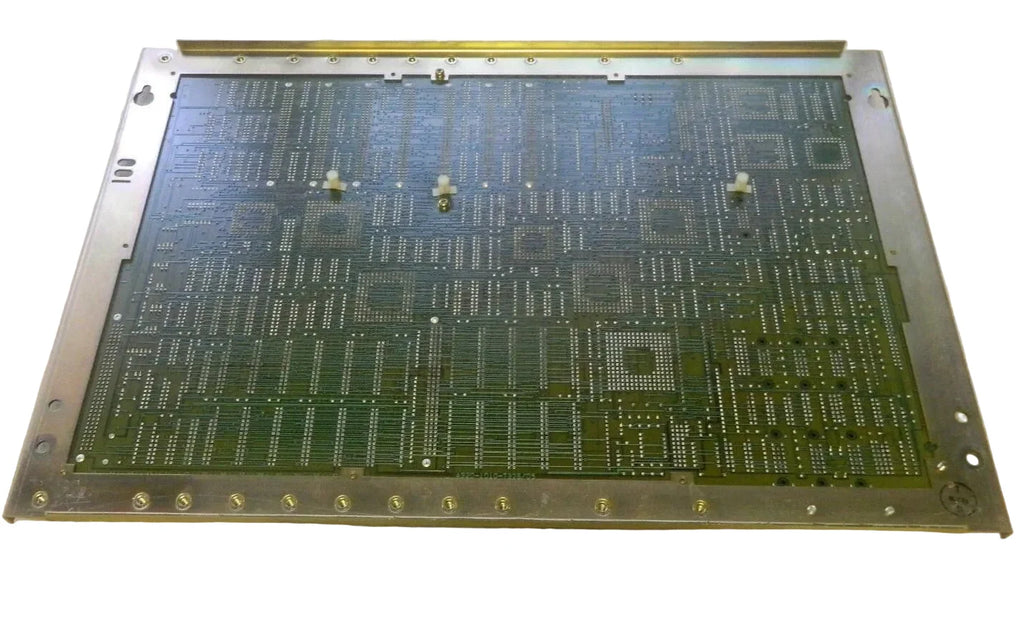

The FANUC A16B-1010-0321 is a digital dual-axis circuit PCB designed for CNC control systems. It functions as a main CPU/control board within Series 16 configurations and supports integration with 9-inch CRT and 14-inch color monitors. Engineered for industrial environments, it provides stable digital control for two-axis machine operations.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
FANUC |
| Category |
Controls & Indicators |
| Part Number |
A16B-1010-0321 |
| Subcategory |
CPU/Control Board |
| Product Type |
Digital Circuit PCB |
| Series |
Series 16 |
| Axis Support |
Dual |
| Board Type |
Digital |
| Compatible Monitors |
9-inch CRT; 14-inch color |
| Protection Class |
IP20 |
| Operating Temperature |
0°C to 60°C |
| Operating Humidity |
Up to 80% RH (non-condensing) |
| Maximum Operating Altitude |
1000 meters |
| Application |
CNC Machines |
| Weight |
5.86 lbs |
Information About A16B-1010-0321
The A16B-1010-0321 belongs to the FANUC Series 16 platform and serves as a digital master board for CNC machinery. It enables dual-axis control and is commonly identified as a main CPU or digital 2-axis master board within the control system. The board operates within a temperature range of 0°C to 60°C and supports non-condensing humidity levels up to 80% RH. Designed for cabinet installation, it carries an IP20 protection rating and is suitable for operation at altitudes up to 1000 meters without derating.
Key Features:
-
Dual-Axis Digital Control: Supports two-axis CNC machine operation.
-
Series 16 Compatibility: Designed for FANUC Series 16 control systems.
-
Main CPU/Control Board: Functions as a central digital processing board.
-
Monitor Support: Compatible with 9-inch CRT and 14-inch color displays.
-
Industrial Temperature Range: Operates from 0°C to 60°C.
-
IP20 Protection Rating: Provides protection against solid object ingress.
-
80% RH Humidity Tolerance: Suitable for non-condensing industrial environments.
-
Altitude Rating to 1000 m: Maintains performance without derating.
The A16B-1010-0321 delivers the reliability and precision required for CNC digital control and dual-axis machine applications.
