IC3600SIXM1A1A Interface Card: role in the Mark I-II rack

The IC3600SIXM1A1A is an interface card from the IC3600SIX group of GE's Speedtronic Mark I / Mark II turbine control system, GE's earliest Speedtronic generation. Its role is to provide a signal interface within the control rack — the connection point through which signals pass between the Speedtronic hardware and the circuits it links to. It is the “M” member of the SIX group, separate from the SIXJ power selector, the SIXK power sensor and the SIXL relay module extender, so the right card is identified by that letter and its suffix rather than by the SIX prefix alone.

Like the other SIX-group boards, it is a plug-in card with a numbered edge connector and connection points for the signals it carries. Because its job is to connect rather than to compute, the way it fails — and the way you should diagnose it — is dominated by connections.

Reseat and check the link before swapping the interface

An interface card is one of the boards most often replaced when the real fault is on the other side of the interface. Rule out the connections and the linked circuit first:

• Reseat and clean both the card and its connections. The edge connector and any signal jacks are the first place intermittent faults appear on a card whose purpose is connection. Clean and reseat before anything else.
• Check both sides of the interface. Verify the signals arriving from the rack side and the circuit on the other side. A problem in the linked device or wiring imitates a failed interface card.
• Trace a signal through. Where you can, confirm a known signal passes cleanly across the card. That single test usually settles whether the interface itself is at fault.
• Inspect the backplane slot. A damaged or contaminated rack slot produces the same symptoms as a bad card; rule it out before ordering.

Treating the interface as a connection problem until proven otherwise keeps a scarce card in stock and points you at the true fault sooner.

Breaking down the IC3600SIXM1A1A part number

IC3600 is the Mark I / Mark II card series, SIX the group and M this specific interface card, distinct from the J, K and L cards. 1A1A is the revision or dash detail to be matched with the base number. With the SIX group covering several unrelated functions, always confirm both the letter after SIX and the full suffix. See the GE Speedtronic Part Number Decoder for the full method.

Related interface and selector cards in the SIX group

The SIXM belongs with the SIXJ power supply selector, the SIXK power sensor and the SIXL relay module extender. Because listings for these boards are sometimes mislabeled from one another, always verify by the complete part number, not the description. You will find the group in our GE Mark I-II IC3600 Cards collection, and the wider selection in GE Speedtronic Turbine Control Boards. This is Mark I-II hardware and does not interchange with later Speedtronic generations, which introduced the triple-redundant R/S/T voting architecture that this early era predates.

What we need to prepare your quote

To match the correct interface card, please send:

• The complete part number and suffix as printed on the board, for example IC3600SIXM1A1A.
• A photo of the card label and the board where possible.
• Turbine model and Speedtronic generation (Mark I or Mark II).
• Quantity and your required lead time.

Request a quote for the IC3600SIXM1A1A

This IC3600SIXM1A1A is a used card, cleaned and tested. Click Request a Quote and we will reply within 24 hours. We ship worldwide DDP, accept purchase orders from qualified organizations, and can confirm the exact SIX-group card you need from a photo of the label.

General Information about the Product
Part Number	IC3600SIXM1A1A Mark I-II IC3600

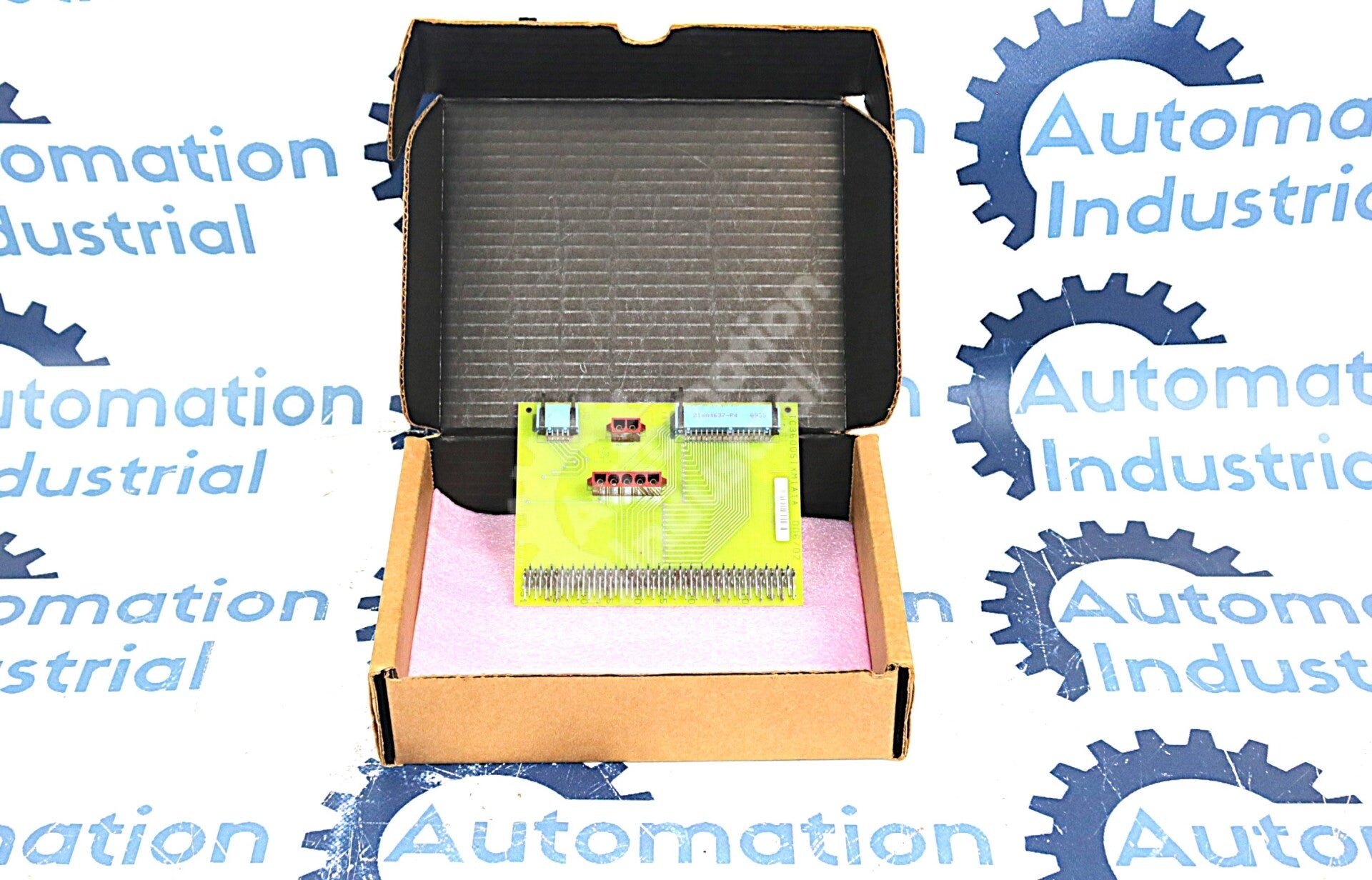

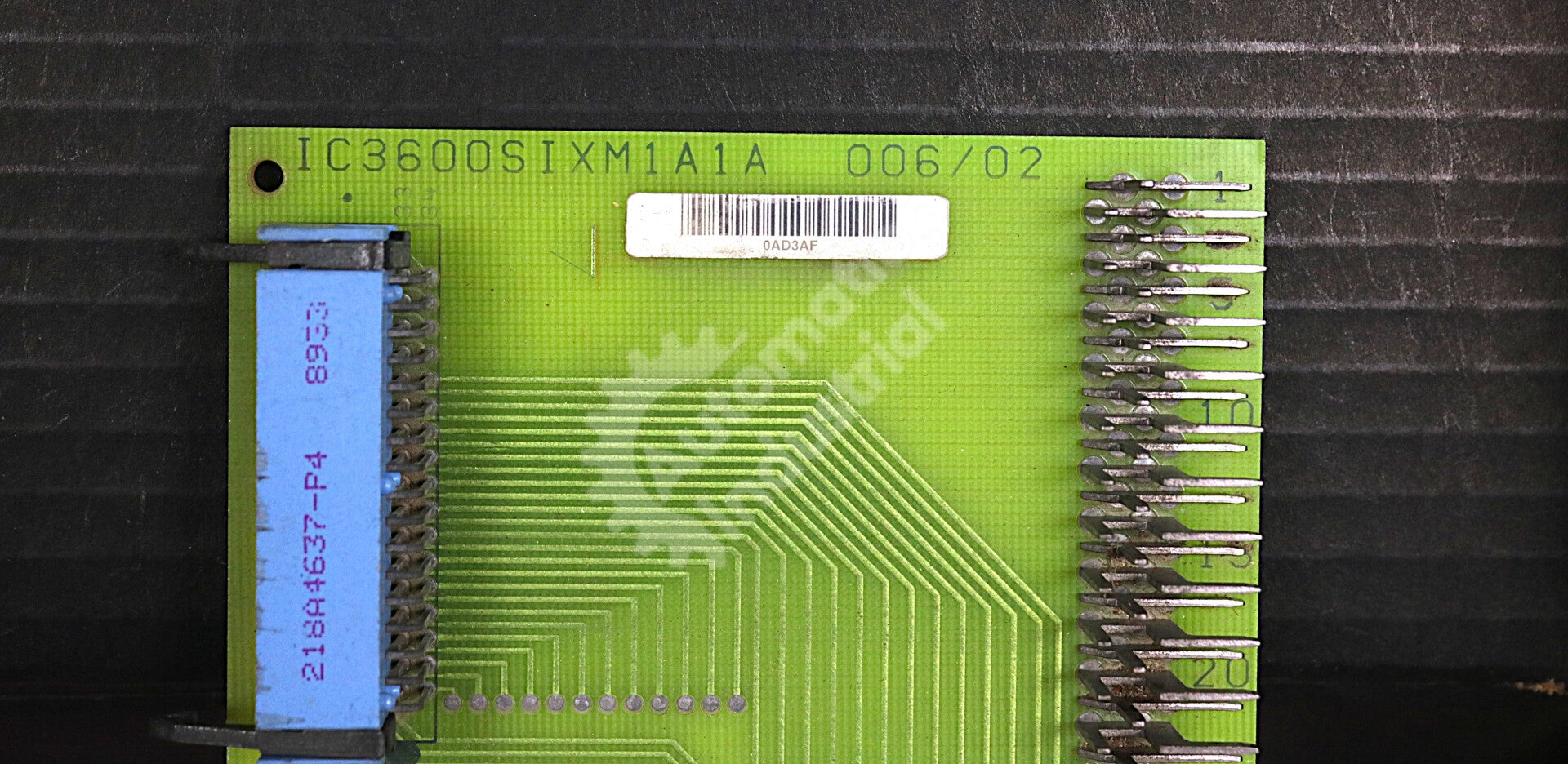

Description	IC3600SIXM1A1A By GE Speedtronic IC3600SIXM Interface Card
Condition	used Clean and Tested With 1 Year Warranty.
