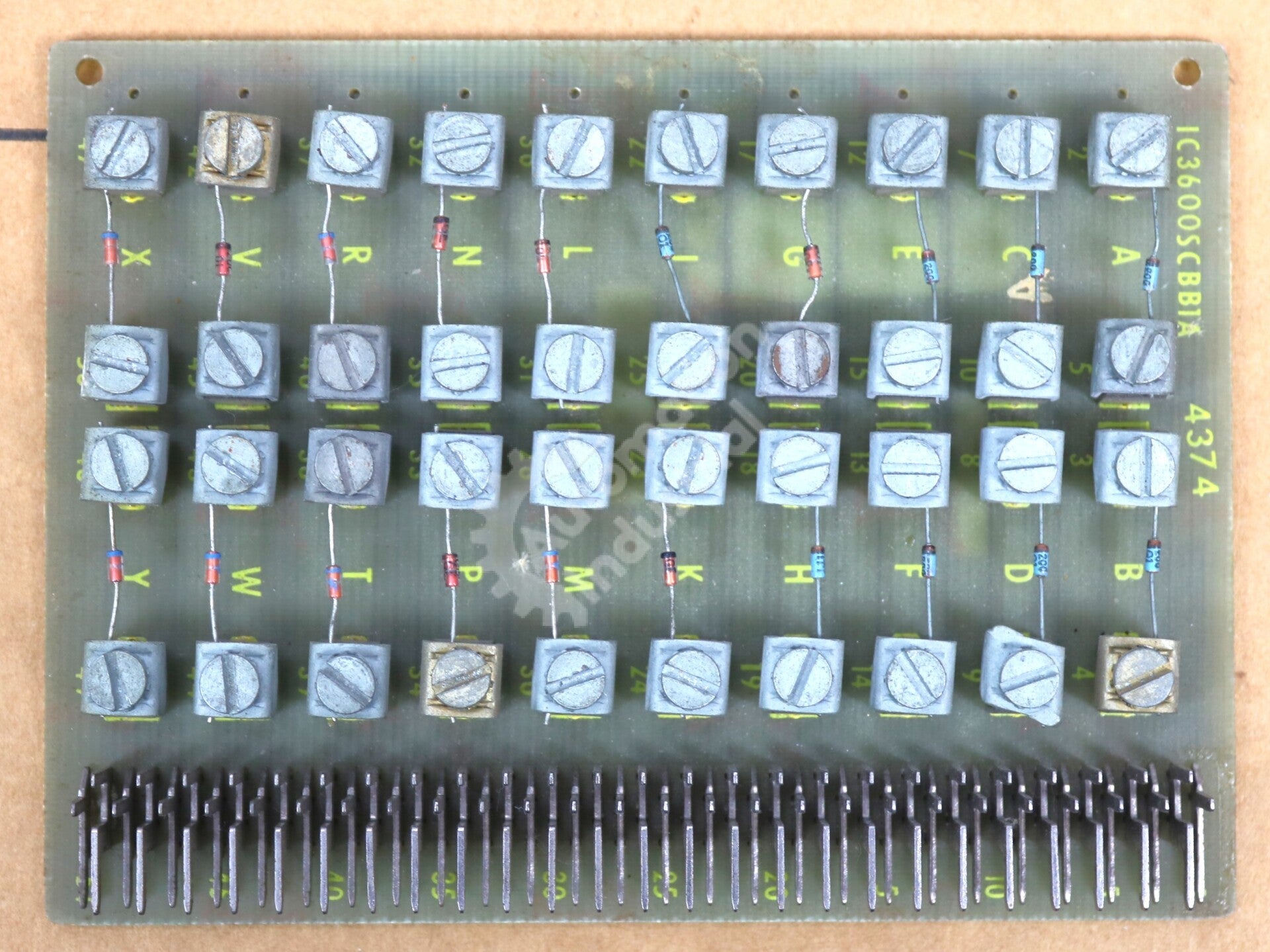

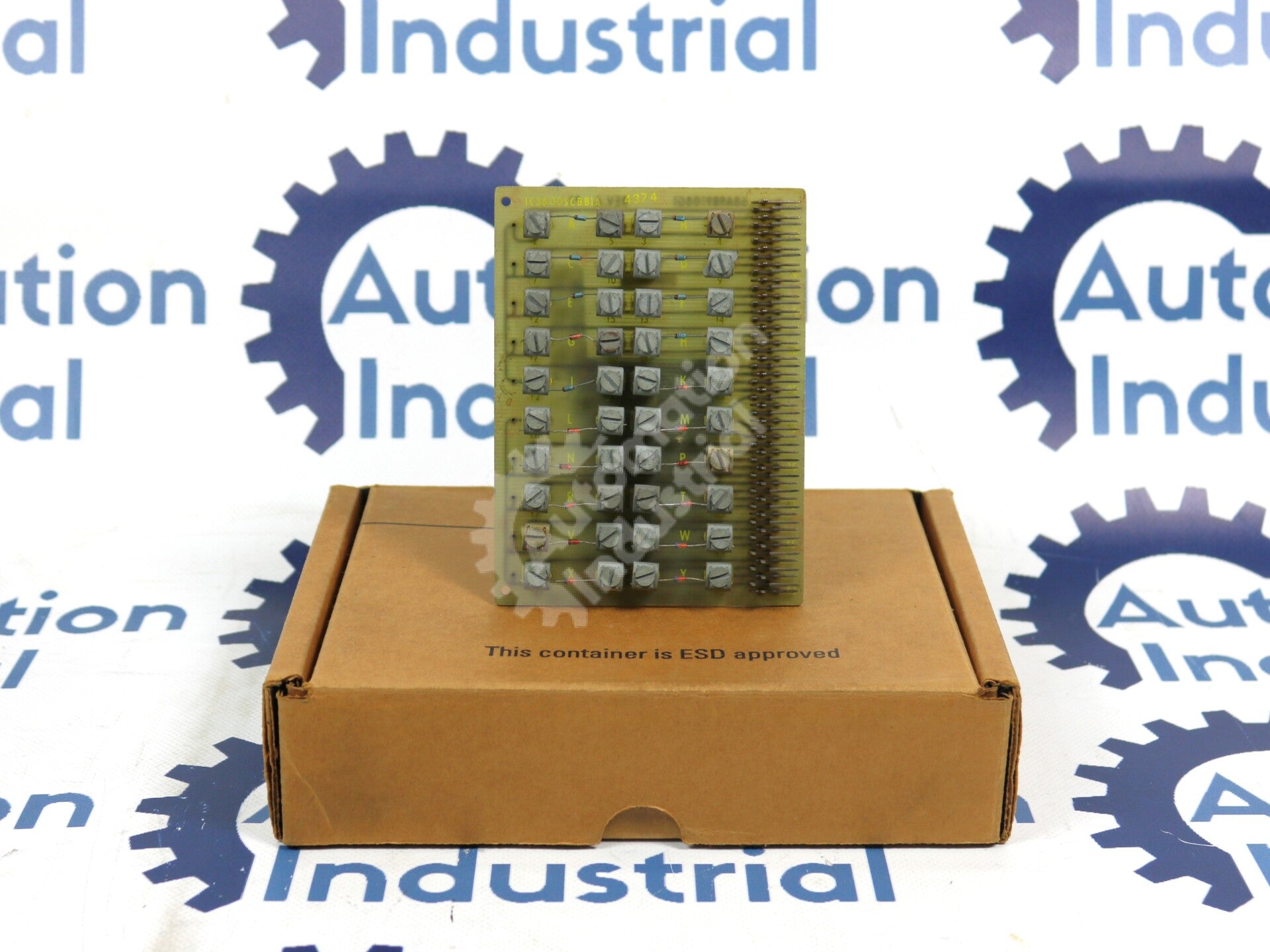

IC3600SCBB1A: Terminal / Interconnection Card for Speedtronic Mark I-II

The IC3600SCBB1A is referenced by industrial-parts suppliers as a terminal card for GE's Mark I / Mark II Speedtronic (IC3600) turbine control system, and is offered here clean, tested and used. Although it shares the "SCB" prefix with the SCBA and SCBN boards, its function is its own the terminal and interconnection role described below.

The Job of a Terminal Card in the Turbine Control Panel

Supplier references describe the SCBB as providing signal termination and interconnection within the Mark I-II panel in other words, a structured landing point where control and signal wiring is terminated and distributed between other boards and the rest of the cabinet. Boards of this type are largely about reliable connection rather than active signal processing: they organize and route the wiring that ties the plug-in cards together. We describe the SCBB at that functional level and avoid asserting electrical specifics that public documentation does not confirm.

Wiring and Termination Faults That Look Like a Bad Board

With a termination and interconnection board, the fault you are chasing is very often in the connection, not the board itself:

• Check the terminations. Inspect for loose, corroded or oxidized terminals; a single bad termination can drop or intermittently break a signal.
• Continuity through the board. Since the board's role is interconnection, verify continuity across the relevant paths before assuming it has failed.
• Mating connectors and seating. Reseat the board and clean the edge connector; corrosion here mimics a dead board.
• Verify the boards on each side. Confirm the source and destination cards are healthy so you are not blaming the interconnect for an upstream problem.
• Field wiring. Trace the panel and field wiring landing on the board for damage.

Because a terminal card is mostly passive interconnect, a methodical continuity and connection check usually finds the fault faster than a straight swap.

Why the SCB Suffix Letter Changes the Card's Function

The SCB group is a good example of why you cannot order by family alone: the SCBA is a component board, the SCBB a terminal and interconnection card, and the SCBN an interface board assembly three different jobs under one prefix. In IC3600SCBB1A, "IC3600SCBB" fixes the function and "1A" is the revision. Match the full number, letter included. The GE Speedtronic Part Number Decoder shows how the fields break down.

Boards the SCBB Interconnects With

As an interconnection card, the SCBB ties together other Mark I-II boards across the panel logic, analog, servo and power-supply cards in the same system. To match surrounding hardware, browse our GE Mark I-II IC3600 Cards collection and the full GE Speedtronic Turbine Control Boards range.

Details for a Precise SCBB1A Quote

Send the complete part number (IC3600SCBB1A), the revision on the board, a photo of the label and both sides if possible, your turbine model and Speedtronic generation, the quantity, and your urgency. For interconnection boards, a photo showing the terminals and any markings is particularly useful.

Request Your IC3600SCBB1A Quote

We ship worldwide on DDP terms and accept purchase orders. Use Request a Quote with your details and we will reply within 24 hours with availability and condition for the IC3600SCBB1A.

General Information about the Product
Part Number	IC3600SCBB1A Mark I-II IC3600
Description	IC3600SCBB1A By General Electric IC3600SCBB PCB Universal Component Card
Condition	used Clean and Tested. With 1 Year Warranty.
