Description

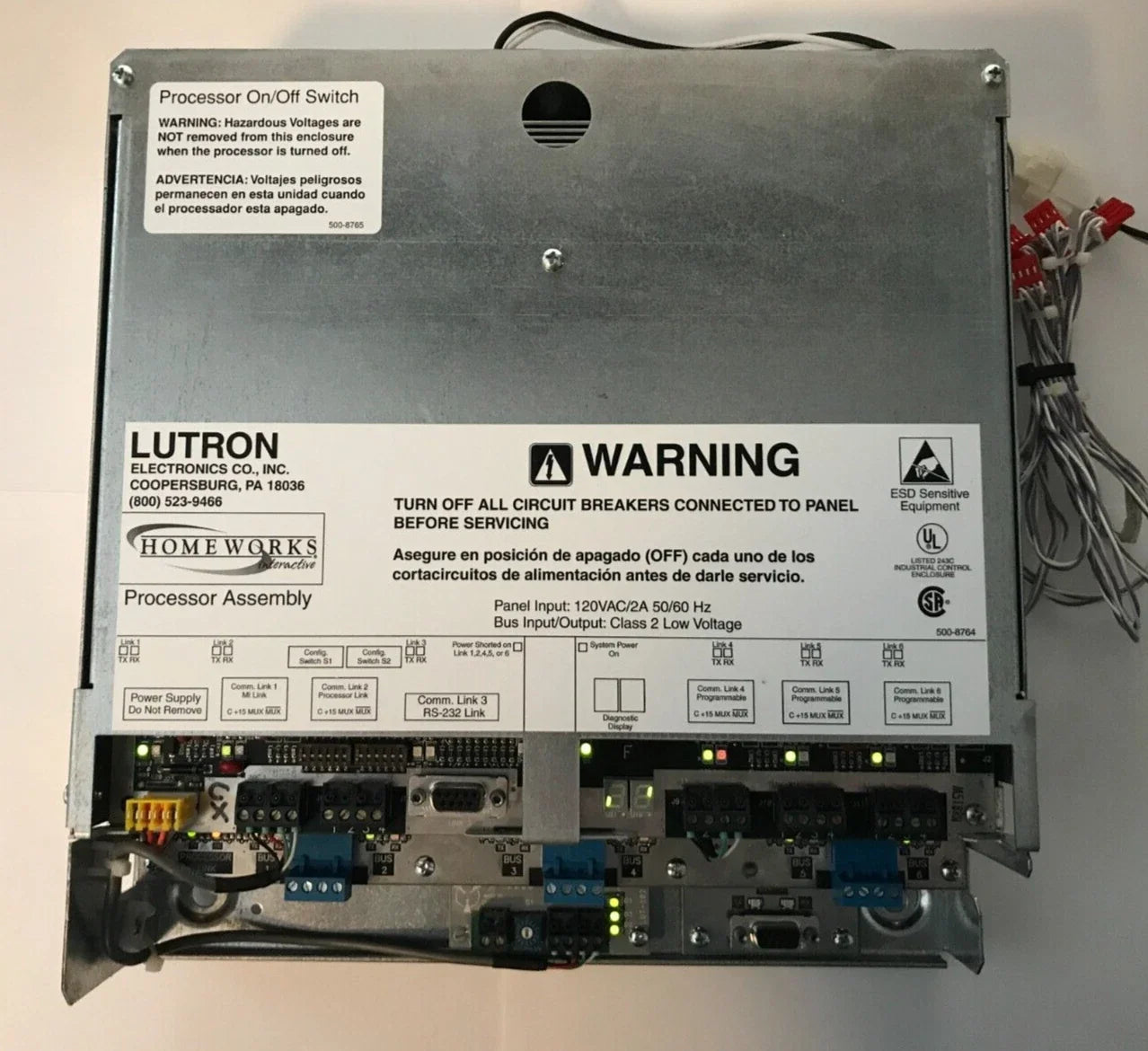

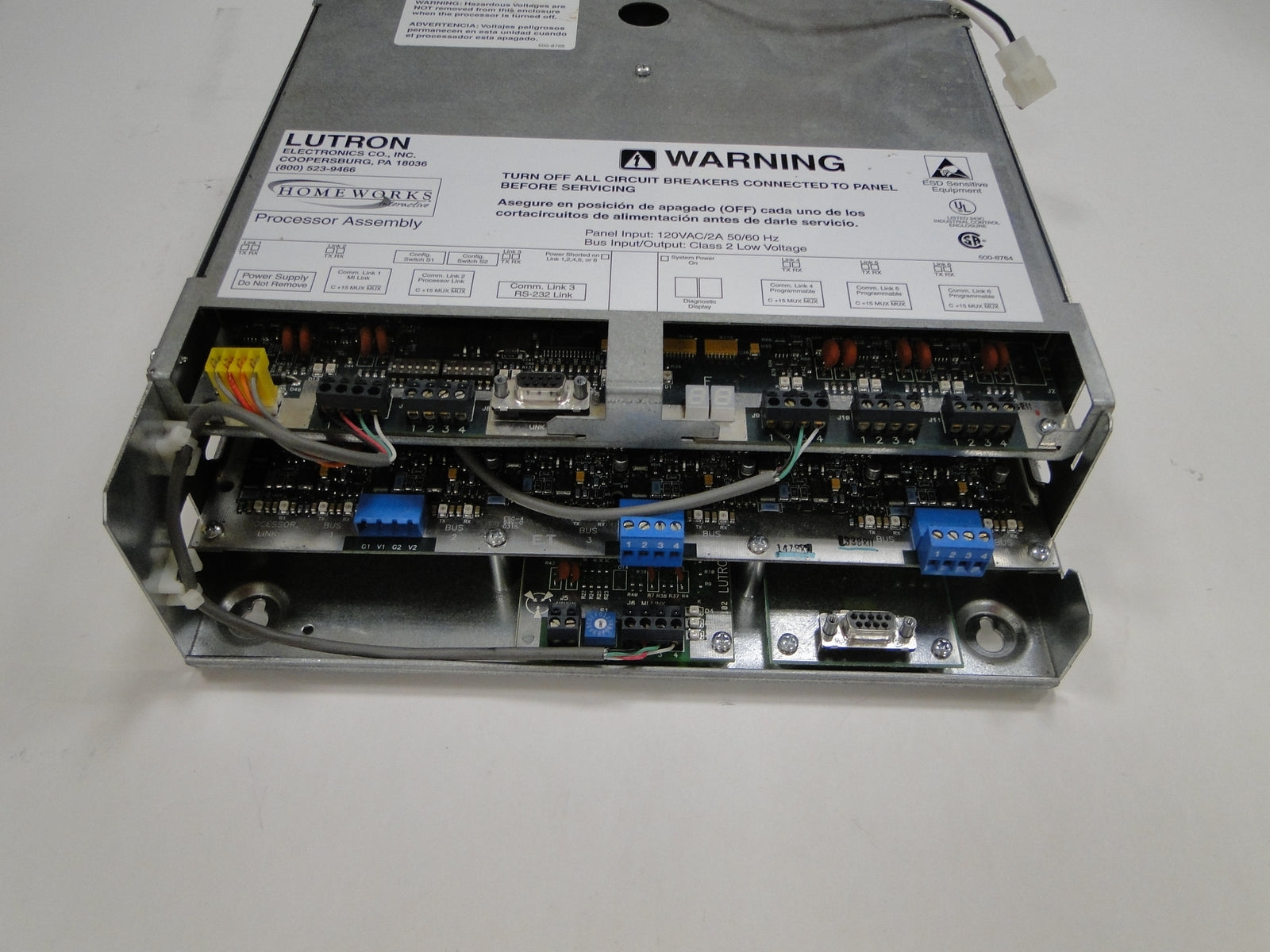

The HWI-PM-H48-120 is a wired lighting processor that mounts securely in an enclosure to manage HomeWorks lighting systems. It integrates multiple communication links for dimmer hubs, keypads, and inter-processor connections. This processor supports manual override and ensures reliable power retention during outages.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Lutron |
| Category |
|
| Part Number |
HWI-PM-H48-120 |
| Subcategory |
Processors |
| Mounting |
Enclosure, three-screw install |
| Compatible Enclosure |
HWI-PNL-8 |
| Communication Links |
Links 1, 2, 3, 4, 5, 6, 7 (configurable) |
| Link Assignability |
Links 4, 5, 6 configurable for Keypad, GRAFIK Eye, or H48 |
| Power Input |
Factory-installed power feed harness
|
| Serial Interface |
RS232 via DB9 connectors |
| Manual Override |
Toggle switch with wiring support |
| Battery Backup |
Yes, supports memory and timeclock |
| Cable Length Support |
LT-1 terminators for >50 feet cable runs |
| Weight |
1 lb. (0.45kg) |
Information About HWI-PM-H48-120
The HWI-PM-H48-120 is part of Lutron’s HomeWorks Wired Processor series, built for flexible installation inside HWI-PNL-8 enclosures. It is compatible with various HomeWorks modules including dimmer hubs and keypads, supporting extended control over lighting systems. Key technologies include configurable communication links and battery-backed memory to maintain settings during power interruptions. The processor is programmed and configured via the HomeWorks Utility software.
Key Features:
- Enclosure Mounting: Installs in HWI-PNL-8 using three screws for secure placement.
- Multiple Communication Links: Supports dimmer hubs, keypads, GRAFIK Eye presets, and inter-processor communication.
- Configurable Link Assignments: Links 4, 5, and 6 can be assigned for keypads, GRAFIK Eye, or H48 modules.
- Manual Override Support: Provides toggle switch functionality to manually control connected modules.
- Battery-Backed Memory: Maintains timeclock and settings during power outages.
- Power Input Harness: Connects easily to factory-installed power feed harnesses inside enclosures.
- RS232 Serial Ports: Allows system programming and external communications via DB9 connectors.
- Reliable Link Termination: Supports LT-1 link terminators or resistors for cable runs over 50 feet.
The HWI-PM-H48-120 delivers the reliability and precision required for integrated home lighting automation and control.
