Description
The Lutron NTGRX-4S-BI is a four-scene wallstation designed for use with Grafik Eye lighting control systems. It allows users to select one of four preset lighting scenes, as well as adjust lighting levels with raise/lower buttons. The unit offers convenient and intuitive control for residential and commercial lighting environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Lutron |
| Category |
|
| Part Number |
QSSC-EDU-D145 |
| Subcategory |
Lighting Controls → Scene Selectors & Wallstations |
| Operating Voltage |
24 V- Class 2 (low voltage) |
| Max Drapery Weight |
145 lbs (65.8 kg) |
| Max Torque |
9.0 in-lbs (1.02 N·m) |
| Max Power |
40 W |
| Speed |
86 RPM
|
| Operating Temp |
32°F – 104°F (0°C – 40°C) |
| Humidity Range |
0% – 90%, non-condensing |
| Sound Emission |
≤38 dBA at 1 m |
| Control Type |
QS / QS Wireless Compatible |
| Preset Accuracy |
±0.125 in (3 mm) |
| Memory |
Power failure memory built-in |
| Mounting |
Included with Sivoia QS system |
| Weight |
~1.5 kg |

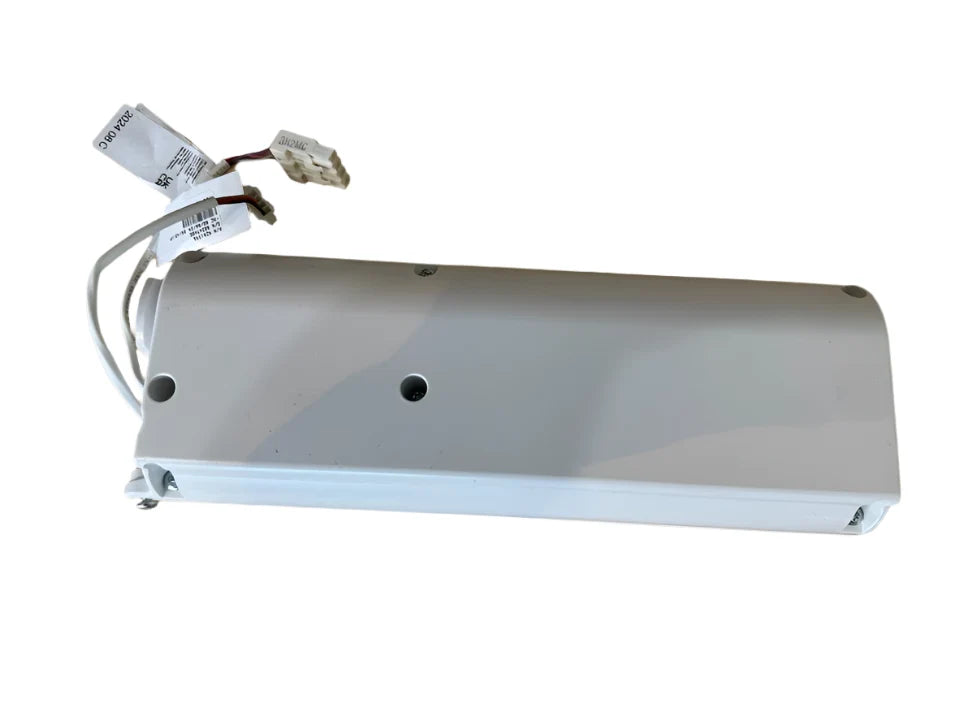

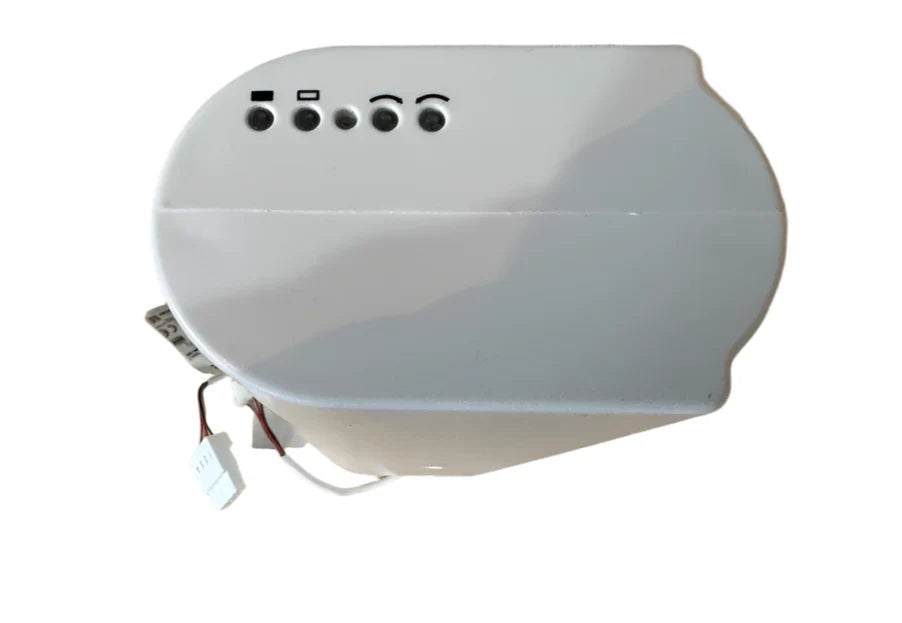

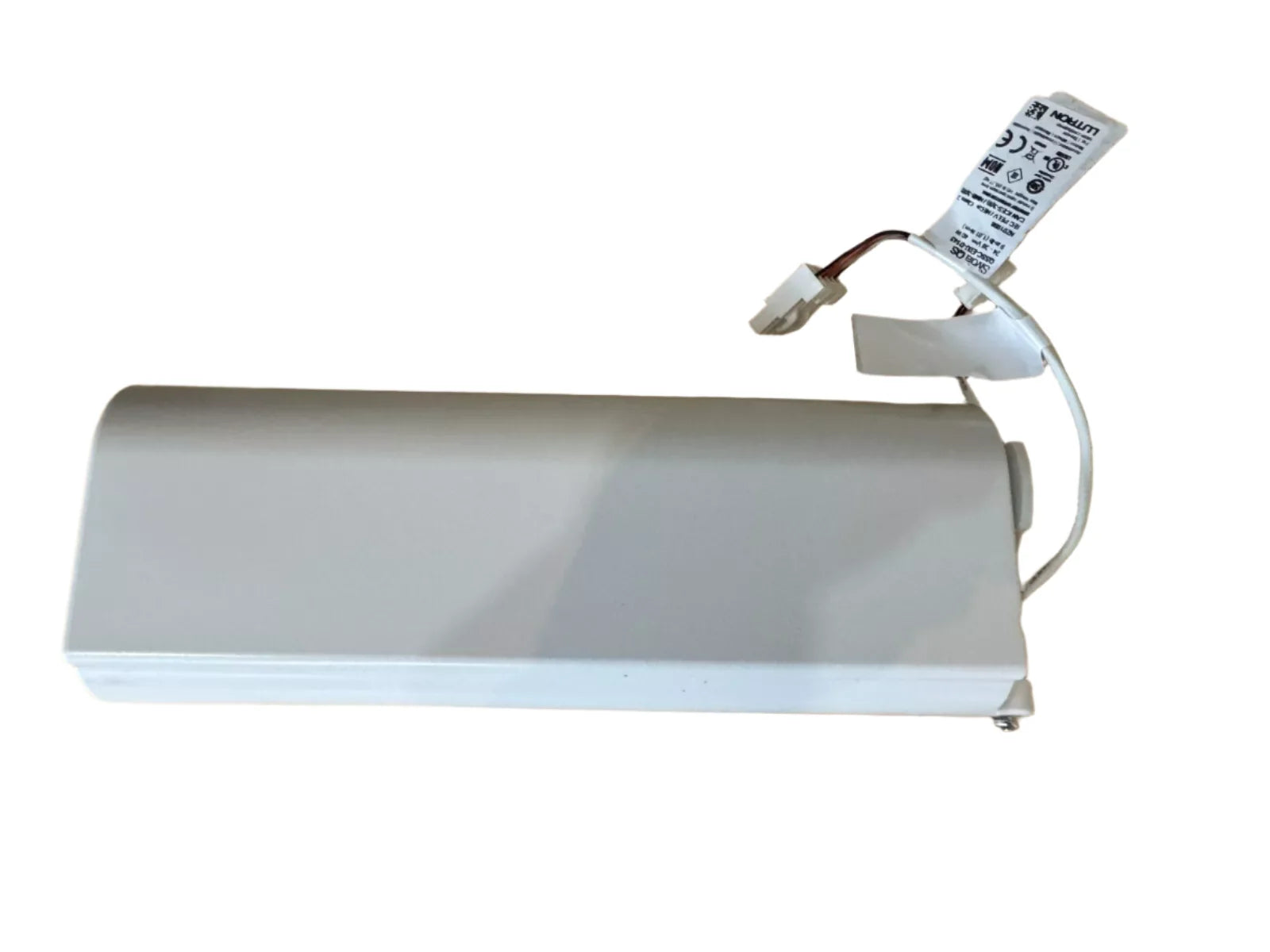

Information About QSSC-EDU-D145
The QSSC-EDU-D145 is designed for seamless integration with Sivoia QS smart shading systems. Operating on low-voltage 24V Class 2 wiring, it ensures safe and reliable performance. Its internal memory allows presets at any drapery position with sub-inch precision, while integrated overvoltage and ESD protection secure long-term operation. With a max torque of 9.0 in-lbs, 86 RPM motor speed, and max power draw of 40 W, this unit is perfect for demanding automation scenarios requiring near-silent precision movement.
Key Features:
- High Load Capacity: Supports drapery panels weighing up to 145 lb (66 kg).
- Ultra-Quiet Motor: Provides smooth and nearly silent drapery movement.
- Precision Motion Control: Ensures accurate starting, stopping, and positioning.
- Flexible Track Compatibility: Supports straight, curved, single, dual, tandem, and dual-tandem track systems.
- Multiple Drapery Styles: Compatible with pinch pleat and ripplefold curtain configurations.
- QS System Integration: Connects seamlessly with Lutron Sivoia QS lighting and shading controls.
- 24 VDC Operation: Powered by a low-voltage supply for dependable performance.
- Professional Installation: Designed for residential, hospitality, and commercial automation projects.
The QSSC-EDU-D145 delivers the reliability and precision required for professional motorized drapery and automated window treatment systems.
