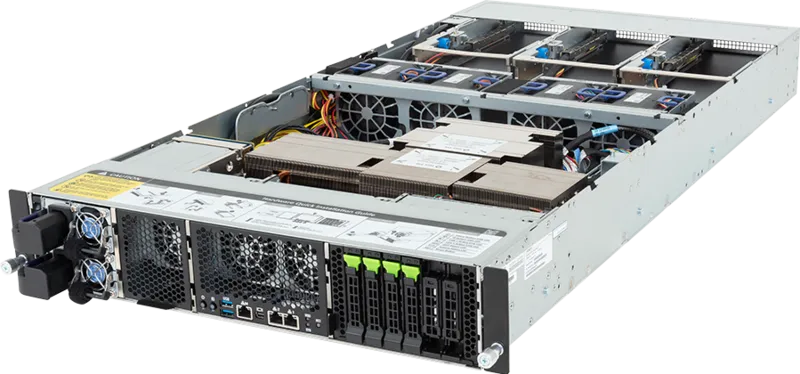

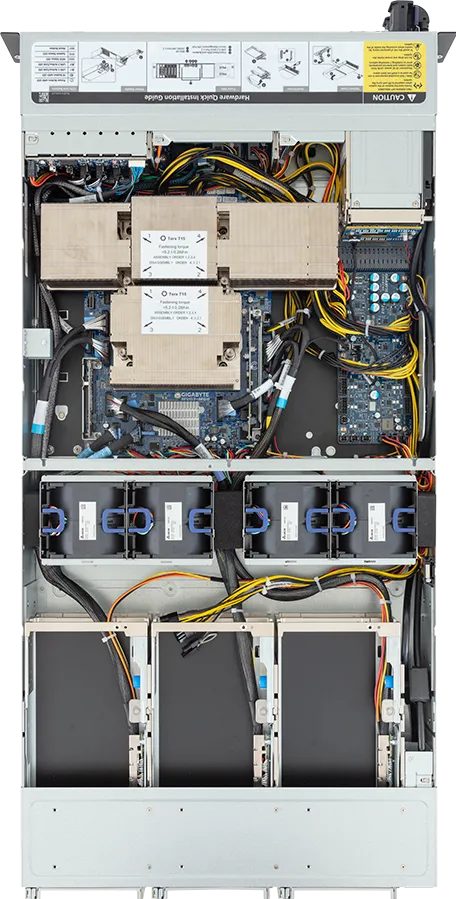

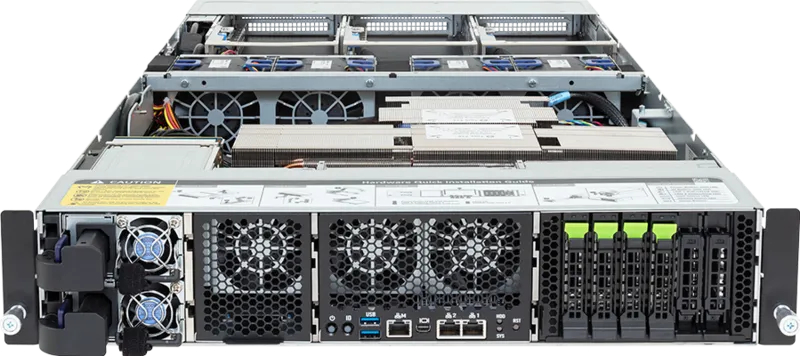

Gigabyte XH23-VG0-AAJ1 2U system with MVG3-MG0 motherboard features an NVIDIA GH200 Grace Hopper Superchip, combining a 480GB LPDDR5X ECC memory with 96GB HBM3 GPU memory, and PCIe Gen5 expansion. It includes dual 2000W power supplies, multiple storage options with Gen5 NVMe and M.2 slots, and supports advanced cooling with high-speed fans for optimal performance in a 10°C to 35°C operating environment.



Specifications

Model Number:  XH23-VG0-AAJ1

Brand:  Gigabyte

Alt Part Number(s):  XH23-VG0-AAJ1

Product Type: Server



Technical Description

Brand: Gigabyte

Model:  XH23-VG0-AAJ1

Form Factor: 2U

Dimensions: 438 x 87 x 900 mm

Motherboard: MVG3-MG0

Superchip: NVIDIA GH200 Grace Hopper™ Superchip: 1 x NVIDIA Grace™ CPU; 1 x NVIDIA Hopper™ GPU; Connected with NVIDIA NVLink™-C2C; TDP up to 1000W (CPU + GPU + memory)

Memory: NVIDIA Grace™ CPU: 480GB of LPDDR5X memory with ECC; Memory bandwidth up to 512GB/s
NVIDIA Hopper™ GPU: 96GB HBM3; Memory bandwidth up to 4TB/s

LAN: Front: 2 x 10Gb/s LAN (1 x Intel® X550-AT2); Support NCSI function
1 x 10/100/1000 Mbps Management LAN

Storage: Front: 4 x 2.5" Gen5 NVMe (NVMe from PEX89048)
Internal M.2 (CMTP0A3): 2 x M.2 (2242/2260/2280/22110), PCIe Gen5 x4, from PEX89048

PCIe Expansion Slots: PCIe Cable x 3: 3 x FHFL x16 (Gen5 x16), from CPU

Power Supply: 1+1 2000W 80 PLUS Titanium redundant power supplies

AC Input: 100-127V~/ 13A, 50-60Hz; 200-220V~/ 10A, 50-60Hz; 220-240V~/ 10A, 50-60Hz

Security Modules: 1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM012

System Management: ASPEED® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

System Fans: 3 x 60x60x56mm (24,000/23,200rpm)
4 x 80x80x80mm (18,700/15,100rpm)

Operating Properties: Operating temperature: 10°C to 35°C
Operating humidity: 8% to 80% (non-condensing)

Operating Temperature: Non-operating temperature: -40°C to 60°C

Operating Humidity: Non-operating humidity: 20% to 95% (non-condensing)
