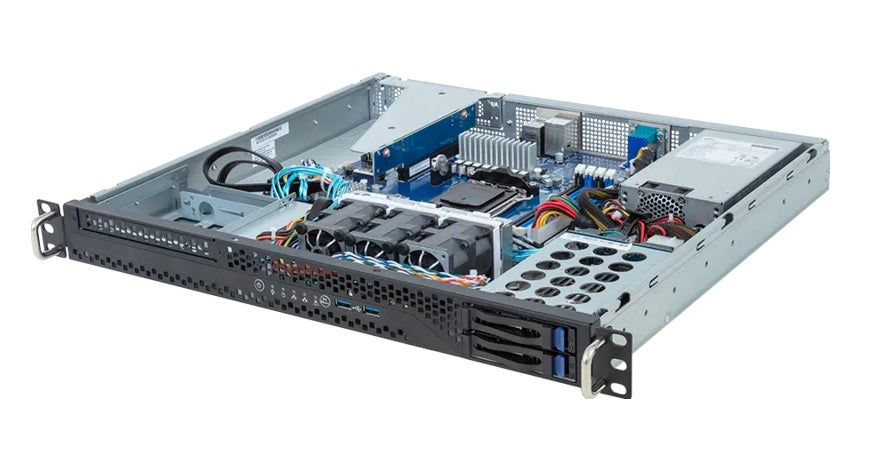

The R113-C10-AA01 is a 1U rackmount general-purpose server manufactured by Gigabyte Global. It is designed as an entry-level, cost-effective solution for network services and hybrid/private cloud applications
Specifications
Model Number: R113-C10-AA01
Brand: Gigabyte
Alt Part Number(s): R113-C10-AA01
Product Type: Server
Technical Description
Brand: Gigabyte
Model Number: R113-C10-AA01
Processor Type: AMD EPYC 4005/4004, AMD Ryzen 9000/7000 Series Processors
Processor Core: Up to 16 Core/32 Thread
Processor Power: Single processor, TDP up to 105W
Processor Socket: 1 x AM5
Motherboard: MC13-LE0
Chipset Type: AMD B650E
Graphics Controller: ASPEED AST2600
Networking Connectivity: 2 × 1 Gb/s Ethernet RJ45, 1 × 10/100/1000 Mbps management LAN
RAID Levels: 0/1/10, Support optional RAID add-in cards
Number of Drive Bays: 2 front hot‑swap + 2 internal
Expansion Slots: 1 x FHHL x16 (Gen5 x16), from CPU
Front I/O Ports: 6 Ports
Rear I/O Ports: 8 Ports
Memory Supported: Up to 192GB
AMD EPYC 4005/Ryzen9000: UDIMM: Up to 5600 MT/s (1DPC), 3600 MT/s (2DPC)
AMD EPYC 4004/Ryzen7000: UDIMM: Up to 5200 MT/s (1DPC), 3600 MT/s (2DPC)
Memory Technology: DDR5
Memory Slots: 4 x DIMM slots
Memory Channel: Dual Channel memory per processor
Power Supply: Single 350W 80 PLUS Bronze
System Cooling: 3 x 40x40x56mm
Form Factor: 1U Rackmount
Height: 1.71"
Width: 16.93"
Depth: 15.48"
