Overview

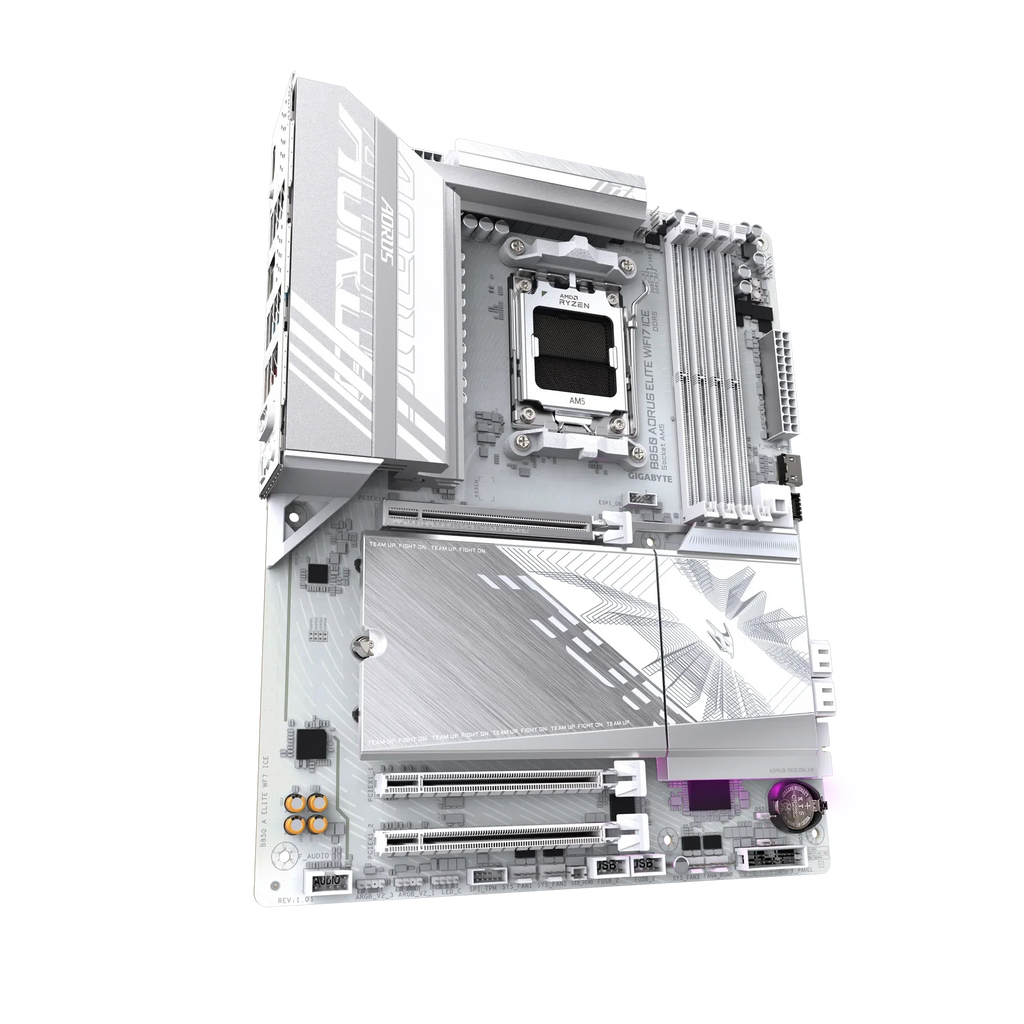

The Gigabyte B850 AORUS ELITE WIFI7 ICE is an ATX motherboard designed for AMD's AM5 socket, supporting Ryzen 7000, 8000, and 9000 series processors.It offers high-speed connectivity, advanced thermal solutions, and a sleek white aesthetic, making it suitable for high-performance gaming and content creation builds.
Specifications
Model Number: B850 A ELITE WF7 ICE
Brand: Gigabyte
Alt Part Number(s): B850 A ELITE WF7 ICE
Product Type: Motherboard
Technical Description
Brand: Gigabyte
Model:B850 A ELITE WF7 ICE
Chipset & Socket: AMD B850 chipset, AM5 socket
Memory: 4 x DDR5 DIMM slots, up to 256GB, supporting speeds up to 8200 MT/s (OC)
Storage:
1 x PCIe 5.0 x4 M.2 slot
2 x PCIe 4.0 x4 M.2 slots
4 x SATA III ports
Expansion Slots:
1 x PCIe 5.0 x16 slot
2 x PCIe 3.0 x1 slots
Networking:
2.5GbE LAN (Realtek RTL8125D)
Wi-Fi 7 (Realtek RTL8922AE)
Bluetooth 5.4
USB Ports:
1 x USB 3.2 Gen 2x2 Type-C
2 x USB 3.2 Gen 2 Type-A
5 x USB 3.2 Gen 1 Type-A
4 x USB 2.0 Type-A
Video Output: 1 x DisplayPort
Audio: Realtek 7.1-channel HD audio codec
Form Factor: ATX (30.5 x 24.4 cm)
Additional Features:
VRM Thermal Armor Advanced with heatpipe
M.2 Thermal Guard
Smart Fan 6 with 6 PWM/DC headers
RGB FUSION with multiple RGB/ARGB headers
EZ-Debug Zone with debug LEDs
Q-FLASH Plus for BIOS updates
