Overview

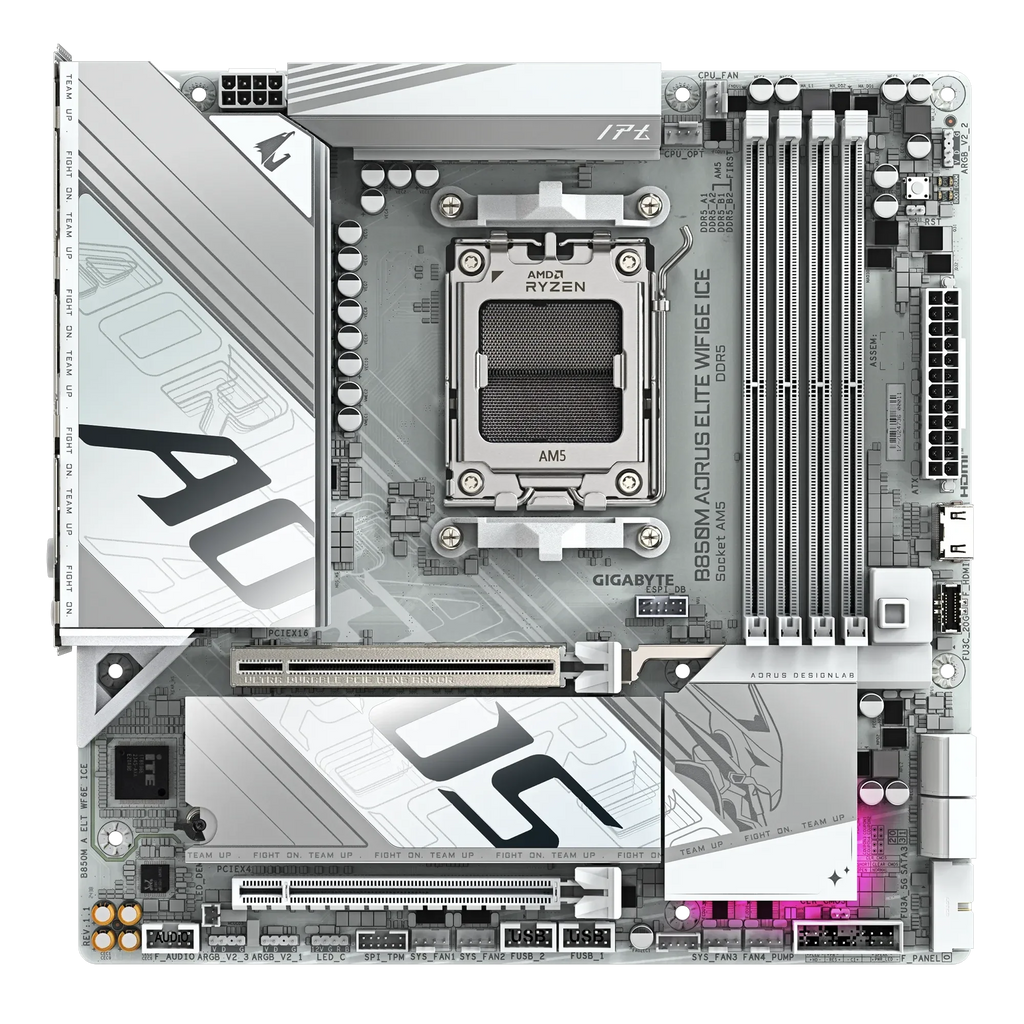

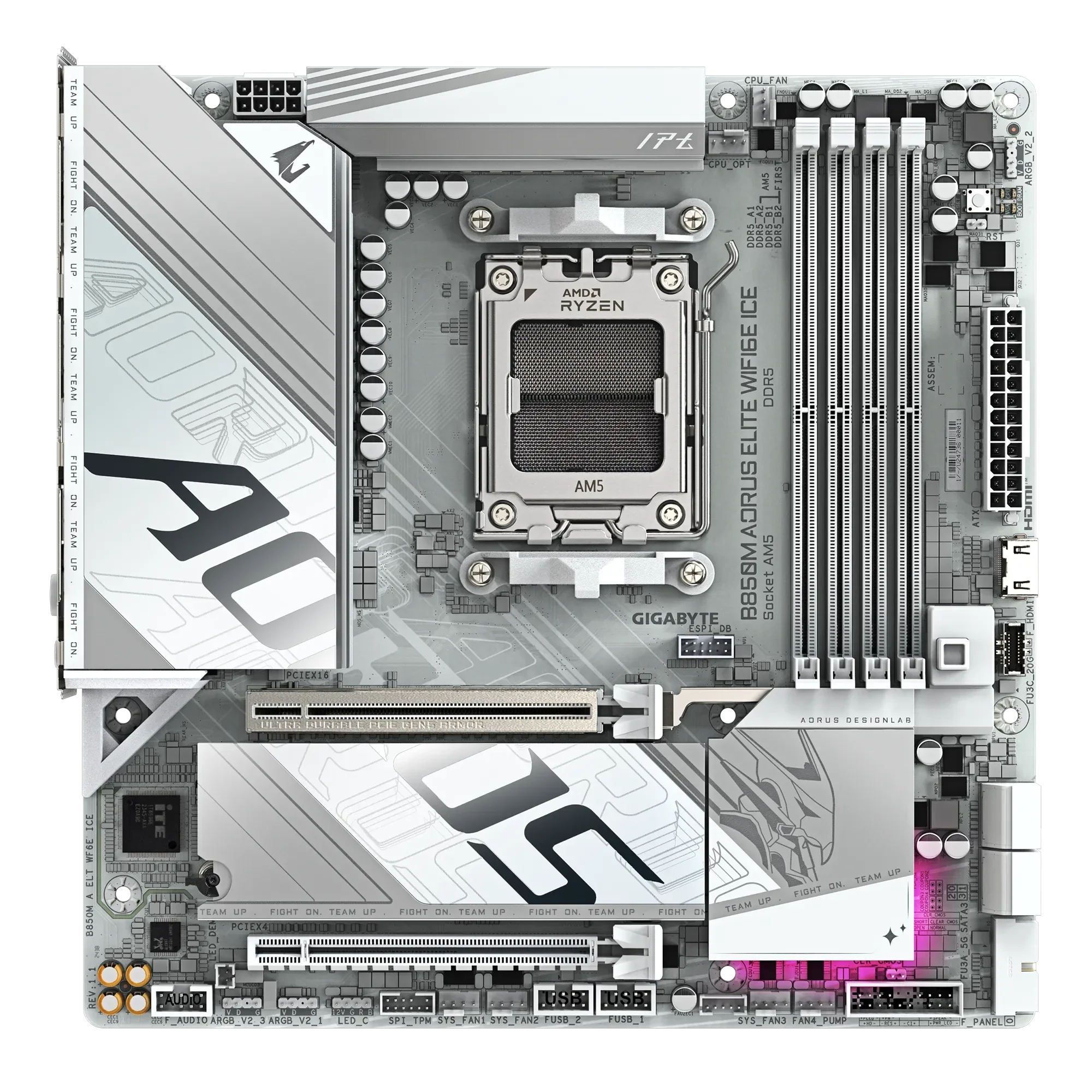

The Gigabyte B850M AORUS ELITE WIFI6E ICE is a microATX motherboard designed for AMD's AM5 socket, supporting Ryzen 7000, 8000, and 9000 series processors.It features a premium white aesthetic with advanced thermal solutions, making it ideal for high-performance gaming and content creation builds.
Specifications
Model Number: B850M A ELT WF6E ICE
Brand: Gigabyte
Alt Part Number(s): B850M A ELT WF6E ICE
Product Type: Motherboard
Technical Description
Brand: Gigabyte
Model:B850M A ELT WF6E ICE
Chipset & Socket: AMD B850 chipset, AM5 socket
Memory: 4 x DDR5 DIMM slots, up to 256GB, supporting speeds up to 8200 MT/s (OC)
Storage:
1 x PCIe 5.0 x4 M.2 slot
1 x PCIe 4.0 x4 M.2 slot
4 x SATA III ports
Expansion Slots:
1 x PCIe 5.0 x16 slot
1 x PCIe 3.0 x4 slot
Networking:
2.5GbE LAN (Realtek)
Wi-Fi 6E (Realtek RTL8852CE)
Bluetooth 5.3
USB Ports:
1 x USB 3.2 Gen 2x2 Type-C
2 x USB 3.2 Gen 2 Type-A
5 x USB 3.2 Gen 1 Type-A
4 x USB 2.0 Type-A
Audio: Realtek 7.1-channel HD audio codec
Video Outputs: 1 x DisplayPort
Form Factor: Micro-ATX (24.4 x 24.4 cm)
Additional Features:
VRM Thermal Armor Advanced with heatpipe
M.2 Thermal Guard
Smart Fan 6 with 6 PWM/DC headers
RGB FUSION with multiple RGB/ARGB headers
EZ-Debug Zone with debug LEDs
Q-FLASH Plus for BIOS updates
Boost your enterprise performance with the Gigabyte MB B850M A ELT WF6E ICE B850 LGA1718 Max192GB DDR5—ORDER TODAY!
*
