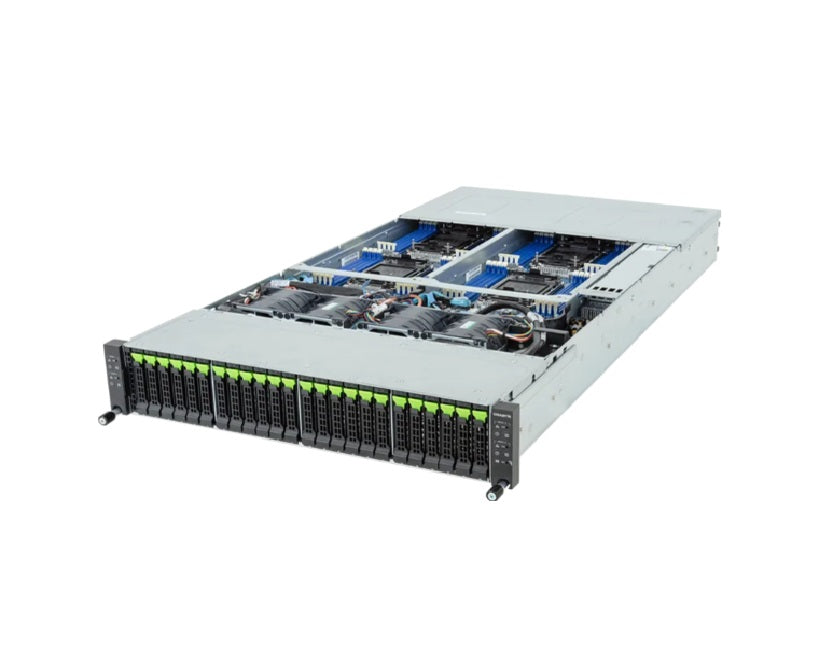

The Gigabyte H274-S60-AAW1 is a high-density, 2U 4-node server barebone system designed for high-performance computing (HPC) and hyper-converged infrastructure (HCI) workloads. It is part of GIGABYTE's H-Series and is specifically built to support the latest Intel Xeon 6 processors.
Specifications
Model Number: H274-S60-AAW1
Brand: Gigabyte
Alt Part Number(s): H274-S60-AAW1
Product Type: Barebone Server
Technical Description
Brand: Gigabyte
Model Number: H274-S60-AAW1
Processor Type: Dual Intel Xeon 6700/6500-Series per node
Processor Core: 1024-Core/ 2048-Thread
Processor Power: up to 225 W
Processor Socket: 8 x LGA 4710 Socket E2 (4 nodes × 2 CPUs)
Motherboard: 9MS64HD0UR-000
Chipset Type: System on Chip
Graphics Controller: ASPEED AST2600
Networking: 8× 1 GbE (Intel I350‑AM2) (across nodes)
RAID Levels: RAID 0, 1, 5, 6, 10, 50, 60
Number of Drive Bays: 24 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
Rear Expansion Slots: 8 x LP x16 (Gen5 x16), 4 × OCP NIC 3.0 Gen5 ×16
Memory Supported: Up to 16TB
Memory Technology: DDR5 SDRAM
Memory Speed: RDIMM: Up to 6400 MT/s, MRDIMM: Up to 8000 MT/s
Memory Slots: 16 × DDR5 DIMM per node
Memory Channels: 8-Channels per processor
Cooling: 4 × 80×80×80 mm server fans
Power Supply: Dual 3000 W 80 PLUS Titanium
Form Factor: 2U Rackmount
