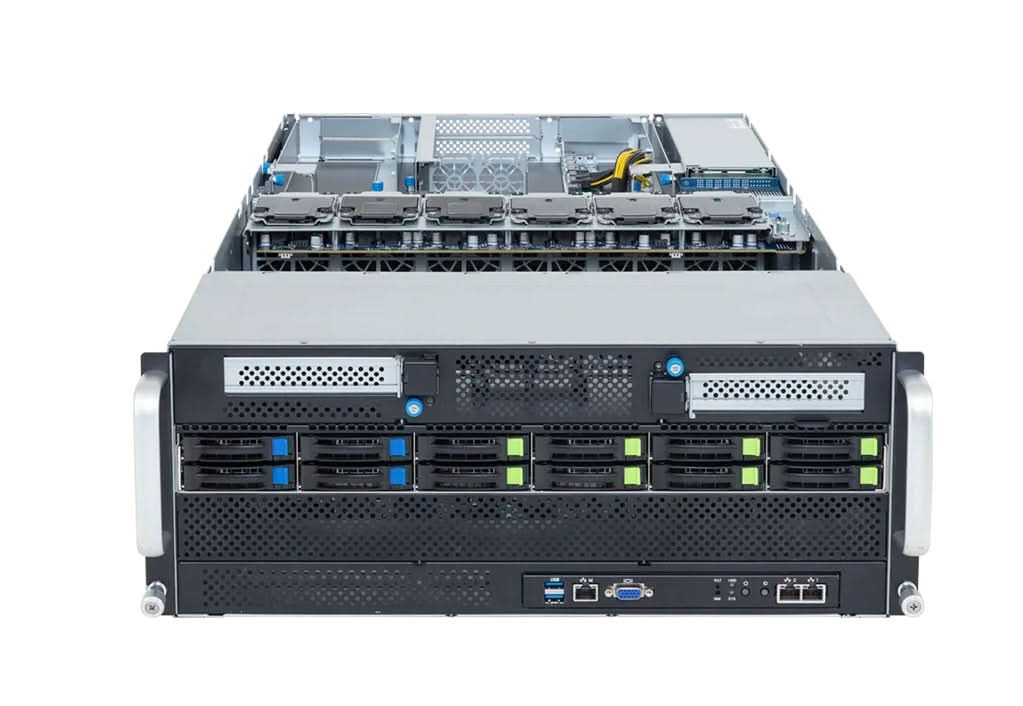

Gigabyte G494-SB0-AAP2 Intel Xeon 6 DDR5 4U Rackmount/GPU Server

Specifications

Model Number:  G494-SB0-AAP2

Brand:  Gigabyte

Alt Part Number(s):  G494-SB0-AAP2

Product Type:  GPU Server

Technical Description

Brand:  Gigabyte

Model Number:  G494-SB0-AAP2

Processor Type:    Intel Xeon 6, 6700/6500 Series Processors

Processor Power:  Up to 350W

Processor Socket:  2 x LGA 4710 Socket E2

Chipset Type:  System on Chip

Motherboard:  MSB4-G40

USB Type:  2 x USB 3.2 Gen1 ports (Type-A)

Number of Fans:  12

Number of Channels:  8-Channel

Storage Hot-swap:  8 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays 4 x 2.5" SATA/SAS-4 hot-swap bays

Graphics Controller:  Aspeed AST2600

Memory Supported:   Up to4TB

Memory Technology:  DDR5 RDIMM/MRDIMM [1]

RDIMM:  Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)

MRDIMM:  Up to 8000 MT/s

Memory Slots:  32 x DIMM

Expansion Slots:  16

Power Supply:  Quad 3000W 80 Plus

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Form Factor: 4U Rackmount/GPU Server

*
