Description

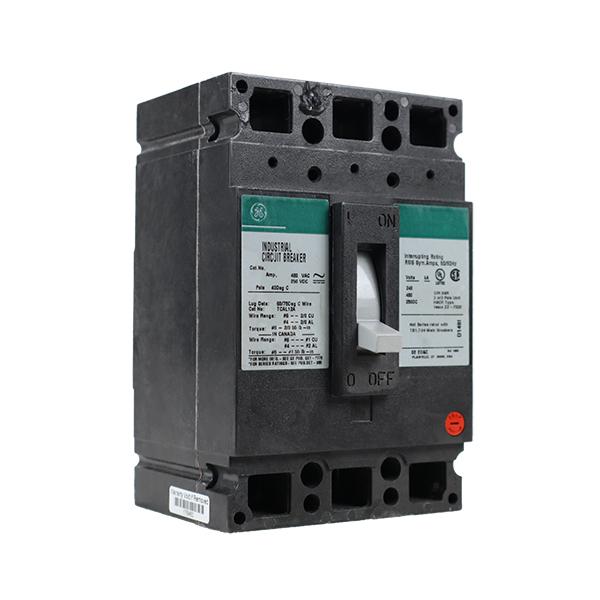

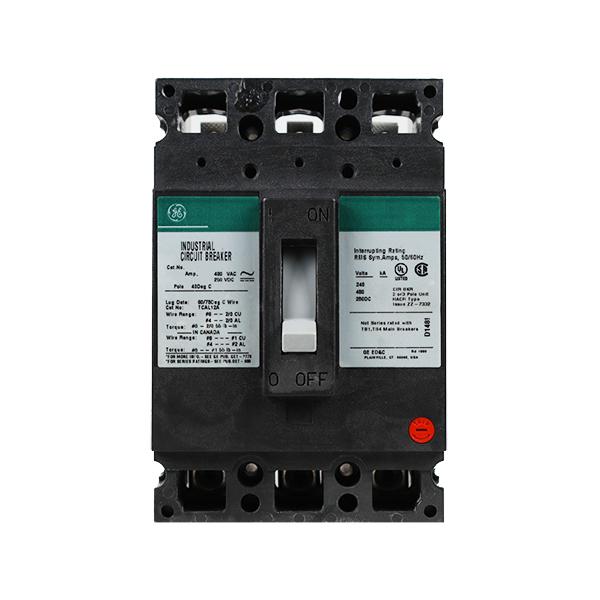

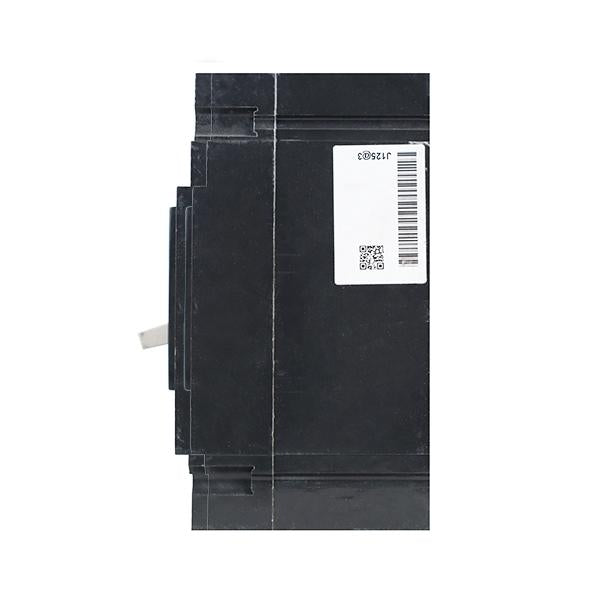

The General Electric TED136YT150 is a 150 Amp, 3-pole molded case switch designed for three-phase electrical systems. It provides non-automatic protection for circuits operating up to 600 VAC or 500 VDC. This switch is compatible with GE A-Series and Spectra Series panelboards, ensuring secure and reliable installation.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
General Electric |
| Category |
Molded Case Circuit Breakers / 3-Pole |
| Part Number |
TED136YT150 |
| Subcategory |
Molded Case Switch |
| Series |
TED |
| Poles |
3 |
| Current Rating |
150 Amp |
| Voltage Rating |
240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase |
Three-Phase |
| Trip Type |
Magnetic Only |
| Trip Adjustability |
Fixed |
| Mounting Type |
Bolt-On |
| Terminal Type |
Lugs |
| Wire Range |
3 AWG – 3/0 AWG (Cu), 1 AWG – 3/0 AWG (Al) |
| Interrupting Capacity |
18kA @ 480V, 18kA @ 240/480VAC, 14kA @ 600VAC, 10kA @ 250/500VDC |
| Optional Features |
Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Motor Operator, Padlock Attachment |
| Standards |
UL 489, NEMA AB 1, CSA C22.2 No. 5 |
| Approvals |
UL, CSA |
| Operating Temperature |
40°C |
| Construction Features |
Non-Automatic, Molded Case Switch, Feed-Thru |
| Dimensions (HxWxD) |
6.75 x 4.25 x 4.75 in |
| Weight |
5 lbs |
Information About TED136YT150
The TED136YT150 is part of GE’s TED series of molded case switches, built for industrial and commercial applications. It features a bolt-on mounting style with lug terminals for feed-thru connections. The switch uses a magnetic-only trip mechanism with fixed settings and accommodates wire sizes from 3 AWG to 3/0 AWG for copper and 1 AWG to 3/0 AWG for aluminum. Optional features include shunt trip, auxiliary switch, undervoltage release, bell alarm, motor operator, and padlock attachment for flexible installation.
Key Features:
-
Series: TED Series molded case switch for industrial use.
-
Poles: 3-pole configuration for three-phase systems.
-
Current Rating: 150 Amp continuous load capacity.
-
Voltage Rating: 240VAC, 480VAC, 600VAC, 250VDC, 500VDC compatible.
-
Mounting Style: Bolt-on for secure panel installation.
-
Trip Mechanism: Magnetic-only with fixed trip setting.
-
Wire Range: 3 AWG – 3/0 AWG (Cu), 1 AWG – 3/0 AWG (Al).
-
Compatibility: Fits GE A-Series and Spectra Series panelboards.
-
Optional Features: Shunt trip, auxiliary switch, undervoltage release, bell alarm, motor operator, padlock attachment.
The TED136YT150 delivers the reliability and precision required for industrial and commercial circuit control.
