Description

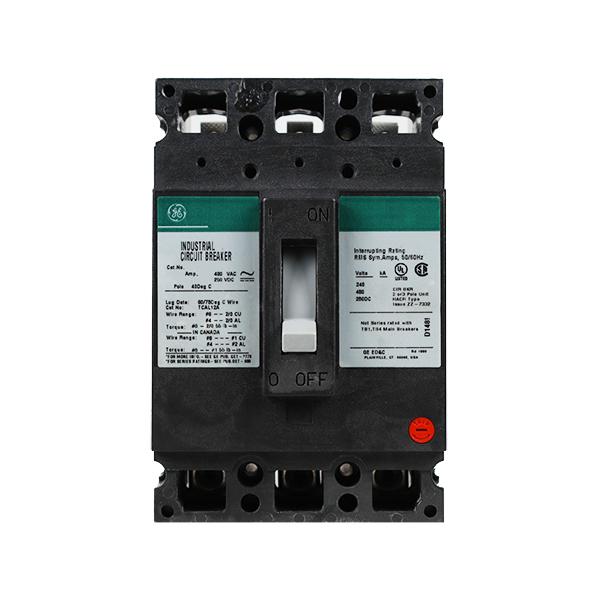

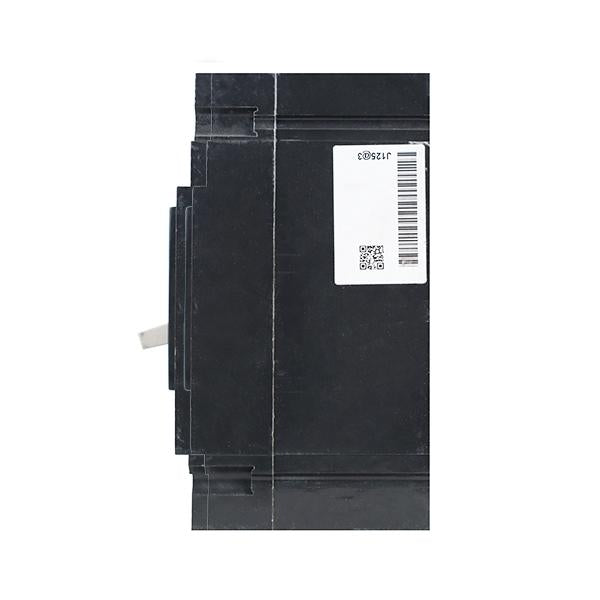

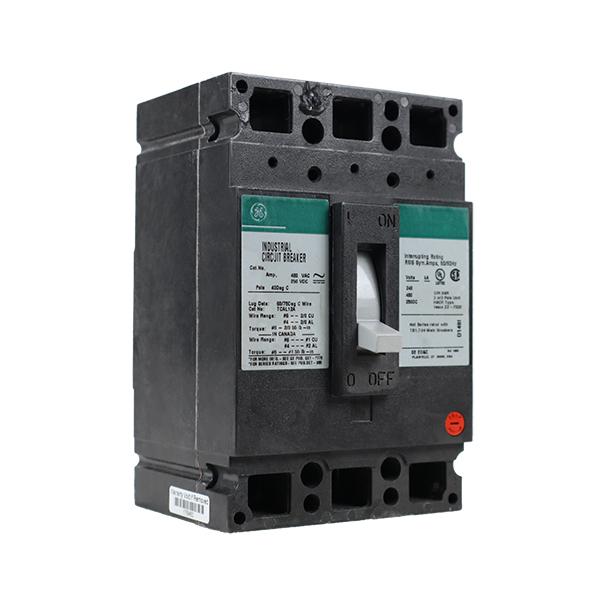

The General Electric TED136015 is a molded case circuit breaker designed to provide reliable protection for three-phase electrical systems in industrial and commercial applications. Rated at 15 amps and 600 volts, it ensures effective interruption of overloads and short circuits. This breaker utilizes thermal-magnetic trip technology for consistent and dependable circuit protection.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
General Electric |
| Category |
Electrical Products |
| Part Number |
TED136015 |
| Subcategory |
Circuit Breakers |
| Series |
TED (E150 Line) |
| Type |
Molded Case Circuit Breaker |
| Amperage |
15 A |
| Voltage Rating |
600 V |
| Poles |
3 |
| Phase |
Three Phase |
| Interrupt Rating |
18 kA @ 480 V |
| Trip Unit |
Thermal-Magnetic (Long Time & Instantaneous) |
| Connection Type |
Bolt-On |
| Terminals |
Load Lugs |
| Frequency |
50/60 Hz |
| Certifications |
UL Listed |
| Weight |
3 lbs |
Information About TED136015
The TED136015 is part of General Electric’s E150 Line within the TED series of molded case circuit breakers. It features a compact and durable design with bolt-on mounting, allowing secure installation in panelboards and switchgear systems. Equipped with a thermal-magnetic trip unit, it provides both long-time and instantaneous protection functions for enhanced system safety. This breaker is commonly used in commercial and industrial environments where dependable low-current protection in three-phase circuits is required.
Key Features:
- 15 Amp Rating: Designed for low-current protection in three-phase circuits.
- 600 Volt Capacity: Suitable for high-voltage distribution systems.
- Thermal-Magnetic Trip: Provides combined overload and short-circuit protection.
- 3-Pole Configuration: Supports balanced three-phase electrical systems.
- 18kA Interrupt Rating: Safely interrupts fault currents at 480V systems.
- Bolt-On Mounting: Ensures secure and stable installation in panelboards.
- Load Lug Terminals: Simplifies wiring and electrical connections.
- UL Listed Certification: Meets recognized safety and compliance standards.
The TED136015 delivers the reliability and precision required for circuit protection in industrial and commercial power distribution systems.
