Description

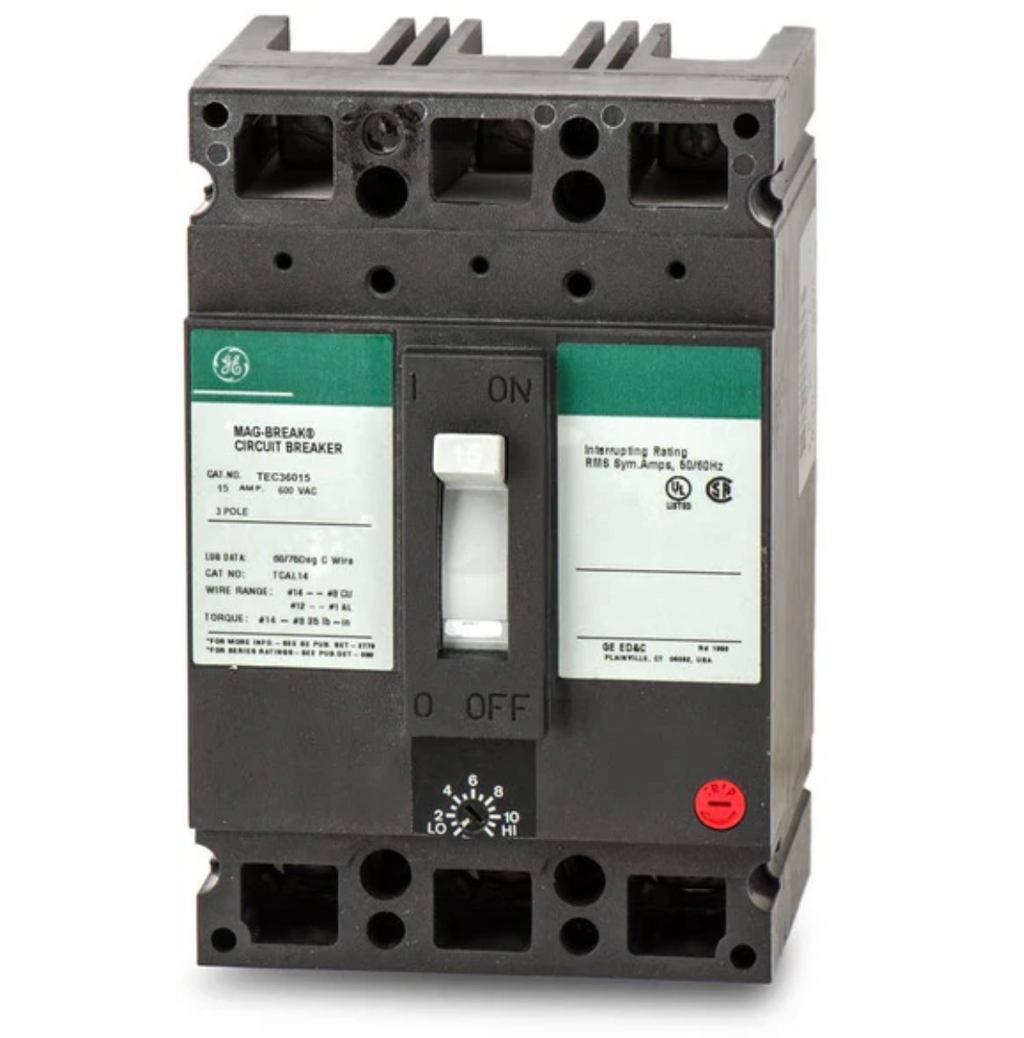

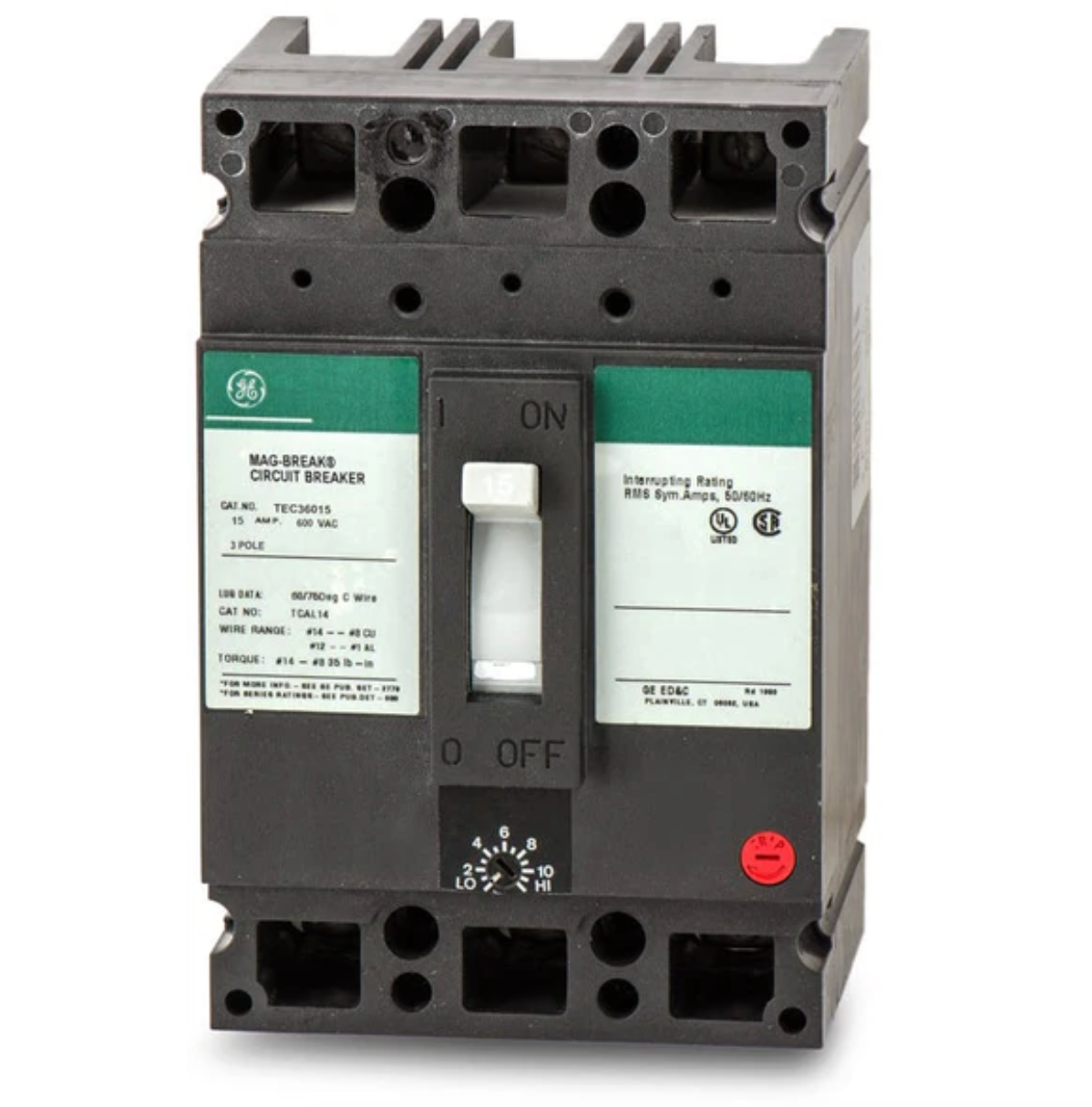

The General Electric TEC36015 is a molded case circuit breaker designed for motor protection and short-circuit interruption in industrial electrical systems. Rated at 15 amps and 600 volts AC, it provides instantaneous magnetic-only trip protection for three-phase applications. This breaker is engineered for fast fault response and reliable operation in motor control circuits.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
General Electric |
| Category |
Electrical Products |
| Part Number |
TEC36015 |
| Subcategory |
Circuit Breakers |
| Series |
TEC (Mag-Break) |
| Type |
Molded Case Circuit Breaker |
| Amperage |
15 A |
| Voltage Rating |
600 VAC |
| Poles |
3 |
| Interrupt Rating |
10kA @ 480V |
| Trip Unit |
Magnetic Only (Instantaneous) |
| Connection Type |
Feed-Thru (Line & Load Lugs) |
| Phase |
Three Phase |
| Application |
Motor circuit protection |
| Certifications |
UL Listed |
| Weight |
3 lbs |
Information About TEC36015
The TEC36015 is part of General Electric’s TEC series, also known as the Mag-Break line, designed specifically for motor circuit protection. It features a magnetic-only trip mechanism that responds instantly to short-circuit conditions without thermal delay. The breaker is built with a durable molded case and supports feed-thru connections, allowing flexible installation including reverse-feed applications. Commonly used in industrial and commercial environments, it integrates with GE distribution systems to protect motors and equipment requiring rapid fault interruption.
Key Features:
- 15 Amp Rating: Designed for low-current motor and equipment protection.
- 600 VAC Operation: Suitable for high-voltage industrial applications.
- 3-Pole Configuration: Provides protection for three-phase circuits.
- Magnetic-Only Trip: Instantaneous response to short-circuit conditions without overload delay.
- 10kA Interrupt Rating: Safely interrupts fault currents at 480 VAC.
- Feed-Thru Design: Supports reverse-fed and flexible wiring configurations.
- Lug Terminals: Allows secure line and load connections.
- Mag-Break Series: Optimized for motor circuit protection applications.
The TEC36015 delivers the reliability and precision required for fast-acting motor circuit protection in industrial power systems.
