Description

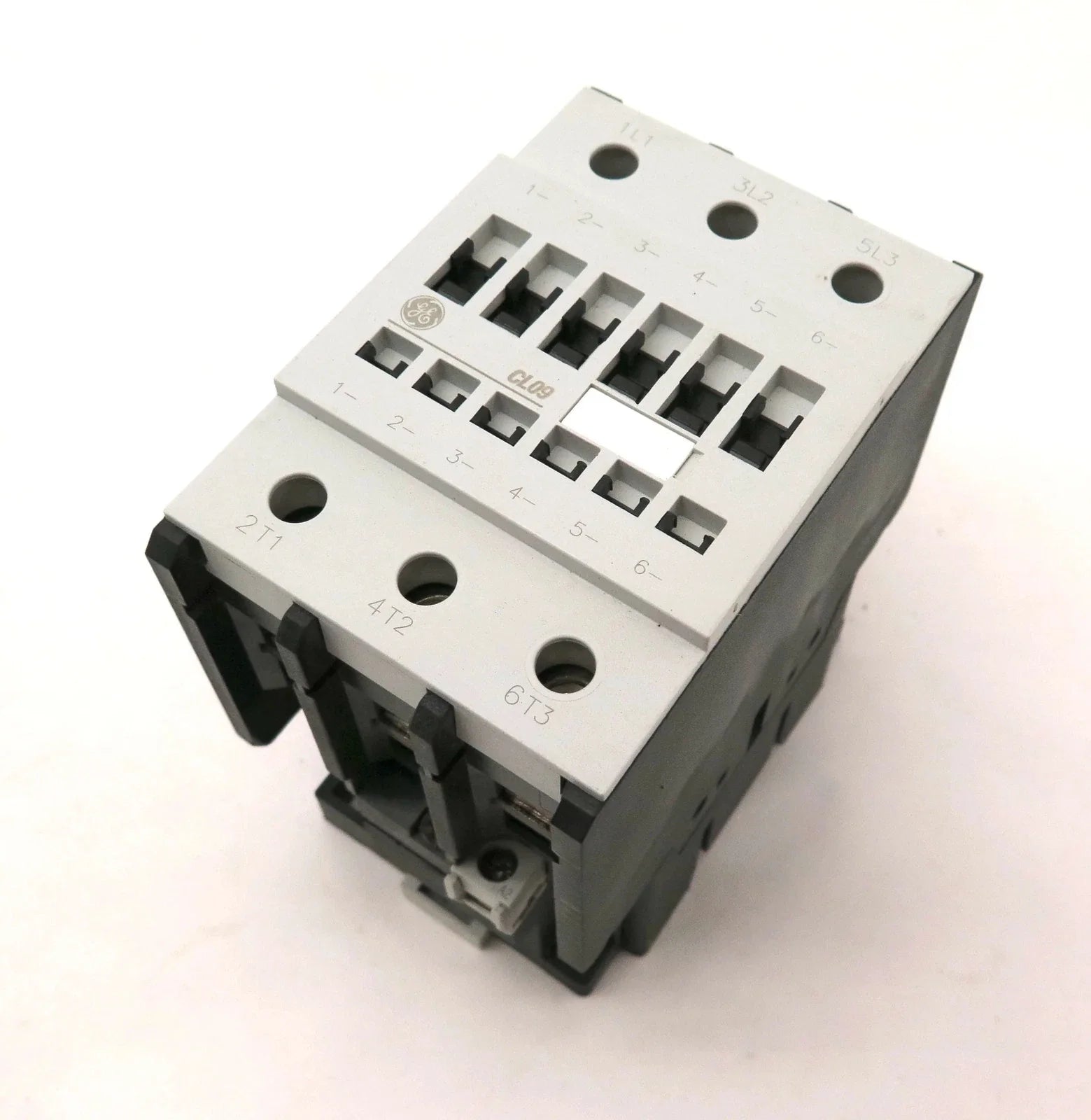

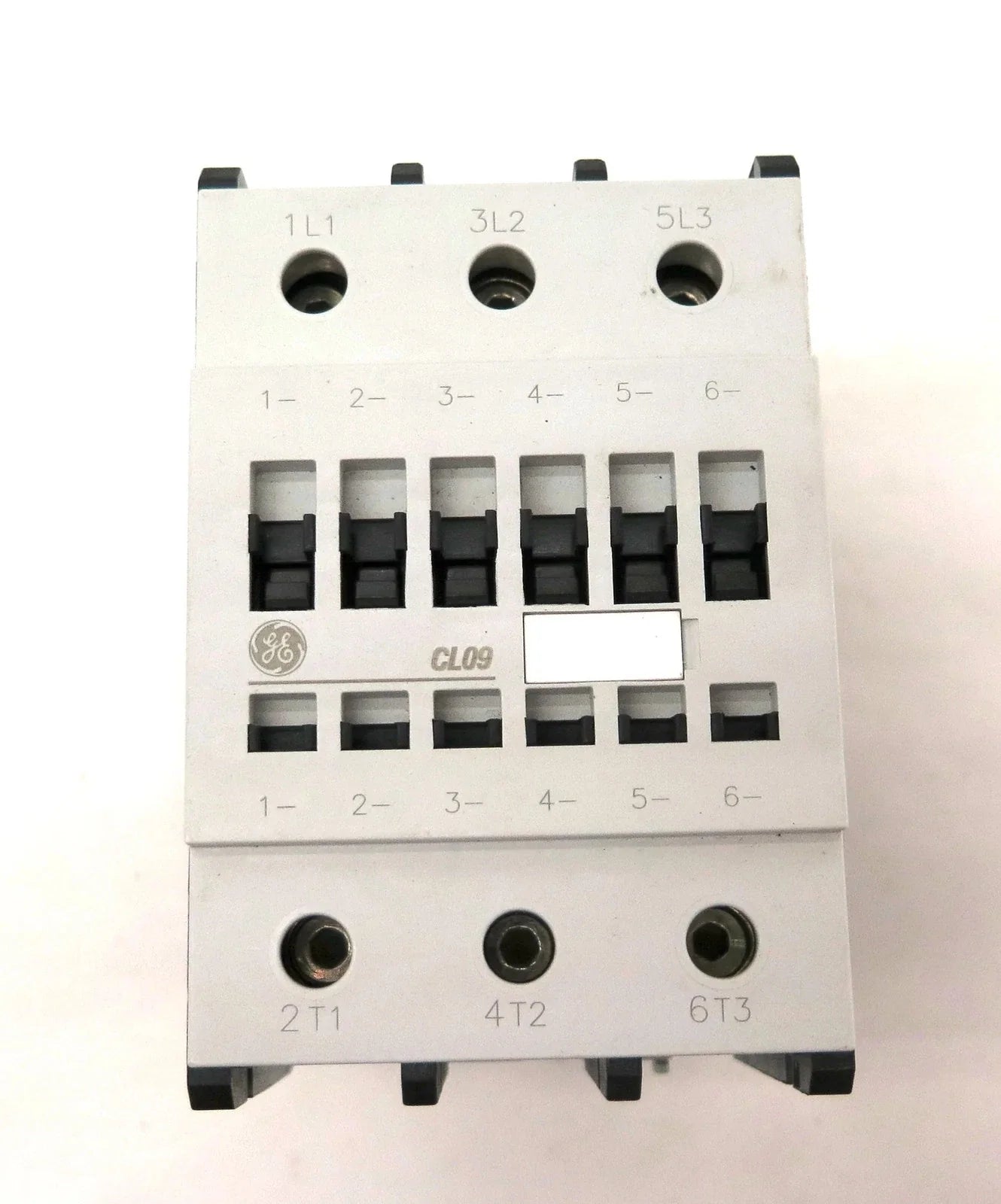

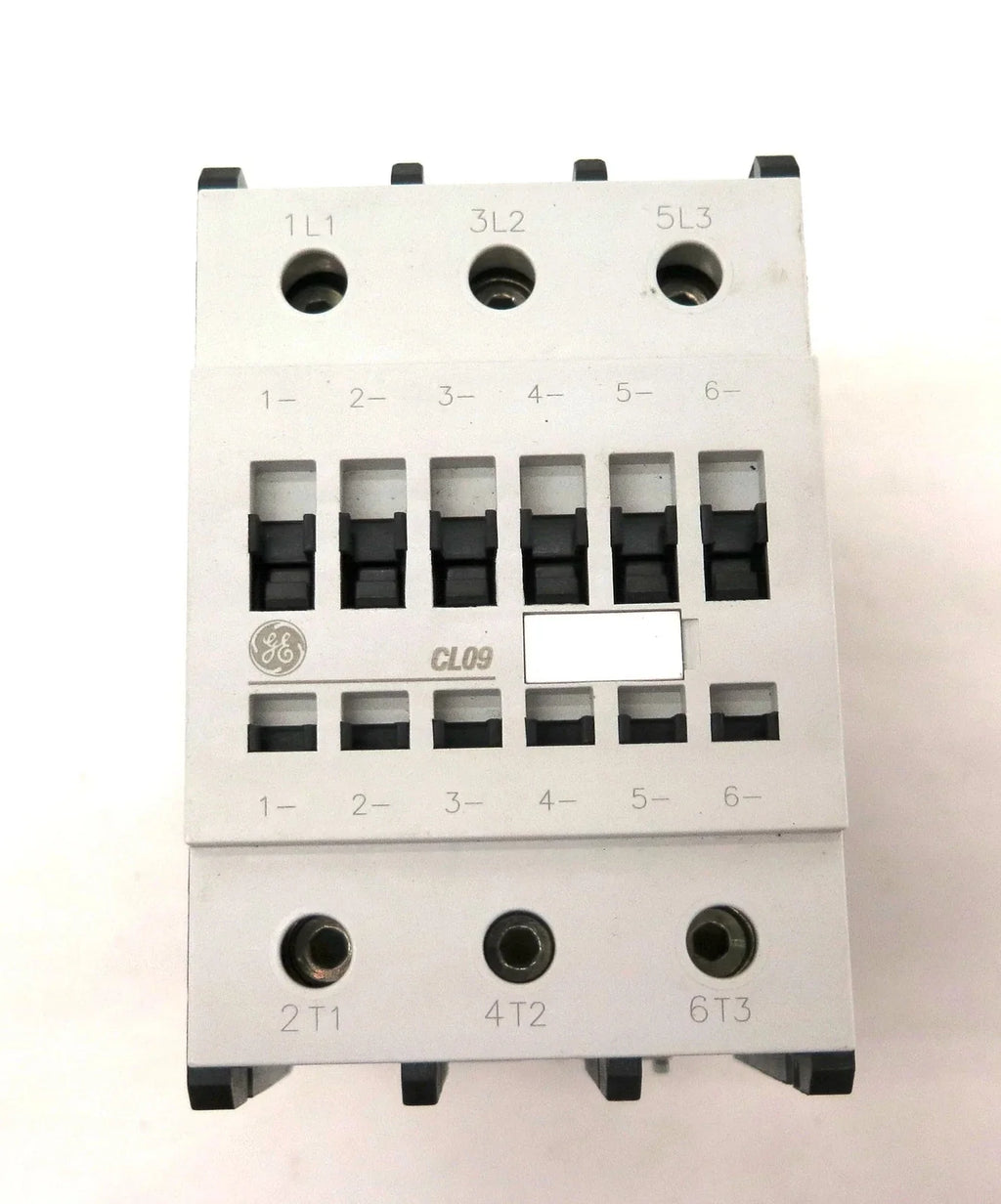

The CL09A300M is a 3-pole, 80 Amp contactor from General Electric, designed for industrial applications requiring reliable control of electrical circuits. Rated for 30 HP at 230V and 60 HP at 460V in 3-phase systems, it ensures secure operation in a wide range of commercial and industrial setups. This contactor comes with lug-type terminals and offers flexibility with available AC and DC coils across various voltages.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
General Electric |
| Category |
Contactors |
| Part Number |
CL09A300M |
| Subcategory |
Industrial Contactor |
| Amperage Rating |
80 Amps |
| Pole Configuration |
3 Poles |
| Voltage Rating |
600 Vac |
| Coil Voltage |
120 Vac |
| HP Rating |
30 HP @ 230V, 60 HP @ 460V |
| Overload Protection |
Manual Reset Overload |
| Terminal Type |
Lug-Type Terminals |
| Coil Types |
AC and DC Coils Available |
| Safety Features |
Finger and Back-of-Hands Protection |
| Compliance |
UL, CSA, IEC-947, CE |
| Weight |
2.3 lbs |
Information About CL09A300M
The CL09A300M is part of GE's extensive line of contactors, offering a versatile solution for controlling motors, lights, and other heavy-duty electrical devices. It supports up to 80 amps of current, with ratings up to 60 HP at 460V, making it suitable for a wide variety of industrial applications. This contactor is equipped with lug-type terminals for secure and easy connections, and it is available with snap-in accessories for flexible configuration. Conforming to international standards such as UL, CSA, and IEC-947, it provides safety and reliability for global use.
Key Features:
- Amperage Rating: 80 Amps: Designed to handle up to 80 amps for reliable electrical control in heavy-duty applications.
- Voltage Rating: 600 Vac: Rated for use with 600V AC systems, making it compatible with a wide range of industrial power supplies.
- Pole Configuration: 3 Poles: Ideal for 3-phase systems, providing strong performance in motor control and other 3-phase electrical systems.
- Coil Voltage: 120 Vac: Equipped with a 120 Vac coil for compatibility with standard industrial control systems.
- HP Rating: 30 HP at 230V, 60 HP at 460V: Supports up to 30 horsepower at 230V and 60 horsepower at 460V, ideal for motor control.
- Lug-Type Terminals: Ensures secure connections for dependable performance in industrial setups.
- Compliance with International Standards: Meets UL, CSA, IEC-947, and CE standards for safety and global compatibility.
- Manual Reset Overload: Features manual reset overload protection to meet automotive requirements.
- Safety Features: Provides finger and back-of-hand protection to enhance user safety.
- AC and DC Coils Available: Offers flexibility with AC and DC coil options to meet a variety of voltage requirements.
- Pre-assembled Reversing Forms: Available for applications requiring motor reversing functions.
- Snap-in Accessories: Provides greater design versatility with snap-in accessories for easier installation and configuration.
The CL09A300M delivers the reliability and precision required for industrial motor control and electrical safety applications.
