Confirming You Need a DS3800HFPG1D1D

If a Mark IV drive circuit is faulting and the DS3800HFPG is the suspect, it's worth spending five minutes ruling out the usual look-alikes before you order a replacement:

• Check both rear connectors. This is a double-width card seated on modular connectors at the rear of the rack; if only one side is fully engaged, you can get faults that mimic a bad processor.
• Trace the ribbon cable. A cable from the board's 40-pin connector routed across the microprocessor can block the airflow that cools it — the board can fault under load, then test fine once it cools, which looks like a random hardware failure rather than a heat issue.
• Reseat the EPROM modules. The firmware for the drive function lives on these modules, not the bare board, and they're meant to be moved from your old card to a replacement (which ships with empty sockets). A loose module can present as a full board failure.
• Use the test points on the front of the board to narrow down a fault before condemning the whole card.

If all of that checks out, replacement is the right move.

What's Actually on This Board

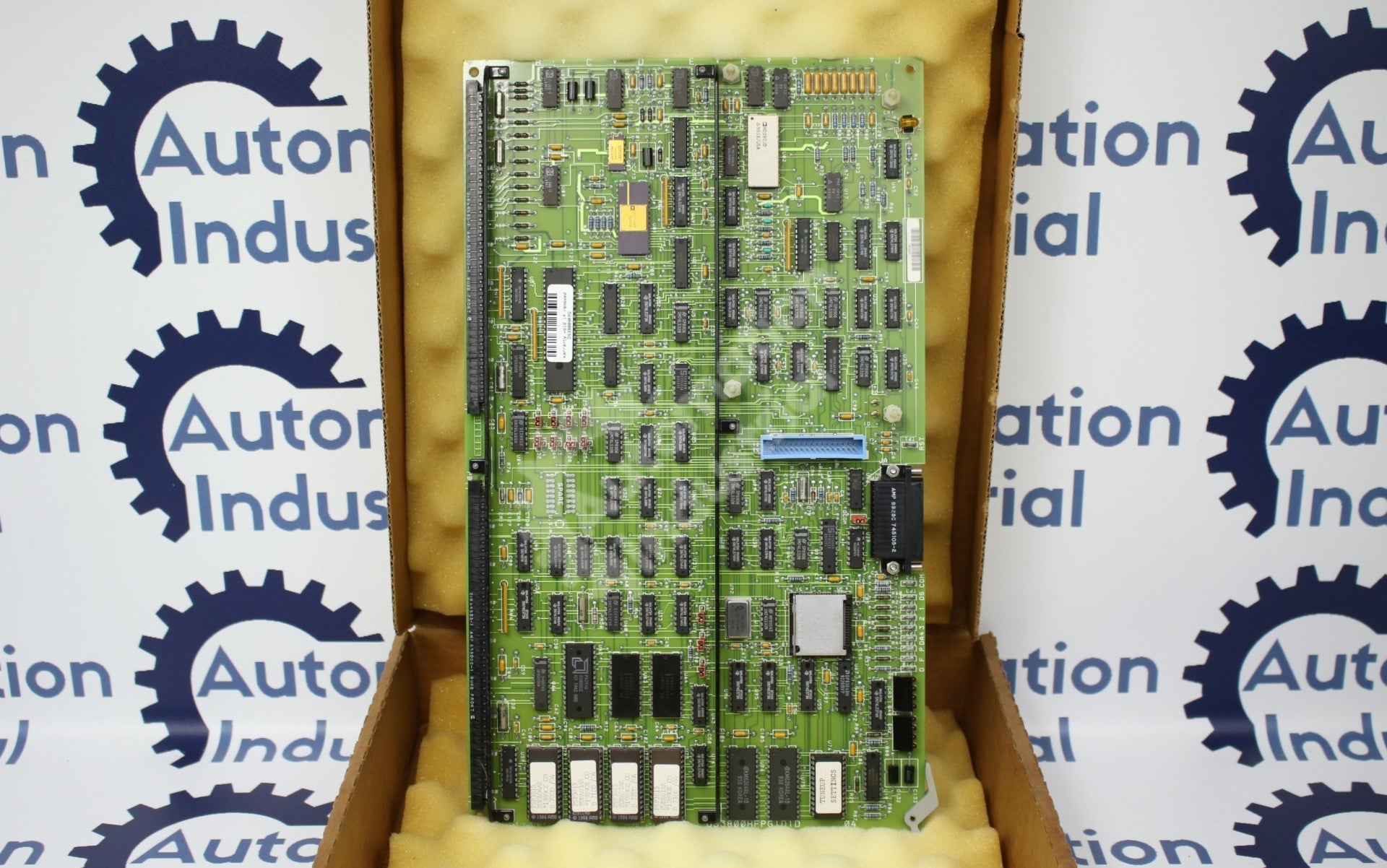

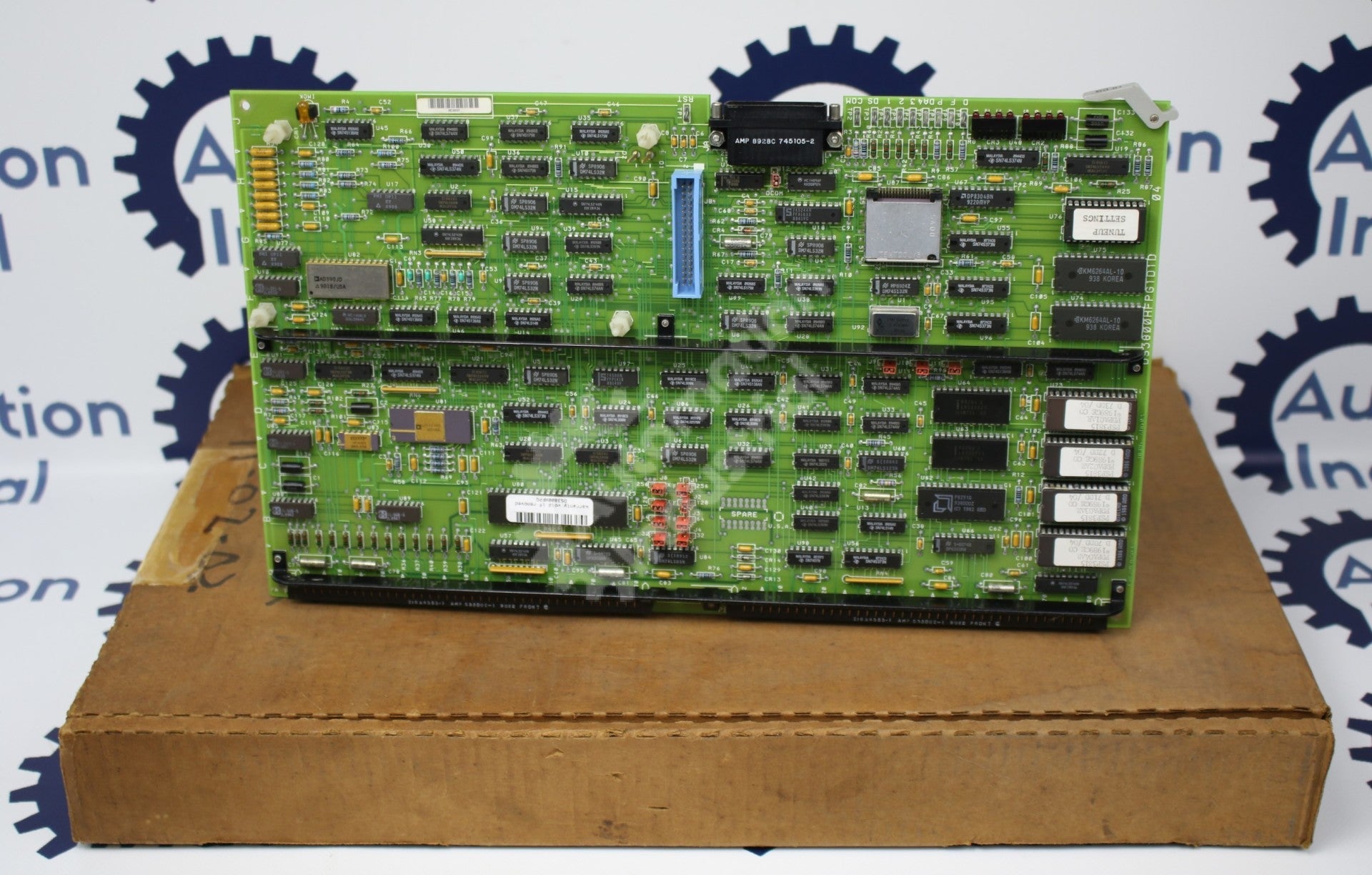

The DS3800HFPG is the Drive Control Board in GE's Speedtronic Mark IV system, built around a microprocessor and multiple EPROM modules, with a transistor-to-transistor logic (TTL) device handling interface logic between the board's integrated circuits. It's a double-width card that takes up two rack positions, secured with retention levers, with a 34-pin connector and test points on the front and a 40-pin connector on the board surface for ribbon-cable connections to neighboring cards.

Matching the 1D1D Suffix

"1D1D" follows the DS3800 series prefix and the HFPG function code as GE's revision/variant marker for this specific hardware and firmware combination. We carry this Drive Control Board across several suffixes — 1B1B, 1D1B, 1D1C, 1D1D, and 1D1G — and none of them should be assumed interchangeable without checking. Confirm against the label on your existing board, and see our GE Speedtronic Part Number Decoder for more detail on how these part numbers are generally built.

Other Cards in the Same Mark IV Rack

The Drive Control Board shares the rack with other DS3800-series cards — processor and regulator boards such as the DS3800HMPK, plus memory and analog I/O boards — all part of the same Mark IV panel. See the full lineup in our GE Mark IV DS3800 Boards collection. Panels running Mark V (DS200-series) or Mark VI/VIe (IS200-series) use a different hardware generation entirely; our Mark V vs Mark VI: DS200 to IS200 guide explains the differences.

Requesting a Quote

Send us the full part number with suffix (DS3800HFPG1D1D), a photo of your existing board's label, your turbine model and confirmation it's a Mark IV system, quantity, and urgency, and we'll get back to you within 24 hours. This unit is used, cleaned and tested, with a 1-year warranty. We ship worldwide DDP (Delivered Duty Paid) and accept purchase orders.
