An Open-Box DS200RTBAG2AHC and the Job It Does

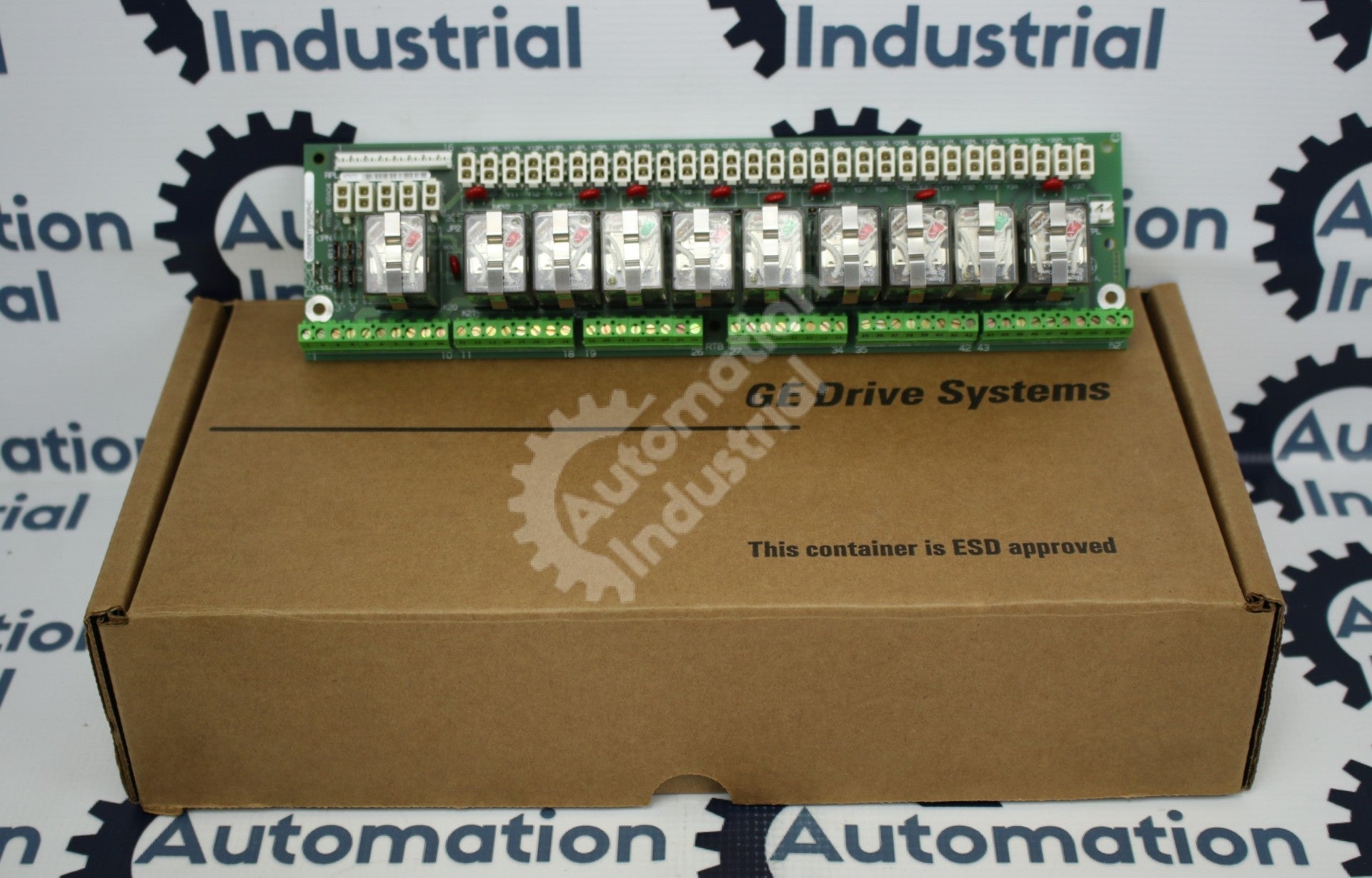

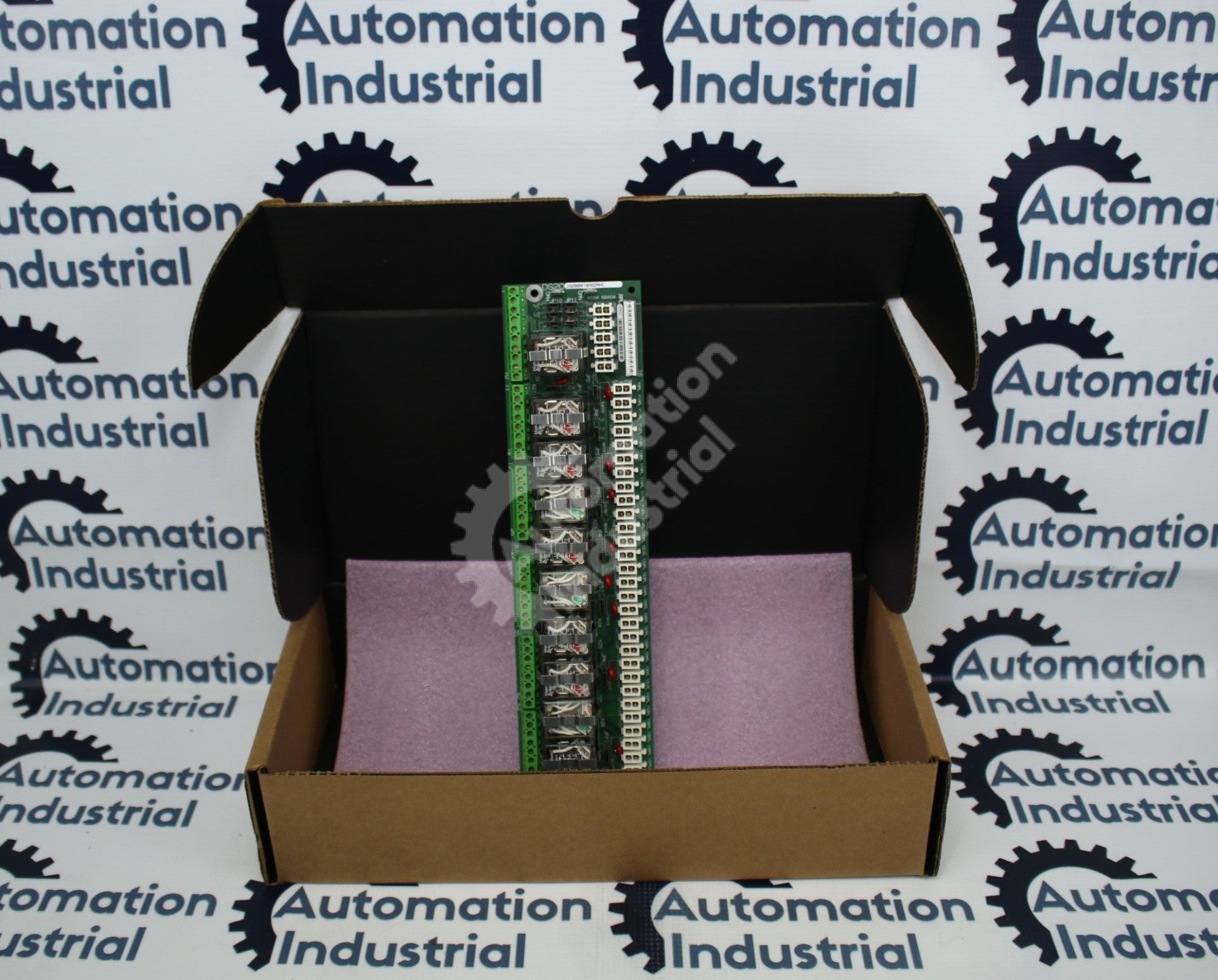

Ten relays, one board. That is the working summary of the RTBA, GE's relay terminal board from the Speedtronic Mark V-era DS200 family, and this page offers the Group 2 version at revision AHC as cleaned, tested, new surplus open-box stock. The card is an optional addition to a GE drive or exciter: when an installation needs more relay outputs than the base hardware provides, an RTBA in the drive or exciter cabinet supplies positions K20 through K29 — seven DPDT relays and three 4PDT relays, each one a plug-in part with its own status LED that lights when the relay can be energized. Loads wire to screw terminals on the board, and the relay coils answer either to the system's pilot relays directly or to remote commands.

What Connects to This Board

Electrically, the RTBA hangs off the companion LTBA board through two headers: a 16-pin connector designated RPL and a 2-pin connector designated OPTPL. That pairing is worth remembering for two reasons. First, a fault that presents at the RTBA's outputs can just as easily live in the LTBA, the ribbon between them, or the pilot-relay commands upstream. Second, when you order a replacement you should confirm the LTBA side is healthy, or you may swap the RTBA and inherit the same symptom. GE covers the pairing, the connection tables, and the configurable hardware in instruction manual GEI-100167. For the broader context of where these terminal-level cards sit in the DS200 lineup, see GE Mark V DS200 Boards Explained.

Rule Out the Cheap Fixes First

The RTBA is one of the most field-serviceable boards in the DS200 range, so treat a replacement as the last step, not the first:

• A single relay can be replaced by itself. If the position's LED is lit but the load never switches, pull that relay and substitute a known-good one. If the fault follows the relay, you needed a relay, not a board.
• A dark LED is an upstream clue. No enable at the relay means the command or its power routing never arrived — work back through the RPL cable, the LTBA, and the pilot-relay path.
• Jumpers lie in wait. The card carries moveable Berg-type jumpers, including a power-source selector documented for the K20–K22 group. A spare dropped in with unverified jumper settings will imitate a failure. Match the outgoing board position for position.
• Vibration loosens screws. Chattering or intermittently dropping loads are often nothing more than loose field-wiring terminals. Check torque before checking electronics.

Note also that the RTBA does not live inside the Mark V panel cores <R>, <S>, <T> or <C> — if your troubleshooting map starts at the panel, follow the signal out to the drive or exciter cabinet before pointing at this card.

Part Number Anatomy: DS200 + RTBA + G2 + AHC

Every element of DS200RTBAG2AHC narrows the match. DS200 is the Mark V-era series prefix. RTBA names the function — relay terminal board. G2 is the group, one of several distinct factory configurations of this design; a Group 2 board is not interchangeable with other groups by default. AHC is the revision record: functional revisions A and H and artwork revision C, following standard DS200 practice. Quote the entire string from your label when ordering, and if any character is ambiguous, send a photo. Our GE Speedtronic Part Number Decoder explains each field in depth, and the guide Mark V vs Mark VI: DS200 to IS200 shows how the numbering — and the hardware — changed in the following generation.

Building a Complete RFQ

The fastest quotes come from the most complete requests. Send us:

• The full part number, DS200RTBAG2AHC, plus a photo of the board label.
• Turbine or drive model and what the relay outputs do at your site.
• Mark V configuration — Simplex or TMR.
• Quantity required now, and any shelf-spare quantity to quote alongside.
• How urgent it is: unit down, outage scheduled, or routine stocking.
• Ship-to country so we can confirm DDP delivery details.

Quote in 24 Hours, Shipped DDP

This open-box DS200RTBAG2AHC has been cleaned and tested and carries the one-year warranty listed below. Send a Request a Quote and our team replies within 24 hours. We ship worldwide DDP and accept purchase orders.
