DS200UDSAG1ADE: Function, Placement, and What We Can Verify

Vendors list the DS200UDSAG1ADE under several near-identical names — excitation board, turbine excitation card, control system excitation board — and all of them point at the same Group 1 UDSA from GE's Mark V-era DS200 family, here at revision ADE in used, tested condition. The UDSA is associated with the excitation side of Speedtronic-era installations, the territory of the EX2000 generation of GE excitation equipment. Because GE's factory manual for this board never circulated widely, we confine our claims to what the hardware and consistent vendor records support: processing handled by an 80196 microprocessor; firmware carried on socketed EPROM modules; status broadcast from the board's face through 21 four-character displays and 32 LEDs; system signals routed through a 40-pin ribbon connector; behavior configured by a field of three-pin JP jumpers. Everything else — the exact loop role, the drawing references — should come from your site documentation, and our matching is done strictly by part number and label.

Three Failure Look-Alikes to Rule Out

Each of these presents as a failed UDSA and costs far less to fix:

• The wounded ribbon. The 40-pin ribbon cable ends in a plastic connector that shears or unseats when the cable is pulled instead of the connector body. Symptoms range from dark displays to missing I/O. Power down, reseat both ends by the connector bodies, and inspect the cable before you decide the board is gone.
• The wandering EPROM. Socketed program chips loosen over years of heat cycles. A grounded reseat — wrist strap, alternate-end lift, careful reinsertion — resolves erratic or dead-processor behavior often enough to always be worth the ten minutes.
• The inherited jumper map. Three-pin jumpers set board behavior, and boards that have lived through previous swaps may carry someone else's configuration. Verify against your drawings or the original board before trusting any symptom.

And a routing check: this is excitation-side hardware. If the alarm trail leads back into the Mark V panel cores <R>, <S>, <T> or <C>, the suspects live there, not on the UDSA.

Reading G1ADE: Group, Revisions, Artwork

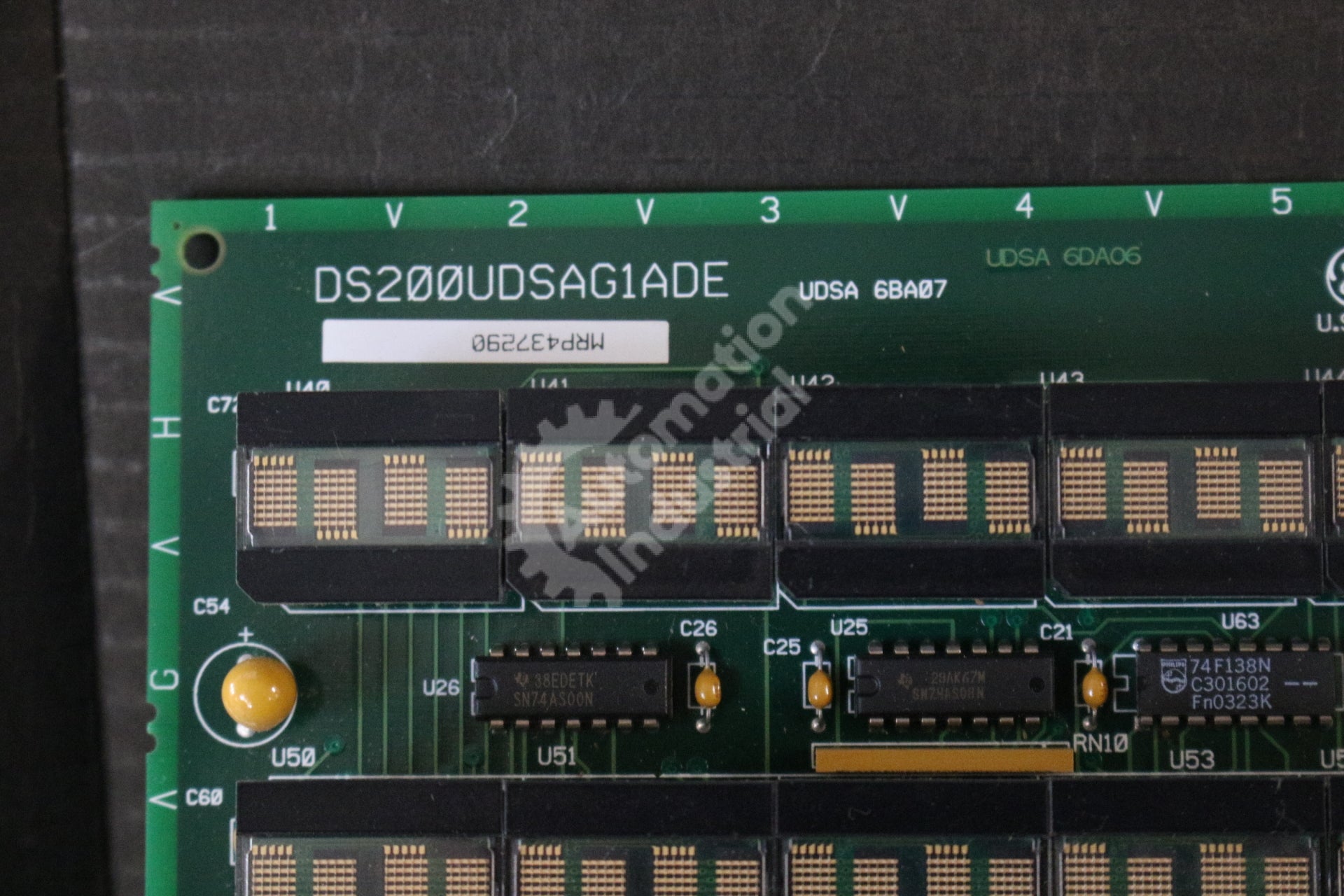

The part number carries the match criteria. DS200 is the series prefix of the Mark V-era board family; UDSA is the functional acronym; G1 marks the Group 1 configuration; ADE records the build state under the standard DS200 convention — functional revisions A and D, artwork revision E. On a family with thin factory documentation, the revision block is not decoration: order the full string from your label, and when in doubt, send the label photo and let us confirm the fit. Our GE Speedtronic Part Number Decoder explains every field, including how groups differ from revisions.

The Companion Hardware Question

A UDSA replacement rarely travels alone. Two companions deserve attention at order time. First, the ribbon: if the old cable's connector shows any damage, replace the cable with the board, or the new board wakes up with the old symptoms. Second, the firmware: surplus UDSA stock is documented arriving with EPROM sockets empty, so your site's chips — recovered from the failed board — are part of the replacement plan. Beyond those, the UDSA's DS200 siblings and the wider Speedtronic range are covered in GE Mark V DS200 Boards Explained, stocked in the GE Mark V DS200 Boards and GE Speedtronic Turbine Control Boards collections, and compared against the later IS200 platform in Mark V vs Mark VI: DS200 to IS200.

Your RFQ Checklist for This Board

• Part number in full: DS200UDSAG1ADE, plus any additional label markings.
• Photos of the label and jumper area — the fastest route to a confirmed match.
• Equipment context: exciter or drive model, generator, turbine, and Mark V Simplex or TMR.
• Ribbon-cable condition and EPROM recoverability from your failed board.
• Quantity, destination country, and the urgency of the need.

Quotes in 24 Hours — POs Accepted

This used DS200UDSAG1ADE has been cleaned and tested and includes the one-year warranty stated below. Press Request a Quote and our answer reaches you within 24 hours. We deliver worldwide on DDP terms and accept purchase orders.
