GE DS200TCTSG1ACC: The Mark V Simplex Trip Board

The DS200TCTSG1ACC is a Simplex Trip Board from GE's SPEEDTRONIC Mark V turbine control system. In GE's DS200 naming, the four-letter code TCTS identifies the board's function and the trailing G1ACC pins down the exact group and hardware revision. This unit is offered used, cleaned and tested, and it belongs to the same trip-relay family found in Mark V panels driving heavy-duty gas and steam turbines worldwide.

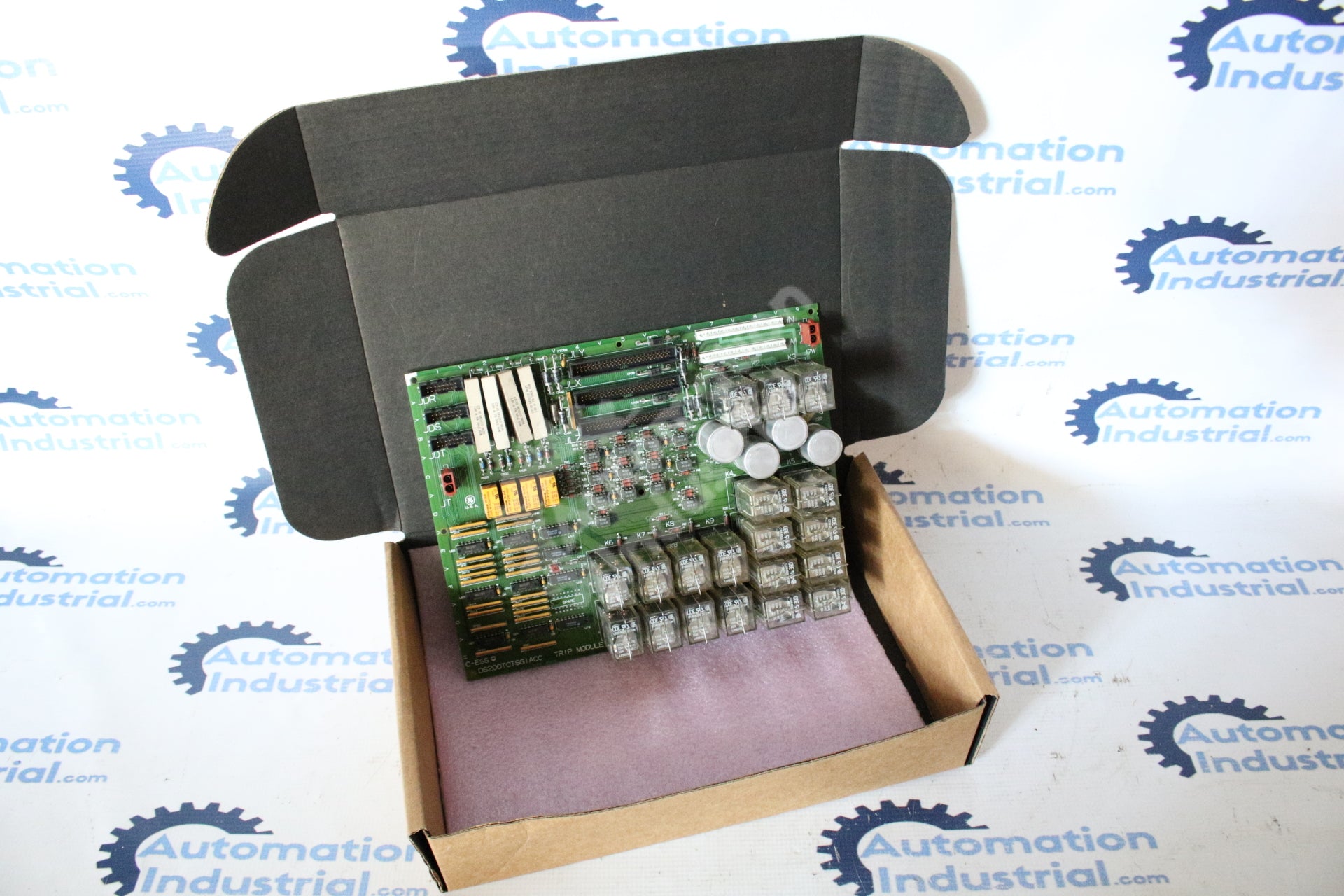

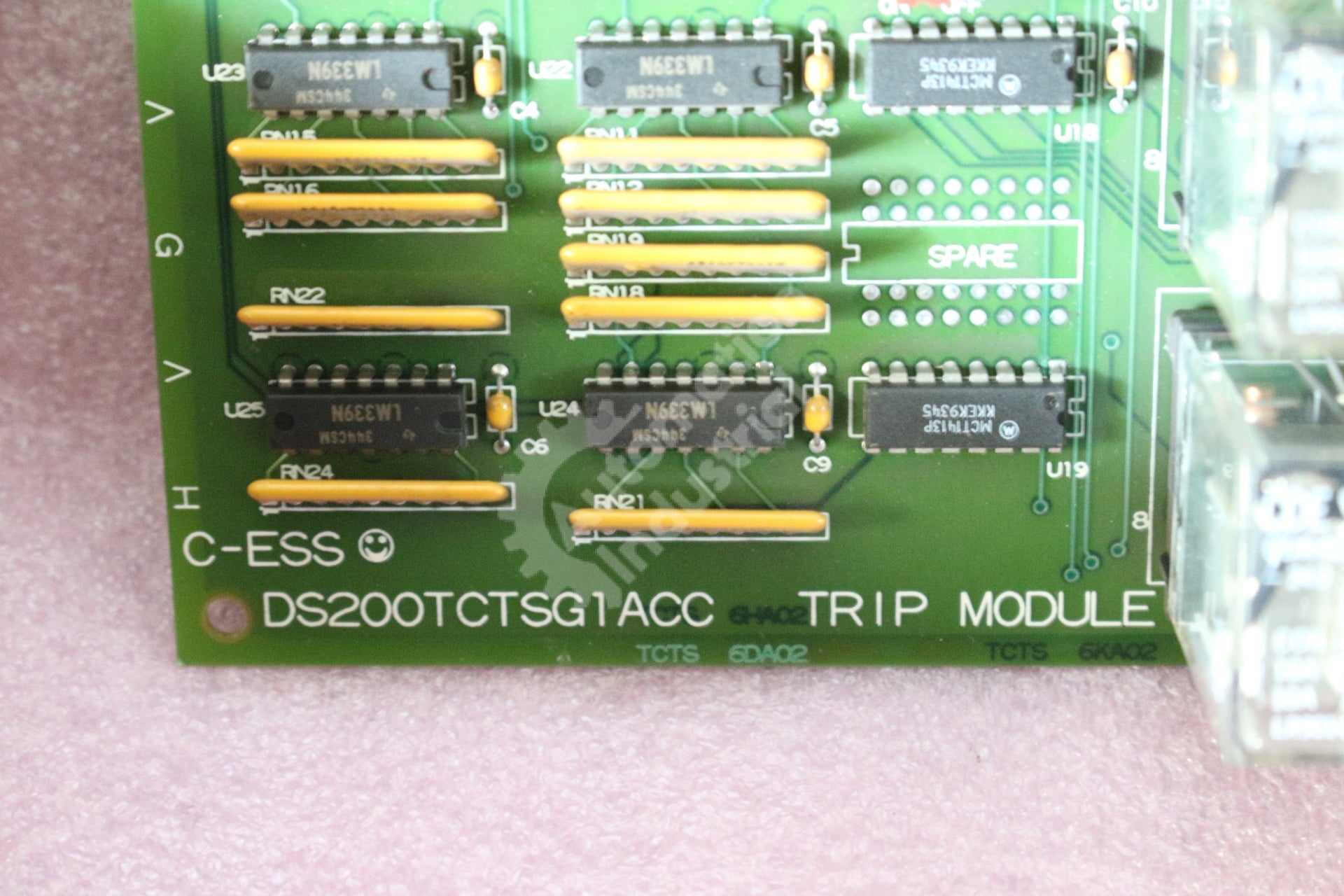

The board is easy to recognize on the bench. It carries a bank of 12 plug-in relays (labelled K1 through K12), three 16-pin ribbon connectors marked JDR, JDS and JDT, two 12-pin connectors marked JN and JM, and four 50 VDC capacitors. The relays sit in quick-connect sockets, so an individual relay can be changed in the field instead of scrapping the whole assembly.

Where the TCTS Lives in the Trip Path

The Simplex Trip Board sits in the protection/trip section of the Mark V control panel, downstream of the control processors. Its relay contacts are wired into the turbine's trip (emergency shutdown) circuit, and its ribbon connectors tie it back to the control section — the <R>, <S> and <T> cores in a TMR panel, the common <C> core, and the independent protection core <P>. Because this card is genuinely in the trip path, the trip setpoints, voting arrangement and any functional test must come from the GE service manual (GEH-5980 and the job-specific elementary drawings) and your plant's written procedure — never from a parts listing. This page is for identification and troubleshooting only. For a plain-language map of the panel, see GE Mark V DS200 Boards Explained.

Confirm It Is the Board Before You Order

A trip board is one of the most over-diagnosed cards in the Mark V, because almost anything in the shutdown chain produces the same visible result: the unit trips, or it will not come out of trip. Before you condemn the DS200TCTSG1ACC, rule out the look-alikes:

• Was the trip actually commanded? Check the alarm history on the <I> operator interface and the sequence-of-events log. If the control or protection software genuinely called for a trip, the board did its job and the fault is upstream — a process condition, a sensor, or the logic — not the card.
• Is it a single relay? The relays are pluggable and individually replaceable. One chattering or failed K-relay can imitate a dead board. Inspect and reseat before replacing the assembly.
• Field side. The trip solenoids, the hydraulic dump/trip valves and the wiring to the relay contacts fail far more often than the PCB. Confirm coil continuity and the interposing power feeding the board (values per your elementary drawings).
• Connections and neighbours. Reseat the JDR/JDS/JDT and JN/JM ribbon cables, check the mating relay terminal board (RTBA-type), and verify the control power.

Only when a spurious command is confirmed and the relays, wiring and power all check out does the board itself become the prime suspect.

Reading the DS200TCTSG1ACC Part Number

GE's code is modular: DS200 marks a Mark V DS200-series board, TCTS is the Simplex Trip function, G1 is the functional group, the following letter (A) is the functional revision, and the final two letters (CC) denote the specific board artwork/hardware revision. Groups (G1/G2/G3) and revision suffixes are not always interchangeable, so match the full string to what is installed and confirm against your drawings. Our GE Speedtronic Part Number Decoder walks through each field.

Related and Cross-Generation Boards

In the same trip and protection family you will find other TC-series cards such as the DS200TCTG turbine trip board and DS200TCTE trip module, plus the relay terminal boards they land on. If you are planning a longer-term migration, the control-system successor is the Mark VI (IS200) platform — our guide Mark V vs Mark VI: DS200 to IS200 explains how the trip and I/O functions carried over. Browse the full range under GE Mark V DS200 Boards.

What to Include in Your Quote Request

To get the right board the first time, tell us: the full part number with suffix (here DS200TCTSG1ACC); the revision printed on the board-edge label (a clear photo helps); your turbine model and Mark V configuration (Simplex or TMR); the quantity you need; and how urgently — a spare for stock or an outage on the clock.
