Why "Overflow" Is in the Name
The commercial name "RST Overflow Board" describes exactly what the DS200TCQCG1B does: when the number of analog channels an application requires exceeds what the TCQA alone can handle at position 2 of the core, the TCQC steps in at position 4 to absorb the overflow. GE's own documentation also refers to it as the "Analog IO Expander Board" — both names describe the same board.
Confirmed Functions
Besides extending channels, the TCQC supplies the excitation voltage for the position LVDTs and digitally converts the called-for fuel flow value into an analog signal. It also maintains two DENET connections that form a passive six-port bridge for that network.
It Doesn't Exist Without the TCQA
The TCQC depends on the TCQA (and the TCQB, if installed) on the same core to function — it isn't a standalone board. That has a direct practical consequence for diagnosis: an incorrect analog-channel symptom can originate on the TCQA and only appear "associated" with the TCQC because the two share the same group of signals.
Diagnose Before You Buy
- Above all, confirm the application actually has a TCQC physically installed — units with few analog channels may not have this board, even if it shows up on some generic bill of materials.
- Check the TCQA on the same core before blaming the TCQC.
- For out-of-spec voltage alarms, check the TCPS fuses and the consistency between the board/PROM revisions installed and the system's calibration file before replacing any physical board.
Reading the Part Number
DS200TCQCG1B is the base; DS200TCQCG1BJF is the full revision on the physical label. Always provide the complete code when requesting a quote.
This Unit
New surplus, no original box (open box), factory packaged, with a 1-year warranty.
Details for Your Quote
- Full part number with suffix (photo of the label)
- Destination core and the status of the corresponding TCQA
- Mark V Simplex or TMR
- Urgency
Request a quote through Request a Quote: response within 24 hours, worldwide DDP dispatch, purchase orders accepted.
General Information about the Product |
Part Number |
DS200TCQCG1B Mark V DS200 |
Description |

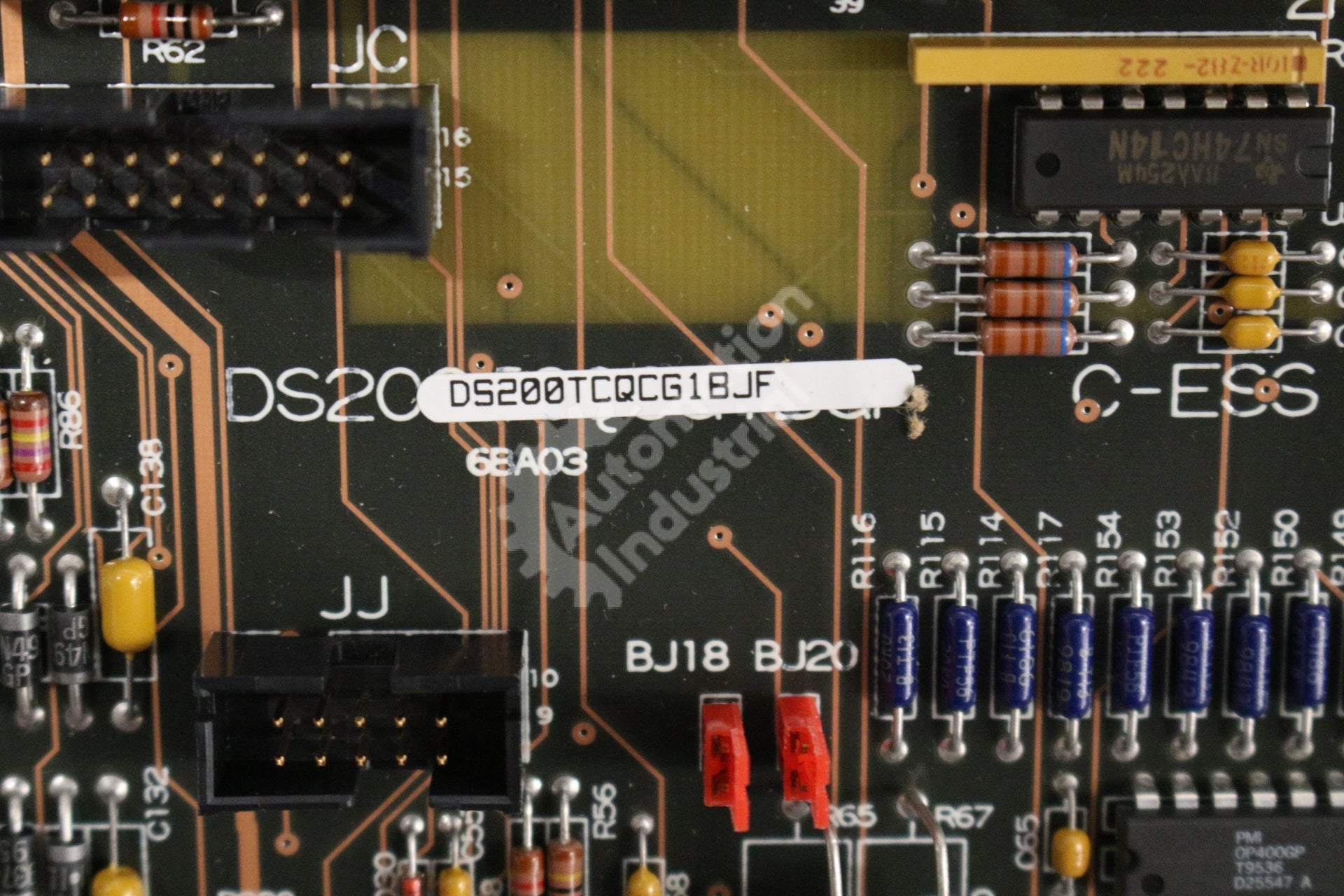

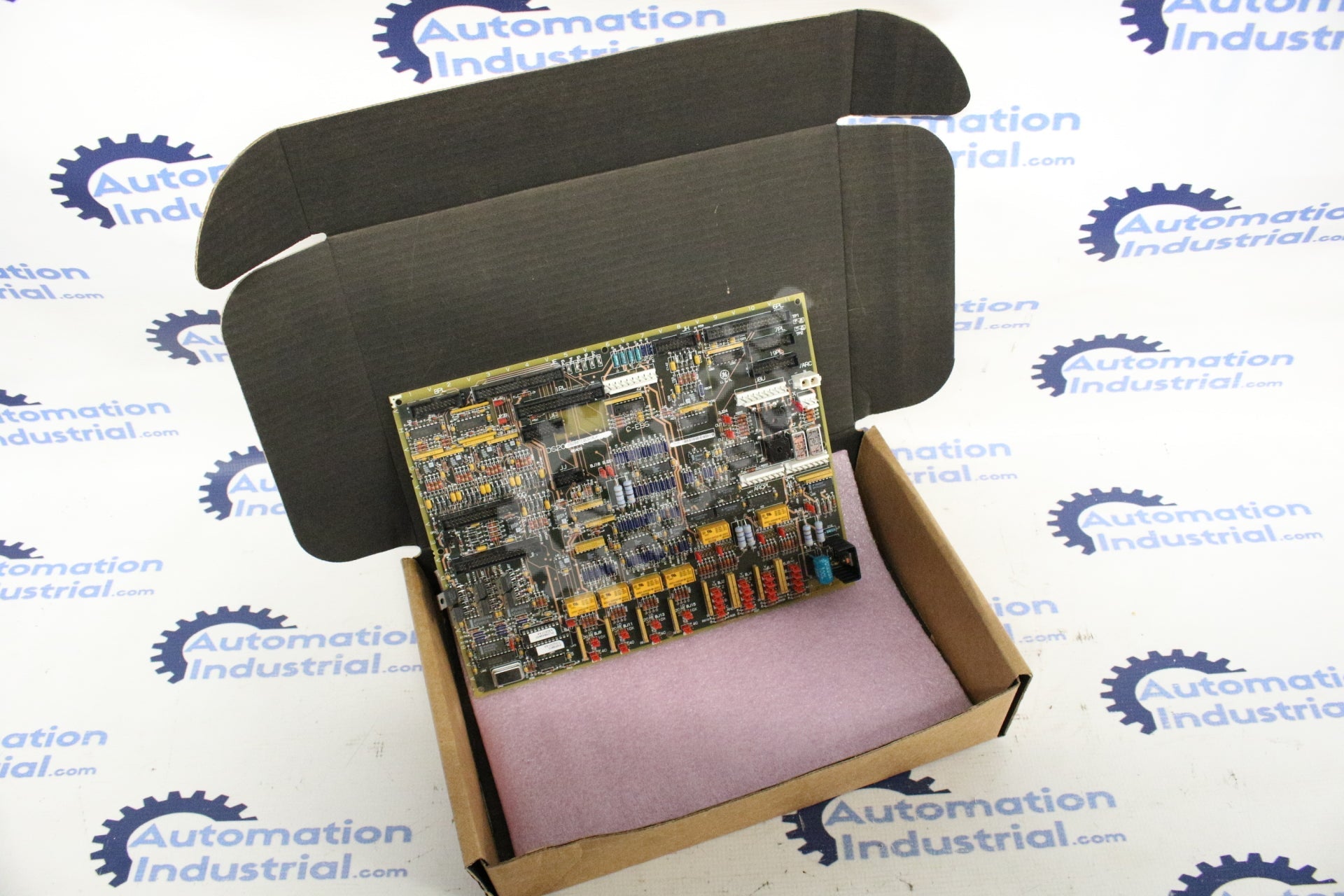

GE DS200TCQCG1B DS200TCQCG1BJF RST Overflow Board Mark V OPEN BOX |
Condition |
newSurplusNoBox Factory Packaged. With 1 Year Warranty |
