Generator and Line Signals Also Run Through the TCQA

Besides LVDT, servo-valve, thermocouple, and vibration, the DS200TCQAG1B also conditions the generator and line signals used by the Mark V — reference voltages and currents for synchronizing and electrically protecting the turbine-generator set. It's a reminder that this board doesn't just serve the mechanical/thermal side of the machine: it also takes part in the electrical interface with the generator.

Where It Lives and Why Redundancy Matters

The TCQA occupies position 2 of each of the Mark V's <R>, <S>, and <T> cores — three physical copies of the same function, voting against each other. That changes the correct way to diagnose it: before deciding a specific core's board is at fault, compare the same signal (a generator voltage, for example) across all three cores. An isolated mismatch in one core points to that hardware; a mismatch across all three points to the sensor or the shared field wiring.

Why a Used, Tested TCQA Still Earns Its Keep

The Mark V has been off the production line for years, and the TCQA is one of the most sought-after replacement boards because it concentrates so much instrumentation in a single point. A used unit, cleaned and tested, with a warranty, tends to be the fastest option available when the need is to restock safety inventory without waiting on a repair.

Diagnose Before You Buy

• If the suspect signal is generator or line related, confirm the problem isn't in the potential/current transformer itself or in the wiring to the terminal board before blaming the TCQA.
• Compare the board revisions installed across all three cores — mixing different revisions within the same voted set is a known cause of intermittent mismatches.
• Rule out the STCA (the network driver board that precedes the TCQA in the core's chain) before replacing the TCQA.

Reading the Part Number

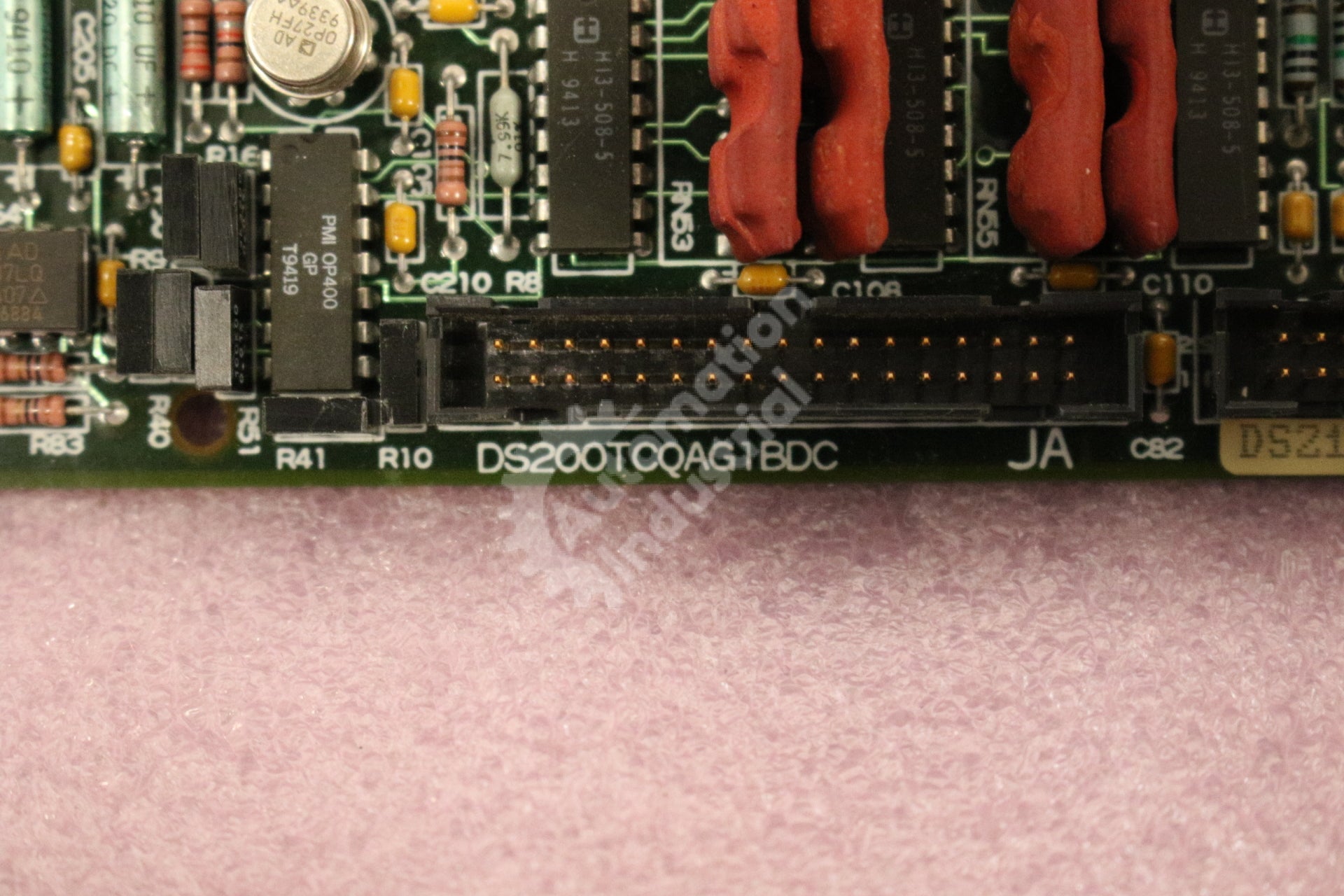

DS200TCQAG1B is the base (DS200 family, TCQA function, G1 group, B revision); DS200TCQAG1BDC is the full revision stamped on the physical label. Always provide the complete code when requesting a quote.

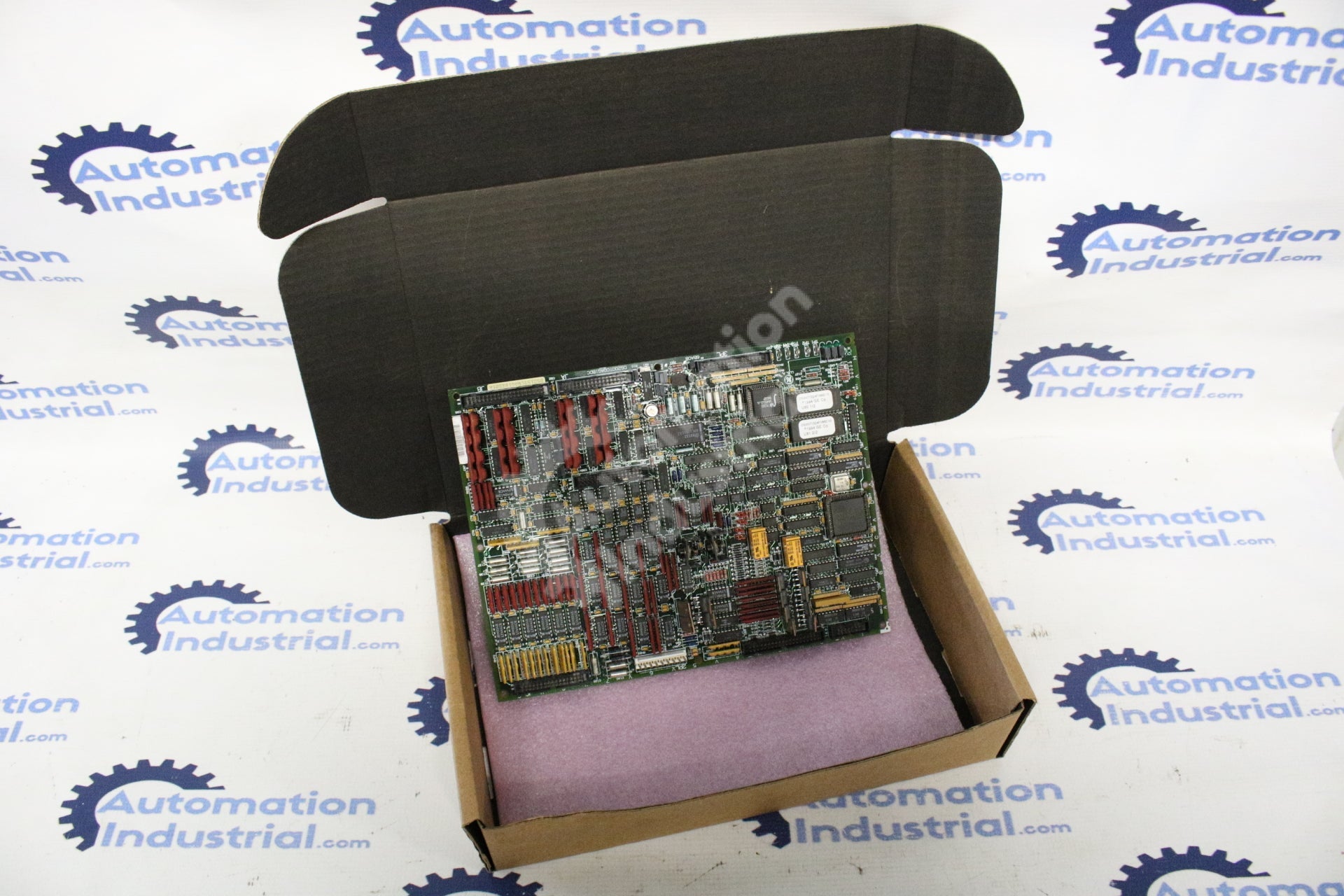

This Unit

Used, cleaned and tested, with a 1-year warranty.

Details for Your Quote

• Full part number with suffix (photo of the label)
• Affected core and the revisions installed in the other two cores
• Mark V Simplex or TMR
• Quantity and urgency

Request a quote through Request a Quote: response within 24 hours, worldwide DDP dispatch, purchase orders accepted.
