The Role of DS200TCDAG1BFD in a Mark V Cabinet

TCDA is the acronym GE uses for the Digital I/O board in the Speedtronic Mark V turbine control system, and DS200TCDAG1BFD is a G1-group example of that card. Its job: take in field contact signals (limit switches, permissives, status points) and drive relay outputs to contactors, solenoids, and annunciators, with each terminal's function assigned through the turbine's software configuration rather than fixed card wiring.

This card is installed in one of the Mark V's control cores – <R>, <S>, or <T> in a TMR panel, or the single core of a Simplex panel – and TCDA cards are also documented as part of the <C> communication core card set on many systems. The TCDA works with a companion relay board (TCRA) and I/O boards such as TCQA, TCQE, and TCEA, tied together on the IONET.

Rule Out These Causes Before You Replace the Card

A TCDA diagnostic alarm doesn't always mean the TCDA has failed. Real Mark V troubleshooting threads show several non-card explanations for classic TCDA symptoms – continuous I/O state changes, repeated "card lost" alarms after a trip:

• IONET termination resistors on the wrong card. Termination should be IN at the TCDA and OUT on every TCEA card in the loop; get that backwards on even one TCEA and you'll see the same fault pattern with a good TCDA in place.
• The TCPS power supply feeding the core, rather than the TCDA – check its output rails first.
• Ripple or transient voltage on the DC control bus, from a battery charger or from de-energizing unsuppressed DC coils near the panel.
• An unresolved PROM/firmware revision. Some IONET communication faults were fixed by GE with a PROM upgrade, not a board swap.
• A loose card or cable connector, or corrosion on a connector pin.

Keep the TCDA and its relay partner, TCRA, separate in your thinking: TCRA has electromechanical relays that wear with switching cycles, while the TCDA is solid-state logic without that wear mechanism. A relay output that won't energize is more often a TCRA issue. There's no fixed service life on a TCDA – plenty run for eight-plus years without a problem, and general Mark V card experience puts mean time between failures in the low hundreds of thousands of hours, with cabinet heat, humidity, dust, and voltage transients being the more common real-world triggers rather than age on its own.

Reading DS200TCDAG1BFD

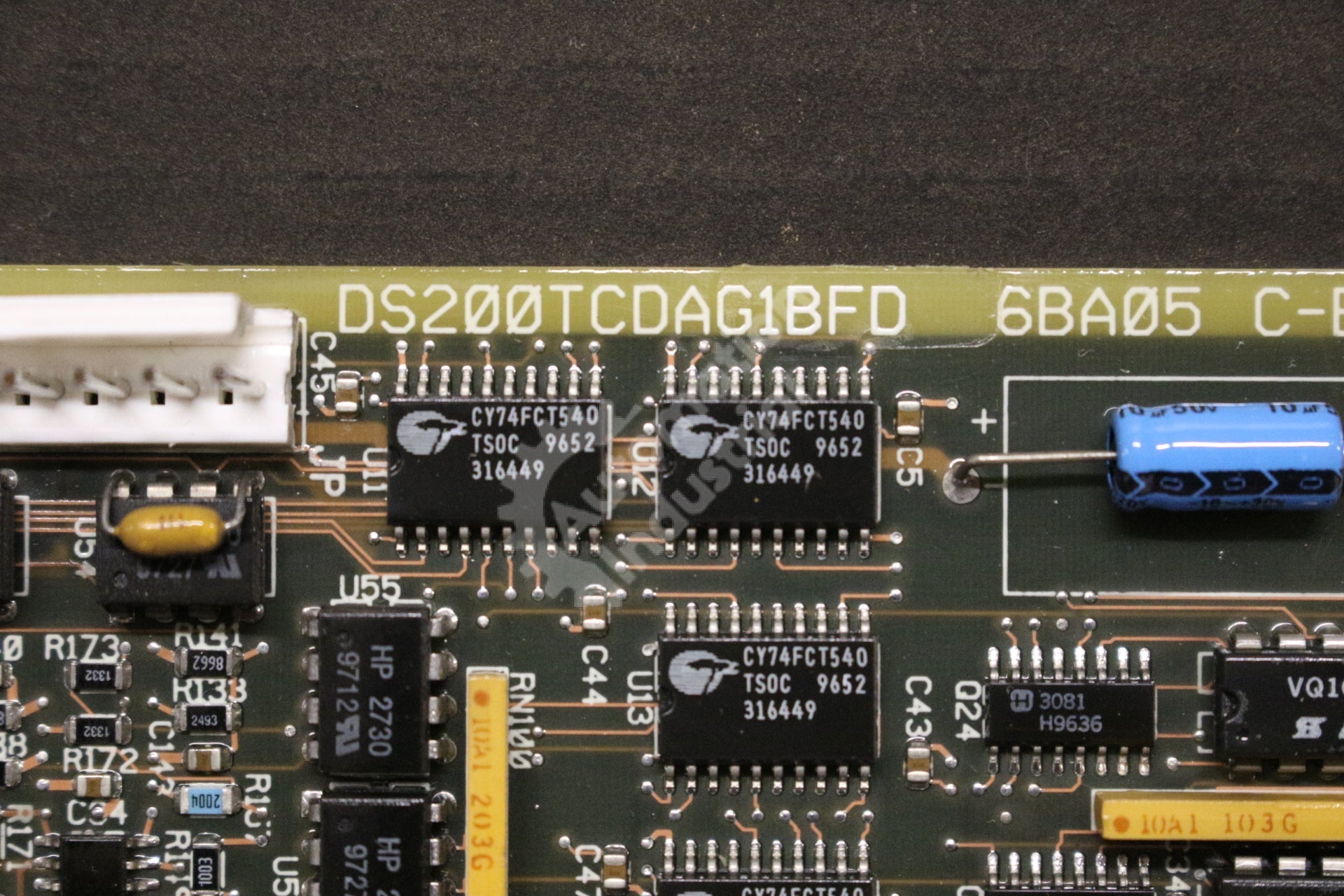

DS200 is the Mark V-era series prefix, TCDA is the Digital I/O functional acronym, G1 is the product grouping, and BFD is the specific functional and artwork revision combination carried by this unit. Treat G1 and H1 TCDA cards as separate hardware groupings rather than interchangeable revisions of the same board. Within one group, later revisions are usually backward-compatible with earlier ones, but confirm against your documentation before assuming so. Order and quote using the full string – DS200TCDAG1BFD – matched against the label on the card you're pulling.

Related Boards and Longer-Term Alternatives

TCDA is usually discussed together with TCRA, TCQA, TCQE, TCEA, STCA, and UCPB, since all share the same core and troubleshooting context. If your site is looking at a platform change, GE's Mark VI system uses IS200-series boards in place of the DS200 series, with a different I/O architecture – see our Mark V vs Mark VI: DS200 to IS200 guide. For how the part numbers themselves are constructed, see the GE Speedtronic Part Number Decoder, and for context on the DS200 board family as a whole, see GE Mark V DS200 Boards Explained.

What to Include When You Request a Quote

• The complete part number and suffix (e.g., DS200TCDAG1BFD)
• A photo of the label, if possible
• Turbine model and Mark V configuration (Simplex or TMR)
• Quantity
• Whether you need this urgently or are planning ahead

Request a Quote

This DS200TCDAG1BFD is offered used, clean and tested, backed by a 1-year warranty (see below). We don't list prices online because Mark V board quotes depend on exact revision availability – submit a Request a Quote and we'll respond within 24 hours. We ship worldwide DDP, accept POs, and support both scheduled maintenance and urgent turbine-down orders.

General Information about the Product
Part Number	DS200TCDAG1B Mark V DS200

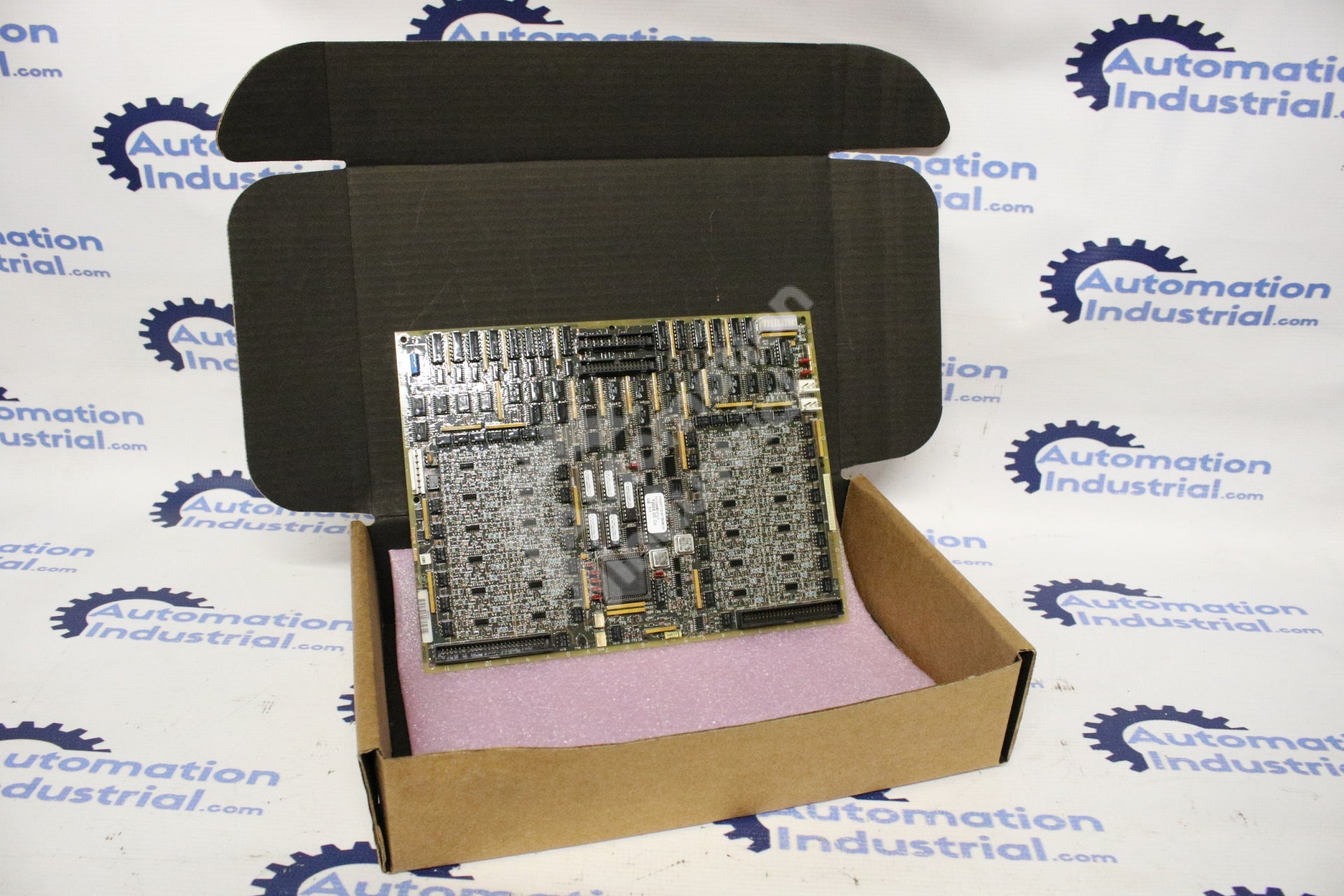

Description	GE DS200TCDAG1B DS200TCDAG1BFD Digital I/O Board Mark V
