What This Board Does on a Mark V Panel

The TCDA is GE Speedtronic Mark V's Digital I/O board, and DS200TCDAG1ADA is a G1-group unit of that design. Functionally, it is the bridge between the turbine control logic and the field wiring: contact inputs (switches, limit contacts, permissive signals) come into the panel through this card, and relay-driven outputs to solenoids, contactors, and annunciators go out through it. The specific personality of each point – input or output, and what it means – is assigned in software, so two TCDA cards of the same part number are functionally interchangeable even though the field terminations never move.

Physically, this card lives in one of the Mark V's control cores – <R>, <S>, or <T> in a TMR panel, the single core in a Simplex panel – and TCDA also appears among the cards documented in the <C> communication core on many systems. It shares the rack with a companion relay board (commonly called TCRA) and I/O boards such as TCQA, TCQE, and TCEA, all connected on the panel's IONET.

Before You Buy: How to Confirm the TCDA Is Actually the Problem

A large share of "bad TCDA" calls turn out to be something else entirely once someone checks the basics. Documented Mark V troubleshooting cases show the following non-card causes behind classic TCDA symptoms (continuous I/O state cycling, repeated card-lost diagnostics):

• IONET termination resistors set wrong on a TCEA card. The IONET should run through all TCEA cards and terminate only at the TCDA; a termination jumper left IN on a TCEA (instead of OUT) produces the same fault pattern as a failed TCDA.
• Noise or ripple on the control power bus, including spikes from a battery charger or from de-energizing unsuppressed DC coils near the panel.
• A PROM/firmware revision gap. GE published guidance resolving certain IONET communication faults through a PROM upgrade rather than a board replacement.
• The TCPS power supply card, not the TCDA itself – check supply voltages at the TCDA before condemning the card.
• A loose connector or corroded pin on the card or its ribbon cable.

Also worth knowing: the TCDA and the TCRA relay board it works with fail for very different reasons. TCRA relays are electromechanical and wear out with switching cycles; the TCDA is solid-state and doesn't share that wear mechanism. A stuck or chattering relay output points to the TCRA far more often than to this card. On lifespan, there is no fixed retirement age for a TCDA – many run trouble-free for eight years or more, and industry experience puts mean time between failures for Mark V cards generally in the low hundreds of thousands of hours, with cabinet heat, humidity, dust, and voltage transients driving most real failures rather than age by itself.

A Note on Open-Box Condition

This particular unit is listed as new-surplus, open-box stock: factory-sourced material that has been removed from its original retail packaging (for inspection, inventory handling, or resale) but not installed or field-used. It carries the same 1-year warranty as our other new-surplus listings. If you want to confirm cosmetic and label condition before it ships, ask for photos when you request your quote.

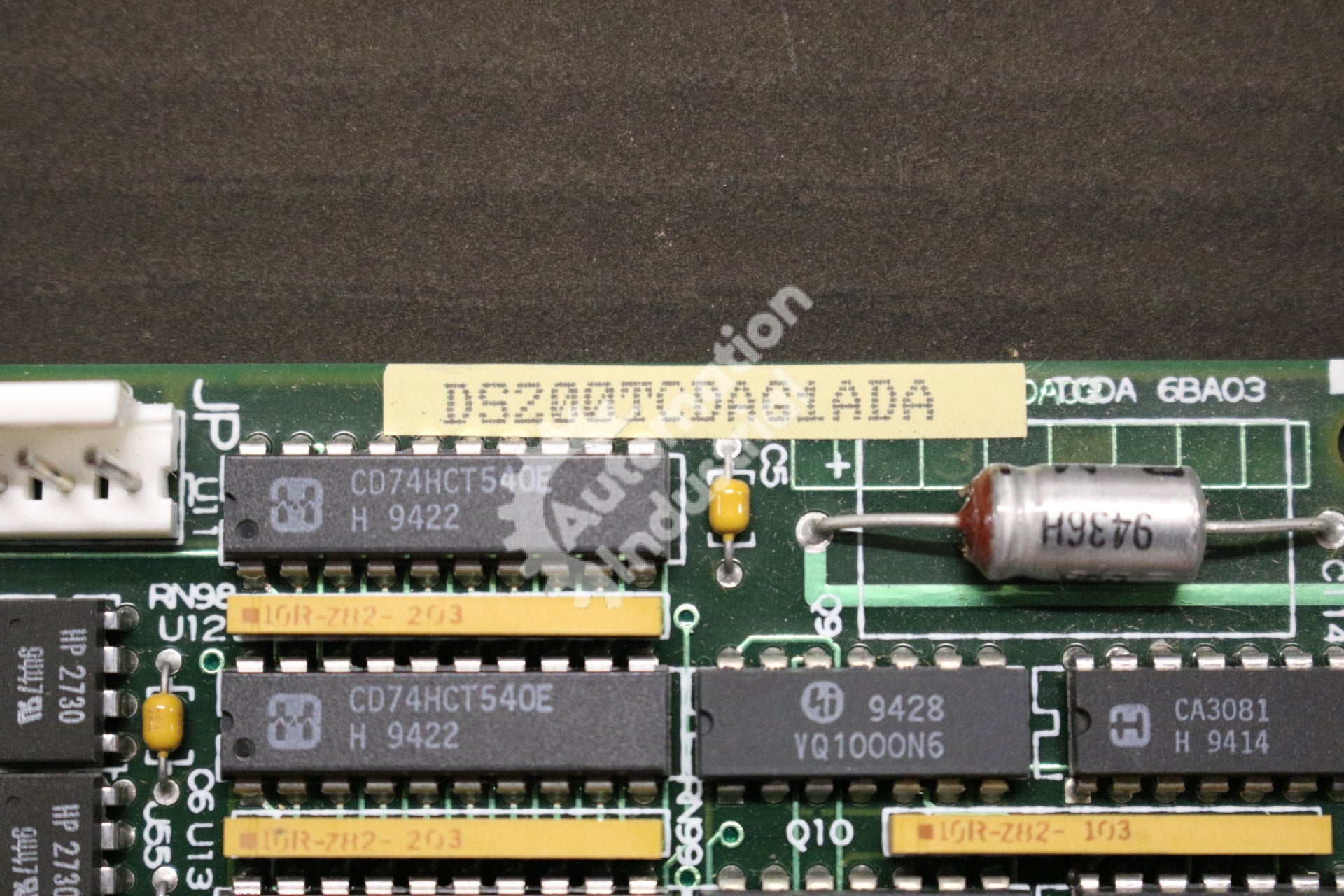

Decoding DS200TCDAG1ADA

Reading the string left to right: DS200 is the Mark V-era board series prefix, TCDA is the functional acronym for this Digital I/O design, G1 is the product grouping, and ADA is this unit's specific functional and artwork revision combination. G1 and H1 TCDA boards are different hardware groupings, not simply older/newer revisions of one another, so don't treat them as automatically interchangeable. Inside a single group, later revision letters are generally backward-compatible with earlier ones, but confirm against your own documentation rather than assuming. Always match the complete part number, not just "TCDA," when sourcing a replacement.

Related Boards and Longer-Term Migration

The TCDA is normally discussed alongside TCRA, TCQA, TCQE, TCEA, STCA, and UCPB, since these boards share the same rack and troubleshooting context. For plants planning a platform change, GE's Mark VI system replaced the DS200 series with IS200-series boards and a different I/O architecture – see our Mark V vs Mark VI: DS200 to IS200 guide for the general picture. For the logic behind the part numbering itself, see the GE Speedtronic Part Number Decoder, and for how TCDA relates to other DS200 boards, see GE Mark V DS200 Boards Explained.

What to Send With Your Quote Request

• Full part number and suffix off the label (e.g., DS200TCDAG1ADA)
• A label photo, if available
• Turbine model and panel configuration (Simplex or TMR)
• Quantity
• Urgency – scheduled outage or unplanned downtime

Request a Quote

This DS200TCDAG1ADA is offered in new-surplus, open-box condition, factory packaged and warranted for 1 year (details below). As with all our Mark V boards, pricing isn't published online – submit a Request a Quote and expect a reply within 24 hours. Alotechparts.com ships worldwide DDP, accepts POs, and can move fast for both planned work and emergency turbine-down situations.

General Information about the Product
Part Number	DS200TCDAG1A Mark V DS200

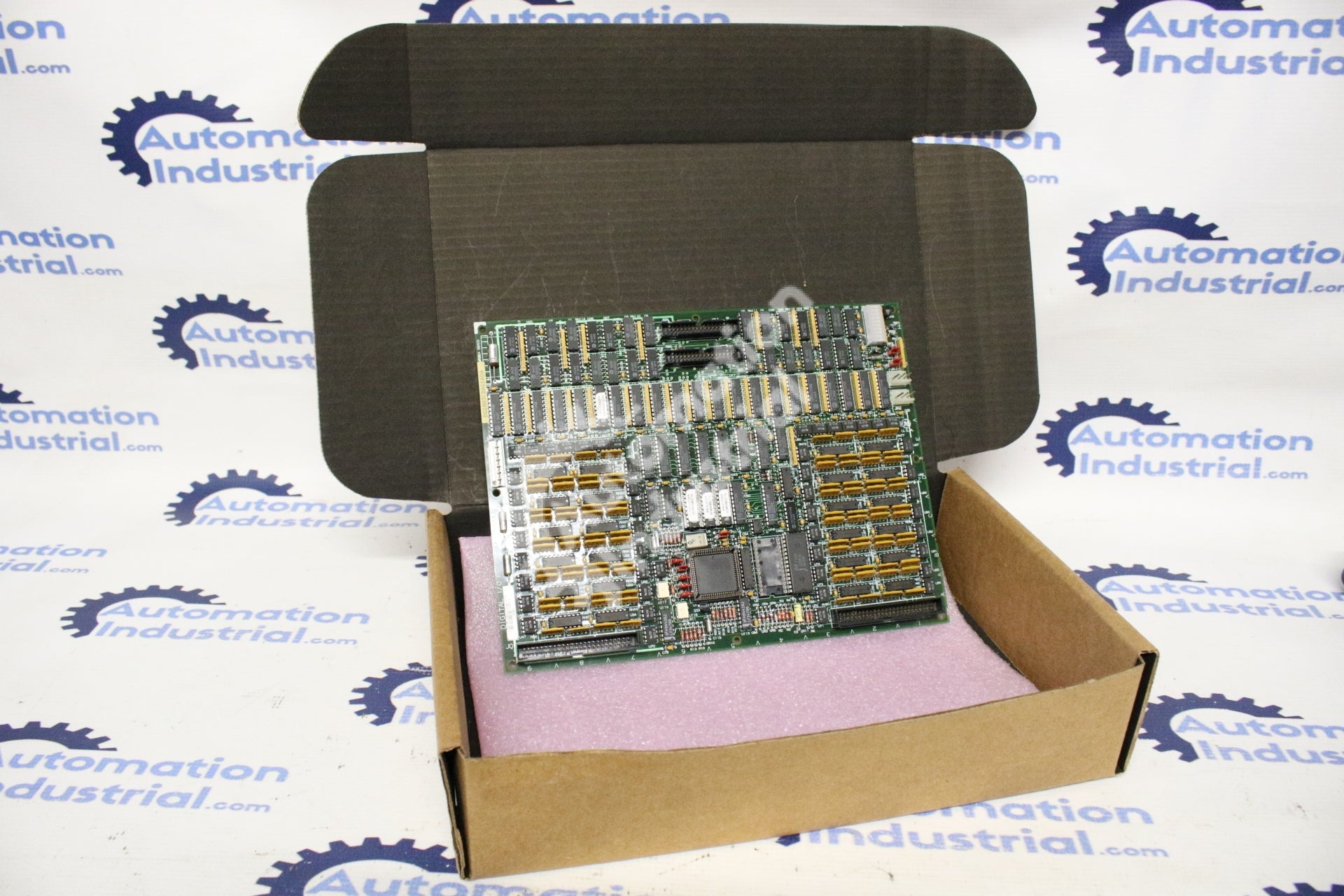

Description	GE DS200TCDAG1A DS200TCDAG1ADA Digital I/O Board Mark V OPEN BOX
Condition	newSurplusNoBox Factory Packaged. With 1 Year Warranty.
