What This Card Handles: DS200SLCCG1ABA

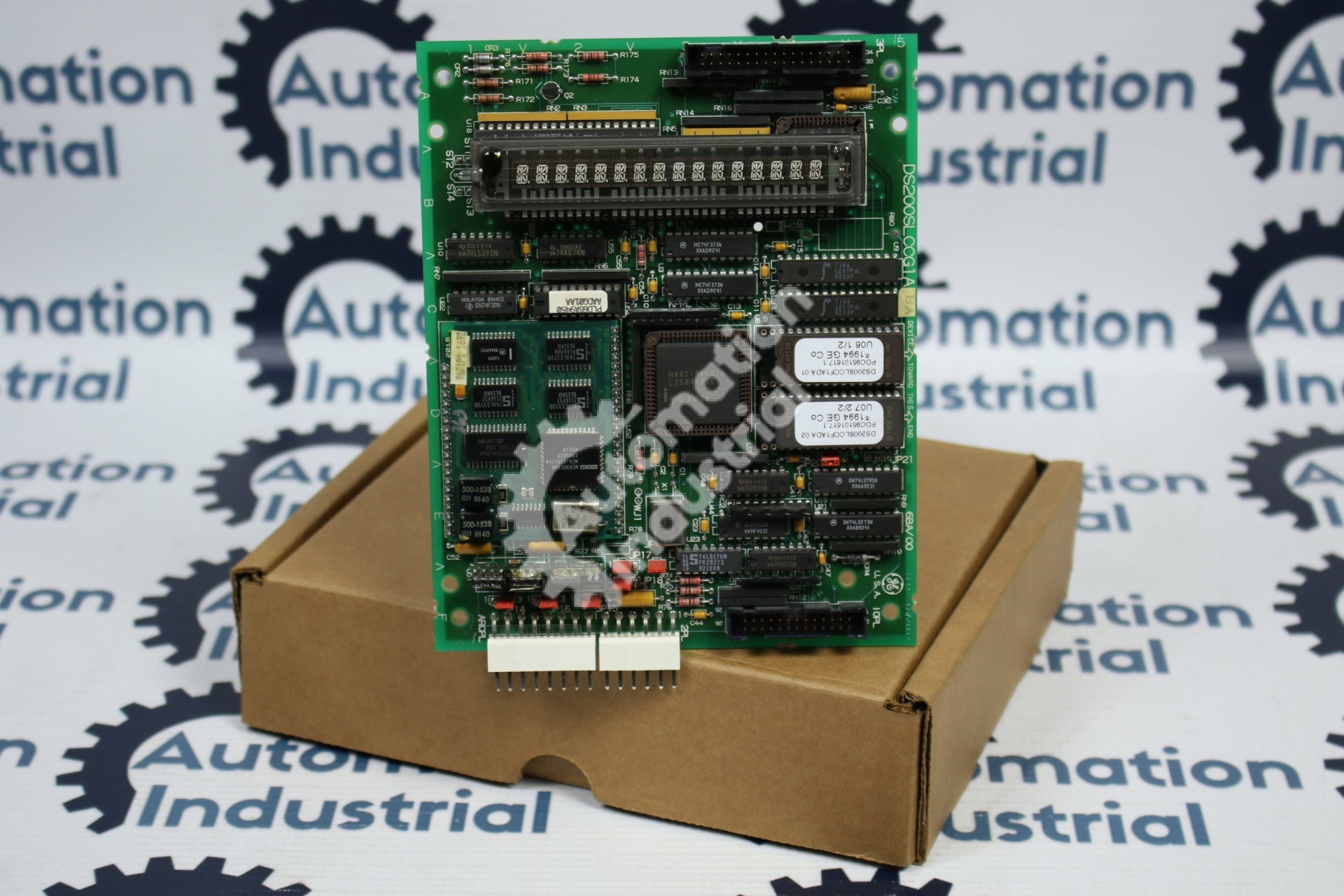

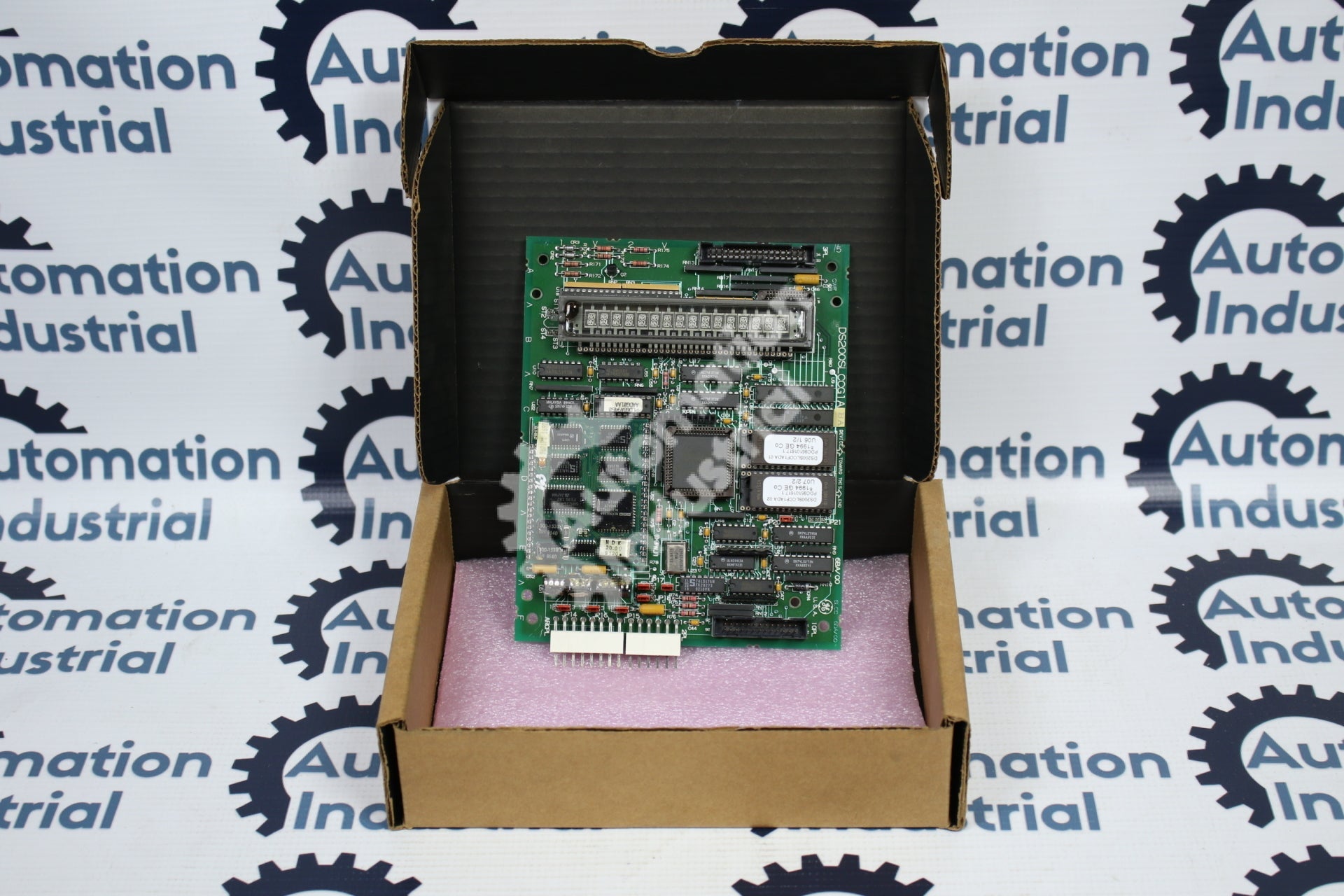

Every Mark V panel that talks to a distributed control system or shares data between processors relies on the SLCC to do it – and DS200SLCCG1ABA is a G1-group example of this LAN Communication Card. It filters and processes incoming LAN communication signals through a combination of isolated and non-isolated circuits, centered on a LAN Control Processor (LCP, U1) whose software resides in two replaceable EPROMs (U6/U7) with dedicated RAM at U8/U9. A dual-ported RAM at U5 provides the interface between the LCP and the drive control processor on the SDCC card via connector 3PL, and an attachable alphanumeric keypad/display module supports on-card configuration and fault-code readout.

This card belongs to the documented set in the Mark V's <C> (communication) core, linking to the NTB/3TB, SDCC, TCCB, and DCFB boards through a 2PL connector. As a G1-group card, it carries the DLAN and ARCNET network adaptation circuitry that a later G4-group SLCC removed entirely – the group letter here reflects a genuine hardware change, not a simple production date.

Before You Order: Confirm the SLCC Is Actually the Fault

SLCC symptoms – a frozen operator display, data that won't update – are among the easiest Mark V faults to misdiagnose. In one thoroughly documented case, an operator interface stopped refreshing live data, and the plant systematically replaced every card in the <C> core (SLCC, TCCA, SDCC, TCDA) along with the TCPS power supply card. The fault remained. What eventually helped was checking:

• Power supply voltages at the <R> and <C> test points, against the limits published in the Mark V Maintenance Manual (GEH-5980)
• The BOI (backup operator interface), which communicates with <R> directly, bypassing <C> – useful for narrowing down whether the fault is really in the communication path
• Connector corrosion or a broken cable conductor, ahead of assuming a card failure
• The TCQC card in the <R> core and its ARCPL cable to the <C> core's SLCC – a fault on either side of that link produces SLCC-like symptoms with a perfectly good SLCC installed

It's also worth remembering that a processor core doesn't reach I/O status A7 until every card inside it individually reaches A6 first. Before you condemn the SLCC, check the individual status of each card sharing the <C> core – the holdup may be the SDCC, TCCA, or IOMA card instead.

Decoding DS200SLCCG1ABA

DS200 is the Mark V-era board series prefix, SLCC identifies the LAN Communication Card function, G1 is the product grouping (with DLAN and ARCNET circuitry that later groups lack), and ABA is this unit's specific functional and artwork revision combination. Since SLCC groups map to real circuitry differences and not just a chronological revision count, always confirm your exact group requirement before ordering a substitute.

Related Boards and the Bigger Picture

The SLCC shares its <C> core with TCCA, SDCC, IOMA, and TCDA, and connects back to <R> through the TCQC card. If a platform migration is part of your plans, GE's Mark VI system replaced the DS200 series with IS200-series boards and a different communications architecture – see our Mark V vs Mark VI: DS200 to IS200 guide. For how GE structures its part numbers, see the GE Speedtronic Part Number Decoder, and for how SLCC fits with the rest of the DS200 lineup, see GE Mark V DS200 Boards Explained.

What We Need to Quote This

• The full part number and suffix, e.g., DS200SLCCG1ABA
• A photo of the label
• Turbine model and whether the panel is Mark V or EX2000
• Quantity
• Urgency – planned outage or active fault

Request a Quote

This DS200SLCCG1ABA is offered used, clean and tested, with a 1-year warranty (see below). We don't publish prices online since Mark V board quotes depend on exact revision availability – submit a Request a Quote and expect a reply within 24 hours. We ship worldwide DDP, accept purchase orders, and support both planned outages and urgent turbine-down orders.

General Information about the Product
Part Number	DS200SLCCG1A Mark V DS200
Description	GE DS200SLCCG1A DS200SLCCG1ABA LAN Communication Control Card Mark V
Condition	used Clean and Tested. With 1 Year Warranty.
