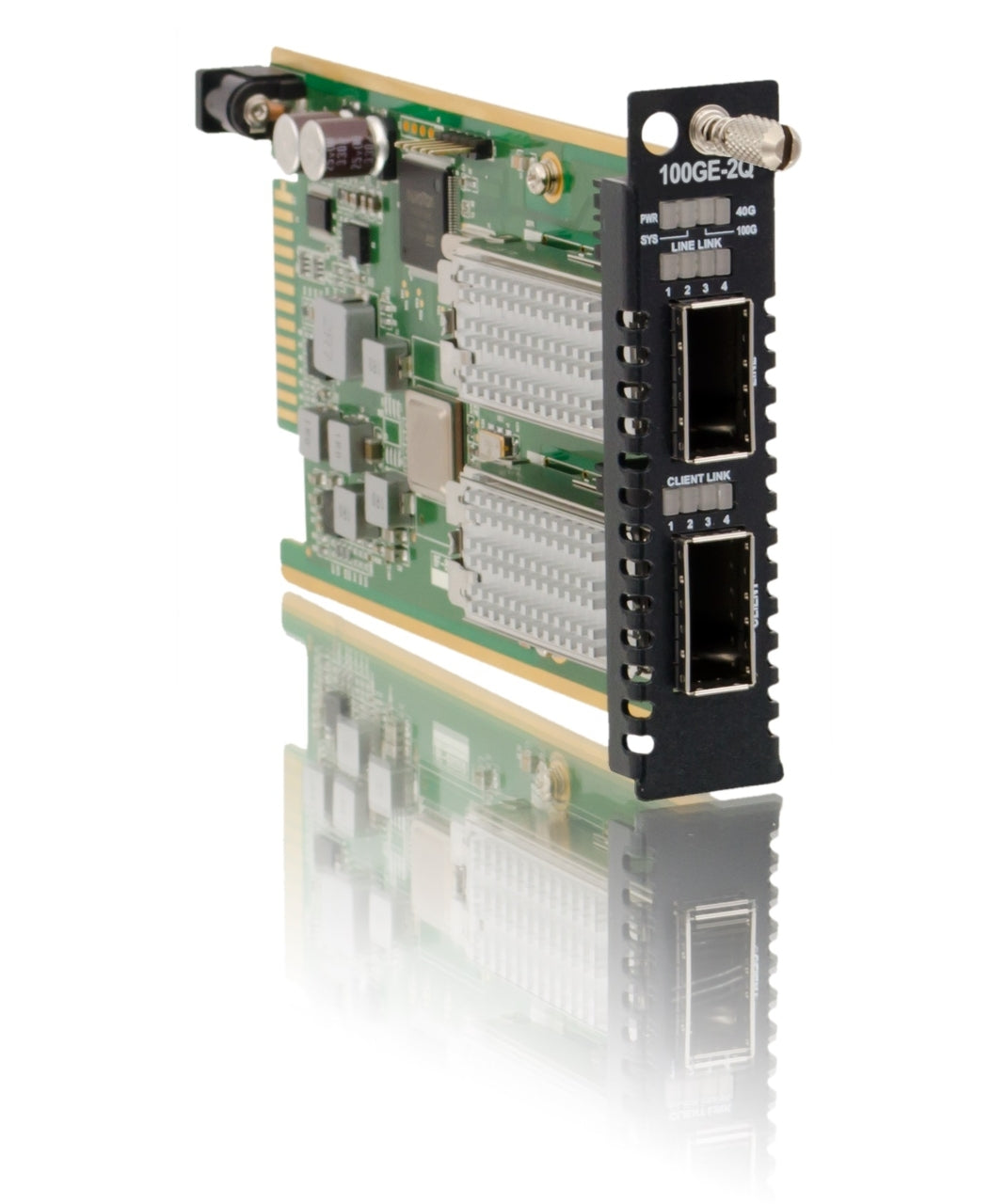

The FRM220-100GE-2Q is a 100G QSFP28 to QSFP28 3R transponder that provides media conversion and distance extension for 100G Ethernet links.
The FRM220-100GE-2Q is developed for high capacity and long- distance optical transport solutions. It is a highly integrated platform for providing a unified 100G optical transport layer, supporting various 100G client services including 100GBASE-LR4/100GBASEER4 and 100GBASE-SR4.
The FRM220-100GE-2Q is hot-swappable with two QSFP28 sockets for 100G QSFP28 transceivers. The installation and setup are simple plug and play.

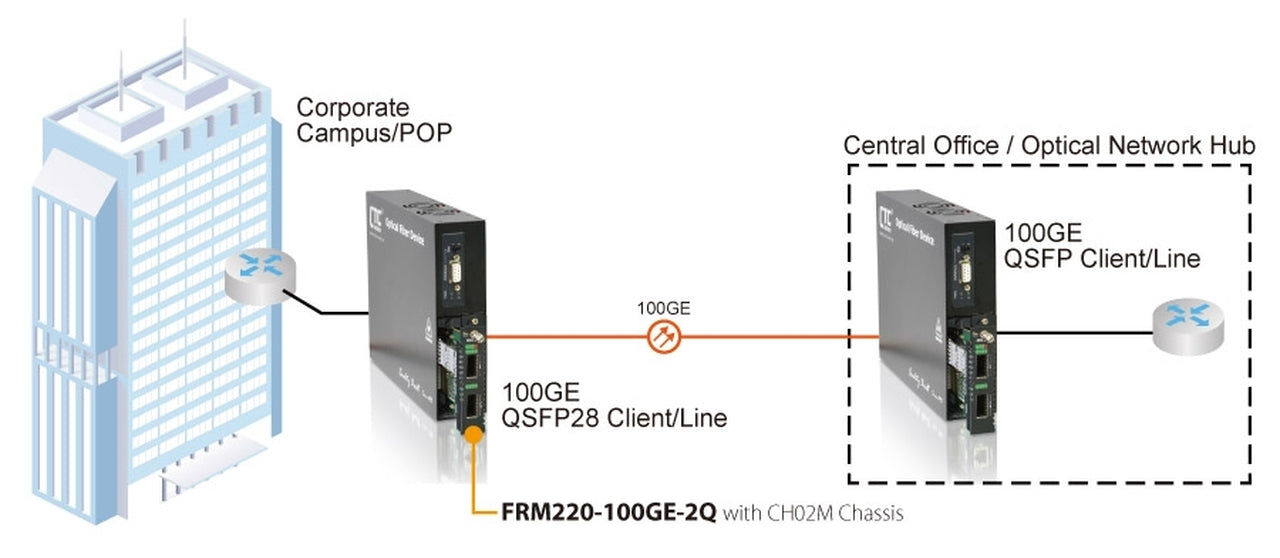

The FRM220-100GE-2Q can be inserted into any powered FRM220-CH20, CH08, CH04 chassis or CH02M, CH02/SMT standalone chassis with QSFP28 transceivers required for the application.
Features
- Device management via FRM220 chassis with NMC
- Supports 100G repeater mode or Quad 25G optical multiplexer mode
- 100G link interface -- IEEE:100G QSFP28-SR4/LR4/ER4
- QSFP28 ports for flexibility and scalability
- Hot-swap support (module and interfaces)
- Supports 2x 100G QSFP28
- Supports DMI function for QSFP28 module
- Supports Loopback test function
- 3R function.
Product Specification Sheet
Technical specifications
| Interfaces: |
Two QSFP28 slots supporting 100G multi-link (fiber) interfaces Ethernet, supports Forward Error Connection mode (FEC) |
| Connectors: |
QSFP28 slots with LC or MPO optical connectors, supporting SR4, LR4, ER4 (connectors dictated by QSFP28 module) |
| Access type: |
100G Ethernet |
| Equipment function: |
3R Transponder (Regenerator / Reshaper / Retimer) |
| Front LEDs: |
PWR, Sys, 40G, 100G, Client:Link1/2/3/4, Line:Link1/2/3/4 (12 LEDs) |
| Power: |
12V/1.5A |
| Temperature: |
0~50°C (Operating); -10~70°C (Storage) |
| Humidity: |
10~90% non-condensing |
| Consumption: |
less than 18W |
| Dimensions(WxDxH): |
155mm x 88mm x 21mm (card only) |
| Weight: |
300g (card only) |
| Compliance: |
CE, FCC, LVD, RoHS |
| MTBF: |
65,000 hours |
