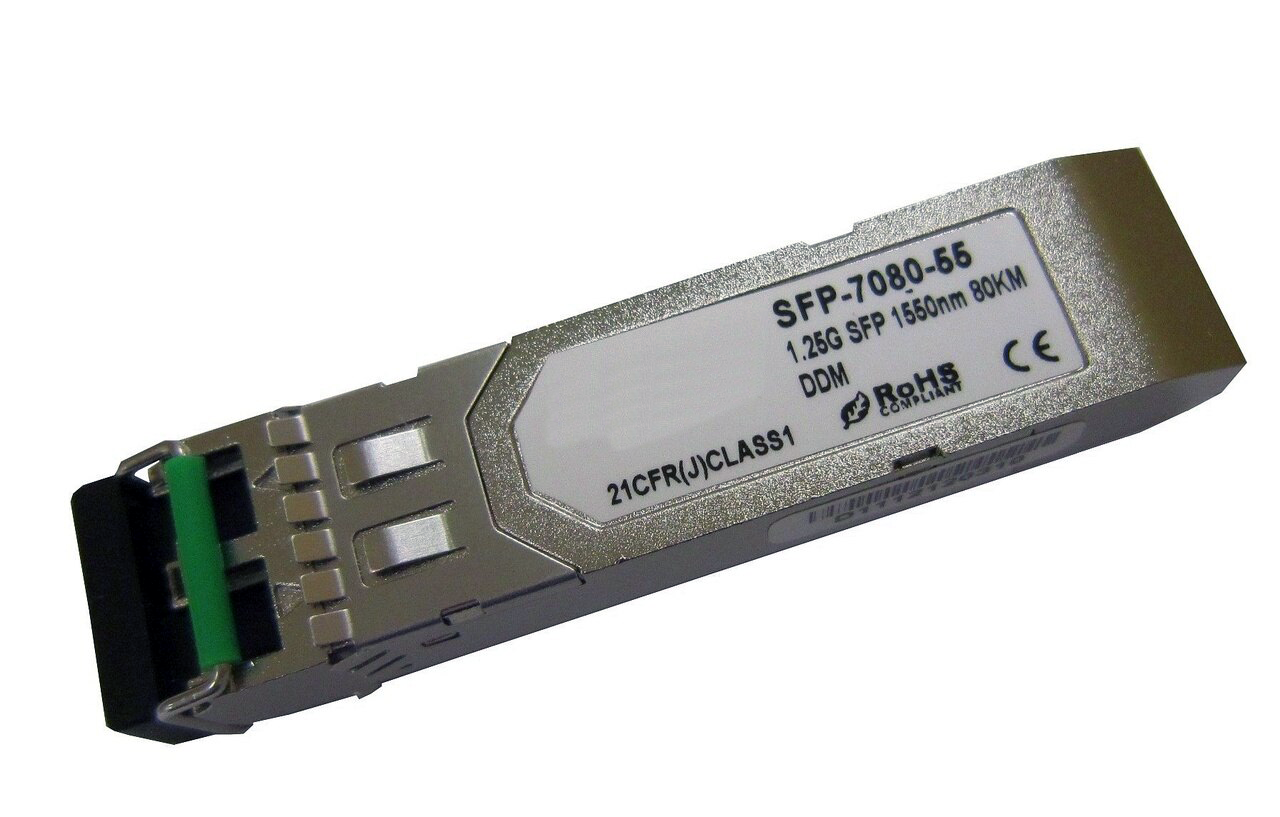

The capacity of SFS-7080-Z55 module is 1.25Gbps (Gigabit rate). The transceiver is able to work on long-haul 9/125um single-mode fiber for up to 80Km distance. The fiber standard for SFS-7080-Z55 is 1000Base-ZX. SFP module supports DD (Digital Diagnostic) functions.
|
UPC:
|
811704010680
|
|
INTERFACE TYPE:
|
Gigabit Ethernet
|
|
FIBER TYPE:
|
single-mode
|
|
TRANSCEIVER FORMAT:
|
SFP
|
|
WAVELENGTH:
|
1550nm
|
|
TX DISTANCE:
|
80Km
|
All Gigabit series SFP based converters like FMC-1001S, FRM220-1000TS, FRM220-1000MS and FMC-1000MS as well as Gigabit Industrial media converters and switches can be equipped with miniGBIC/SFP optical modules.
SFP's or miniGBIC modules are extremely versatile, working with any active equipment that support the SFP type of interface: Ethernet switches, routers and any other networking equipment.
Our SFPs have been tested and found 100% compatible with various Ethernet switches from major manufacturers like: Cisco, Nortel, Extreme, ZyXEL, D-Link or Netgear.
Fiber power budget according to available models
(highlighted model is one available for purchase on this page)
| Model |
Distance |
Lambda |
Min. Output (dBm) |
Sensitivity (dBm) |
Power Budget (dB) |
| SFP-7000-85 |
550m |
850nm |
-9.5 |
-18 |
8.5 |
| SFM-7000-L31 |
2Km |
1310nm |
-9 |
-19 |
10 |
| SFP-7010-31 |
10Km |
1310nm |
-9.5 |
-20 |
10.5 |
| SFS-7040-L31 |
40Km |
1310nm |
-4 |
-24 |
20 |
| SFP-7050-55 |
50Km |
1550nm |
-4 |
-24 |
20 |
| SFP-7080-55 |
80Km |
1550nm |
0 |
-24 |
24 |
| SFP-7120-55 |
120Km |
1550nm |
0 |
-30 |
30 |
| SFP-7010-WA |
10Km |
Tx:1310nm Rx:1550nm |
-9 |
-21 |
12 |
| SFP-7010-WB |
10Km |
Tx:1550nm Rx:1310nm |
-9 |
-21 |
12 |
| SFP-7020-WA |
20Km |
Tx:1310nm Rx:1550nm |
-8 |
-23 |
15 |
| SFP-7020-WB |
20Km |
Tx:1550nm Rx:1310nm |
-8 |
-23 |
15 |
| SFP-7040-WA |
40Km |
Tx:1310nm Rx:1550nm |
-3 |
-23 |
20 |
| SFP-7040-WB |
40Km |
Tx:1550nm Rx:1310nm |
-3 |
-23 |
20 |
| SFP-7060-WA |
60Km |
Tx:1310nm Rx:1550nm |
0 |
-24 |
24 |
| SFP-7060-WB |
60Km |
Tx:1550nm Rx:1310nm |
-2 |
-25 |
23 |
Additional information on available optical modules: PDF datasheet
