Description

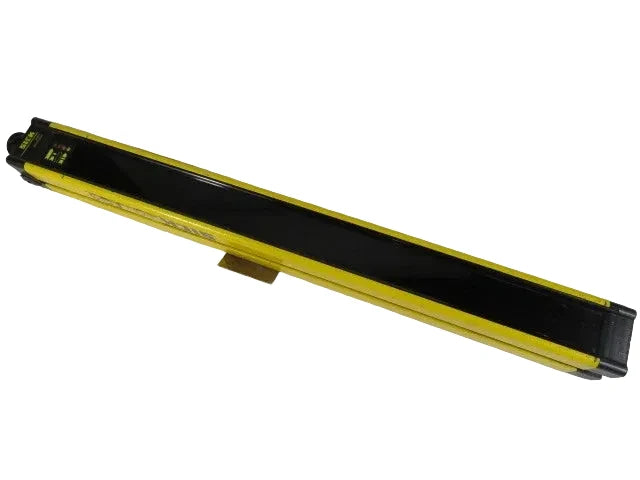

The SICK FGSE450-211 is a Type 4 safety light curtain receiver designed for high-level machine safeguarding applications. This receiver unit operates on 24 VDC and provides a 30 mm resolution across a 482 mm protective field height. It is engineered to reliably evaluate interruption of the safety field when paired with a compatible FGS series sender.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
SICK |
| Category |
Machine Safety |
| Part Number |
FGSE450-211 |
| Subcategory |
Safety Light Curtains |
| Product Series |
FGS Series |
| Unit Type |
Receiver Unit |
| Safety Type |
Type 4 |
| Resolution |
30 mm |
| Protective Field Height |
482 mm |
| Supply Voltage |
24 VDC |
| Power Consumption |
11 W |
| Optical Principle |
Infrared Light Detection |
| Application |
Machine Safeguarding |
| Installation Environment |
Industrial |
| Weight |
2.3 lbs (approx.) |
Information About FGSE450-211
The FGSE450-211 is part of SICK’s FGS safety light curtain series, developed for safeguarding hazardous areas in industrial machinery. As a receiver unit, it processes infrared light beams emitted by a corresponding FGS sender to detect access into the protected zone. The device is designed to meet Type 4 safety requirements, supporting high-risk machine protection applications. Built for industrial environments, it delivers stable optical performance and reliable safety outputs during continuous operation.
Key Features:
- Type 4 Safety Light Curtain Receiver: Designed for high-risk machine safeguarding systems.
- 30 mm Resolution: Suitable for hand and limb detection applications.
- 482 mm Protective Field Height: Provides defined vertical safety coverage.
- Receiver Unit Only: Intended for use with a compatible FGS series sender.
- Infrared Optical Detection: Reliably evaluates beam interruptions in the safety field.
- 24 VDC Operation: Compatible with standard industrial safety power supplies.
- FGS Series Compatibility: Integrates seamlessly into SICK FGS safety light curtain systems.
The FGSE450-211 delivers the reliability and precision required for Type 4 safety light curtain monitoring in industrial machine safeguarding applications.
