Description

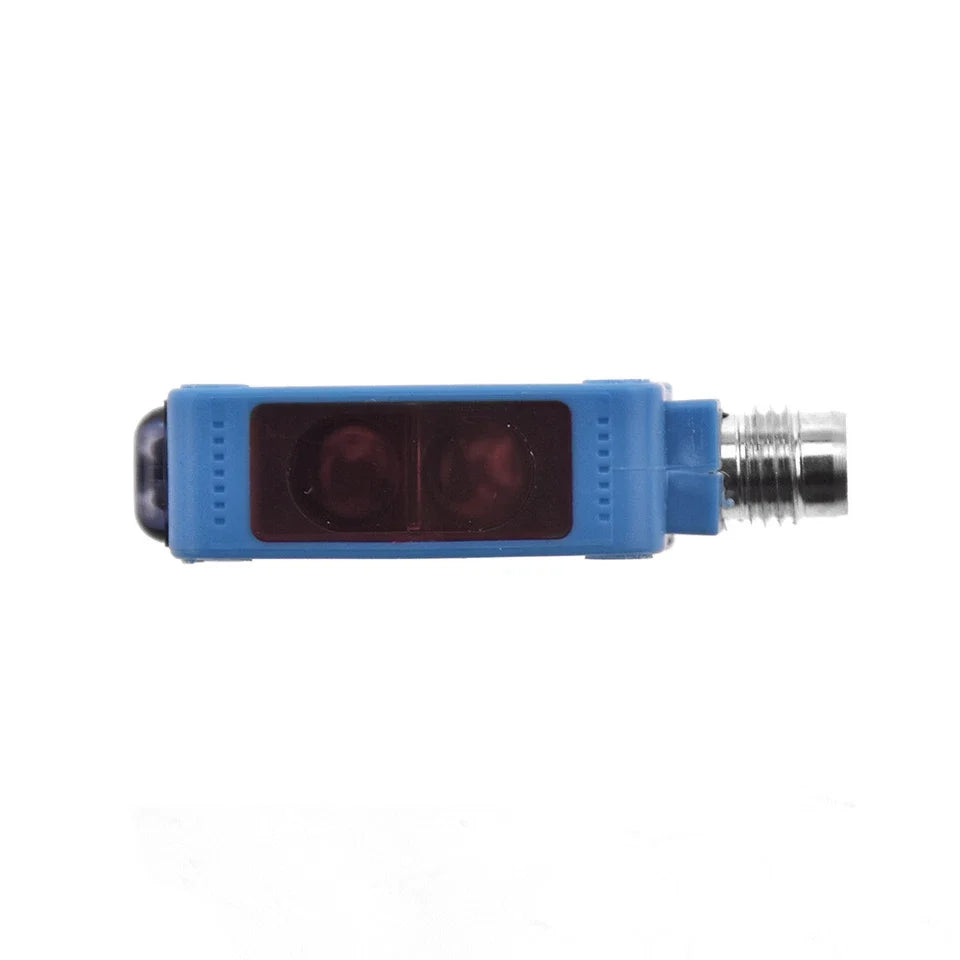

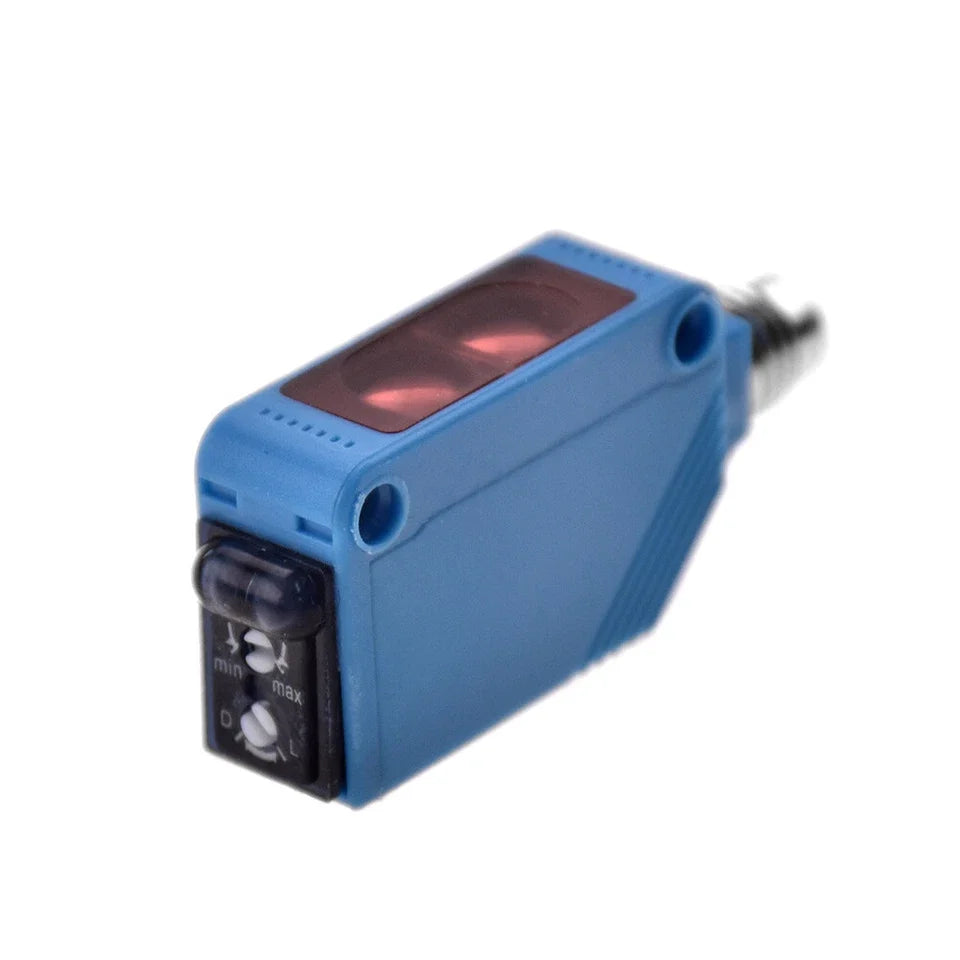

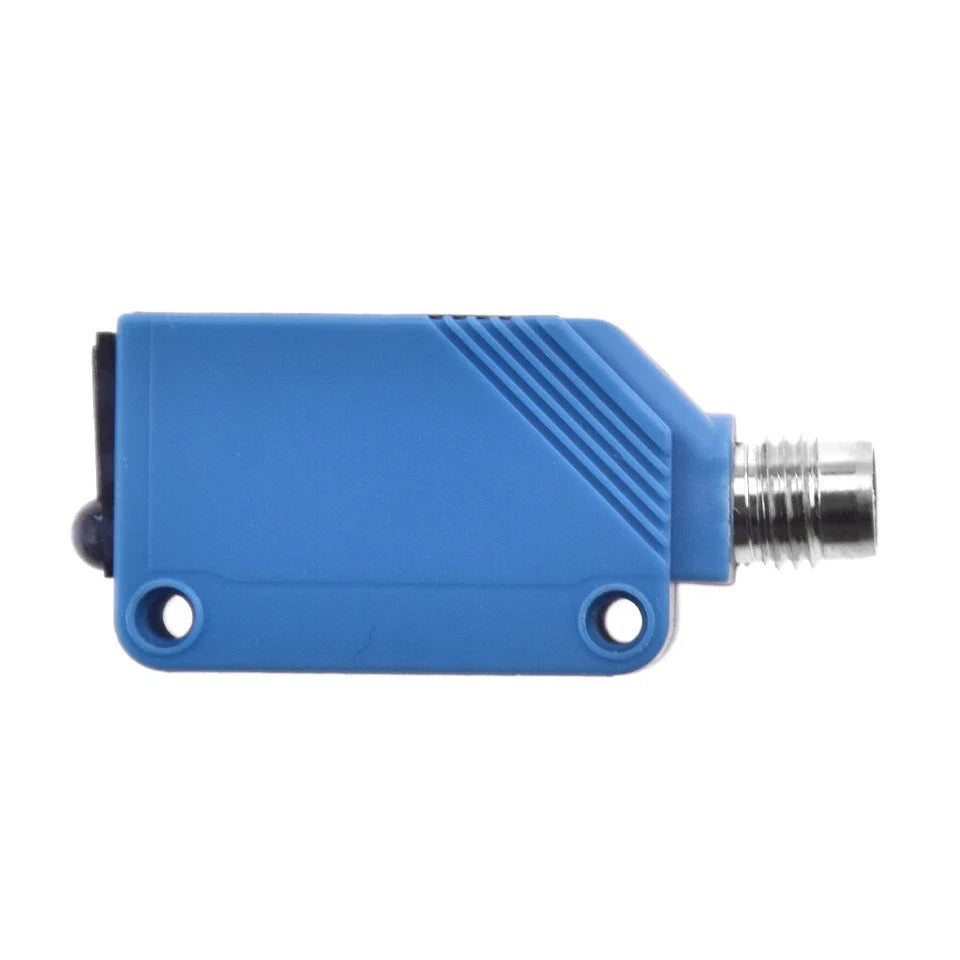

The SICK WT150-P460 photoelectric proximity sensor is a compact background suppression sensor designed for precise object detection within short sensing distances. Featuring a visible red LED light source and adjustable sensing range from 2 mm to 100 mm, it provides reliable detection performance in space-constrained industrial applications. The WT150-P460 supports PNP open collector output and operates across a wide 10–30 VDC supply range.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
SICK |
| Category |
Industrial Sensors |
| Part Number |
WT150-P460 |
| Subcategory |
Photoelectric Proximity Sensors |
| Series |
W150 Series |
| Sensor Type |
Photoelectric Proximity Sensor |
| Sensing Method |
Background Suppression (BGS) |
| Sensing Range |
2 mm – 100 mm |
| Light Source |
Visible Red LED |
| Output Type |
PNP Open Collector |
| Switching Mode |
Light / Dark Switching |
| Supply Voltage |
10–30 VDC |
| Current Rating |
100 mA |
| Contact Form |
Solid State |
| Termination |

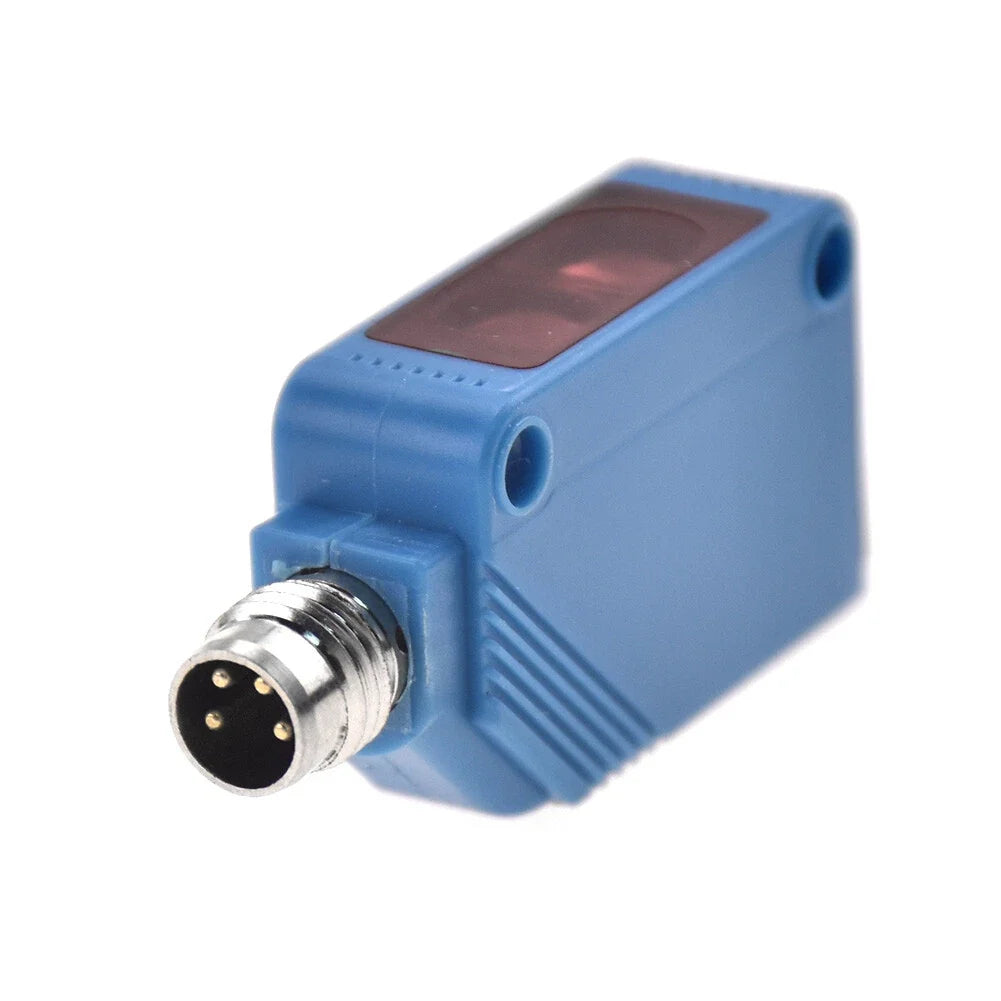

M8 Male Connector, 4-Pin |
| Mounting Type |
Bracket Mount |
| Weight |
0.007 kg |
Information About WT150-P460
The WT150-P460 is part of SICK’s W150 Series of miniature photoelectric sensors engineered for accurate background suppression in automation environments. It is constructed with solid-state electronics and optimized for applications requiring precise distance discrimination independent of background reflectivity. The sensor integrates a visible red LED emitter and supports both light and dark switching modes to accommodate flexible control logic. With an M8 4-pin male connector and bracket mounting compatibility, it is well-suited for integration into compact machinery and production equipment.
Key Features:
- Background Suppression Technology: Accurately detects targets while ignoring reflective backgrounds within the sensing field.
- Adjustable Sensing Range: Supports reliable detection from 2 mm up to 100 mm for short-range applications.
- Visible Red LED Emitter: Enables easy alignment and stable sensing performance.
- PNP Open Collector Output: Ensures compatibility with standard industrial control systems.
- Light/Dark Switching Modes: Allows configurable output behavior based on application requirements.
- Wide Supply Voltage Range: Operates reliably from 10 to 30 VDC in industrial power environments.
- Compact Miniature Housing: Designed for installation in tight or space-limited assemblies.
The WT150-P460 delivers the reliability and precision required for short-range object detection in industrial automation and sensing applications.
