Description

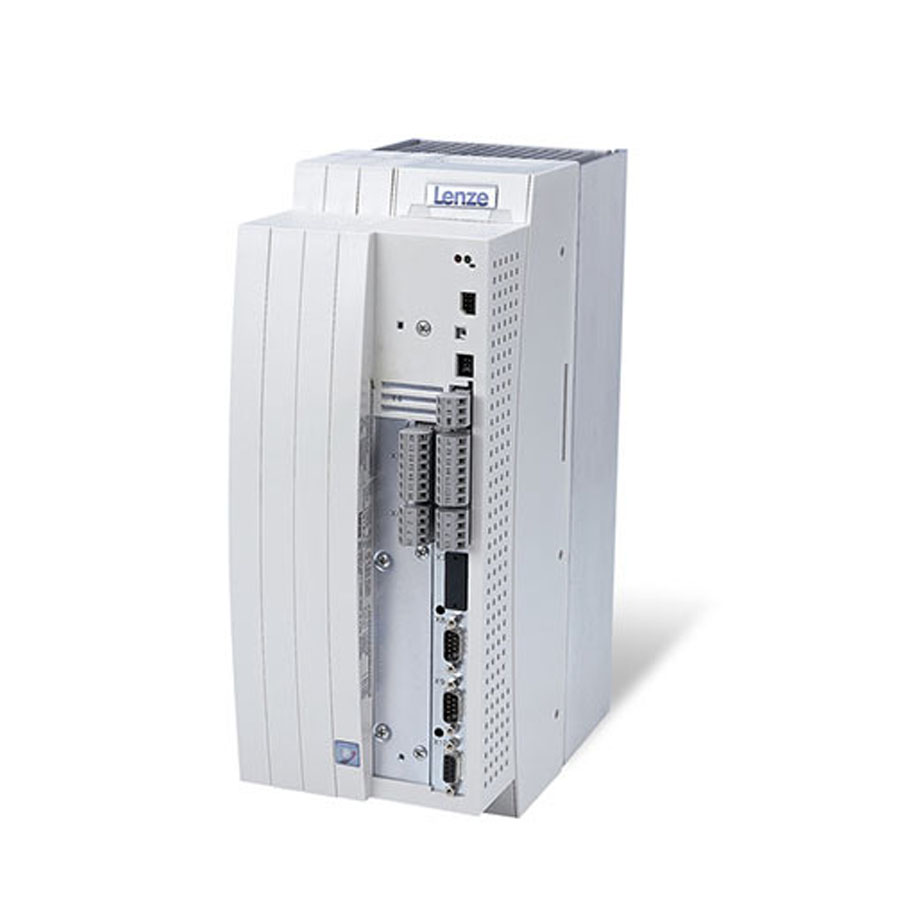

The Lenze EVS9322-ESV004 is a 9300 Series servo controller designed for three-phase 400/480 VAC industrial applications. Rated at 0.75 kW (1 HP), it operates as a built-in servo inverter for precise motor control. The unit supports adjustable output up to 480 V and 480 Hz, enabling controlled speed and torque regulation.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Lenze |
| Category |
Servo Products |
| Part Number |
EVS9322-ESV004 |
| Subcategory |
Servo Drive/Servo Control |
| Series |
9300 |
| Product Type |
Servo Controller / Servo Inverter |
| Rated Power |
0.75 kW |
| Horsepower Rating |
1 HP |
| Input Voltage |
400–480 VAC |
| Input Phase |
3 Phase |
| Output Voltage |
0–480 VAC |
| Output Frequency Range |
0–480 Hz |
| Mounting Method |
Panel Mount |
| Enclosure Rating |
IP20 |
| Display Type |
LED |
| Ambient Operating Temperature |
-10 to 60 °C |
| Storage Temperature |
-25 to 60 °C |
| Vibration Resistance |
1G (9.81 m/s²) |
| Variant |
Safe Standstill |
| Weight |
8.99 lbs |
Information About EVS9322-ESV004
The EVS9322-ESV004 is part of the Lenze 9300 Series servo inverter platform engineered for industrial motion control systems. It is designed as a panel-mounted built-in unit with a three-phase input configuration and IP20 enclosure rating for indoor installation. The controller provides vector-based servo control and includes a Safe Standstill variant for enhanced operational safety. Operating within an ambient temperature range of -10 to 60°C, it is suitable for installation in standard control cabinets and automation panels.
Key Features:
-
9300 Series Platform: Designed for integrated servo and motion control systems.
-
0.75 kW / 1 HP Rating: Suitable for compact servo motor applications.
-
400–480 VAC Input: Three-phase supply configuration.
-
0–480 V Output: Adjustable AC output voltage range.
-
0–480 Hz Frequency Range: Flexible speed control capability.
-
Built-In Unit Design: Intended for panel-mounted cabinet installation.
-
Safe Standstill Function: Integrated safety feature for secure idle conditions.
-
LED Display Interface: Provides status and parameter indication.
-
IP20 Protection Rating: Suitable for enclosed indoor installations.
The EVS9322-ESV004 delivers the reliability and precision required for industrial servo drive and motion control applications.
