Description

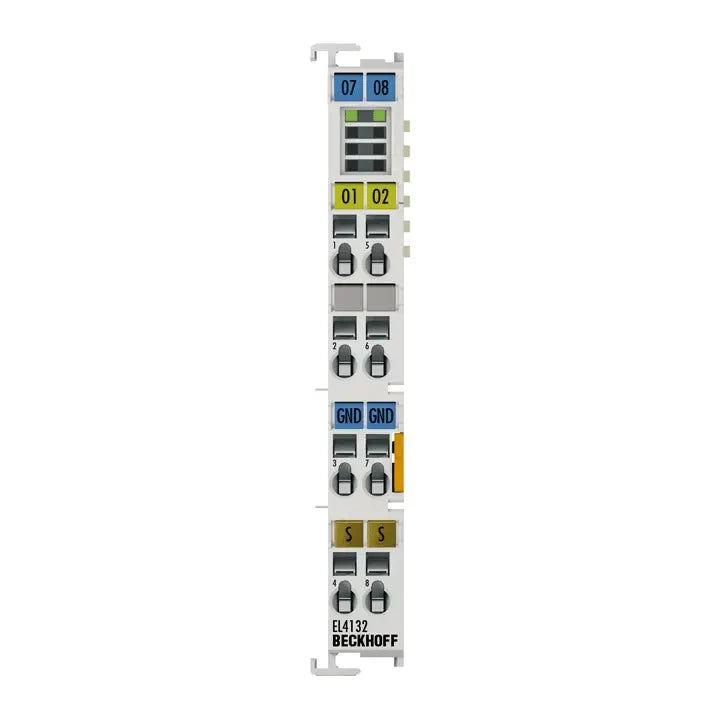

The Beckhoff EL4132 EtherCAT Terminal is a compact 2-channel analog output module designed to generate precise voltage signals up to ±10 V. It provides 16-bit resolution for accurate control in industrial automation and process applications. This terminal is engineered for reliable real-time performance within EtherCAT-based control systems.

Technical Specifications

Information About EL4132

The EL4132 is part of Beckhoff’s EtherCAT Terminal system, designed to integrate seamlessly into high-speed EtherCAT networks. It features two independent analog voltage output channels with high resolution and fast update rates for precise signal generation. The terminal draws its operating power directly from the EtherCAT E-bus, simplifying wiring and installation. Its robust design complies with international industrial standards, making it suitable for demanding automation and hazardous-area-rated environments.

Key Features:

• Dual Analog Output Channels: Provides two independent voltage output channels for control applications.
• High-Resolution Output: 16-bit resolution ensures precise and stable signal generation.
• ±10 V Signal Range: Supports bipolar voltage outputs for versatile control scenarios.
• EtherCAT Integration: Designed for deterministic, real-time communication over EtherCAT networks.
• Fast Output Update Rate: Supports output rates up to 15 ksps.
• Compact Terminal Design: Minimizes cabinet space while maintaining full functionality.
• Industrial Compliance: Certified with CE, UL, ATEX, and IECEx approvals.

The EL4132 delivers the reliability and precision required for analog voltage output in EtherCAT-based industrial automation systems.
