Description

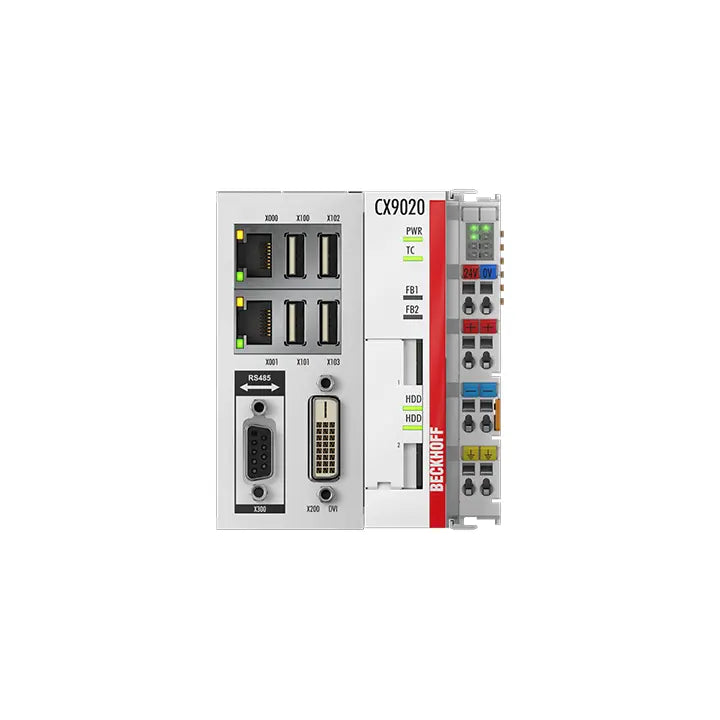

The Beckhoff CX9020-0112 CPU module is a compact DIN rail–mounted controller designed for embedded automation and motion control applications. It runs Windows Embedded Compact 7 and supports TwinCAT NC PTP runtime for precise machine control tasks. This CPU module delivers reliable performance in space-constrained industrial environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Beckhoff |
| Category |
Industrial Automation |
| Part Number |
CX9020-0112 |
| Subcategory |
CPU Modules |
| Operating System |
Windows Embedded Compact 7 |
| Runtime Environment |
TwinCAT NC PTP |
| Processor Type |
Embedded CPU |
| RAM |
1 GB DDR3 |
| Non-Volatile Memory |
128 KB NOVRAM |
| Flash Memory |
512 MB microSD (Dual Slots) |
| Power Supply |
24 V DC |
| Max Power Consumption |
5 W |
| I/O Current Supply |
2 A |
| Interfaces |
2 × RJ45 Ethernet (internal switch), 4 × USB 2.0, 1 × DVI-D |
| Mounting Type |
DIN Rail |
| Protection Class |
IP20 |
| Enclosure Protection |
IP54 (installed in terminal box) |
| Operating Temperature |
-25 to 60 °C |
| Storage Temperature |
-40 to 85 °C |
| Certifications |
CE, UL, GL |
| Dimensions |
84 × 99 × 91 mm (W × H × D) |
| Weight |
590 g |
Information About CX9020-0112
The CX9020-0112 is part of Beckhoff’s CX9000 series, developed as a cost-efficient yet capable CPU module for industrial automation systems. It is designed for installation inside a terminal box and supports automatic detection of connected bus systems. The controller features integrated Ethernet switching, multiple USB interfaces, and DVI-D output for flexible system integration. Its modular design allows configuration to meet task-specific requirements while maintaining low power consumption.
Key Features:
- Embedded CPU Module Design: Engineered for compact control cabinet and terminal box installation.
- Windows Embedded Compact 7 OS: Provides a stable real-time operating environment for automation tasks.
- TwinCAT NC PTP Runtime Support: Enables precise point-to-point motion control.
- Integrated Communication Interfaces: Includes dual RJ45 Ethernet ports with internal switch functionality.
- Low Power Consumption: Operates with a maximum power draw of 5 W.
- Modular and Cost-Efficient Platform: Designed for budget-conscious automation applications.
- Wide Operating Temperature Range: Supports reliable operation in industrial environments.
The CX9020-0112 delivers the reliability and precision required for embedded automation and motion control systems.
