Description

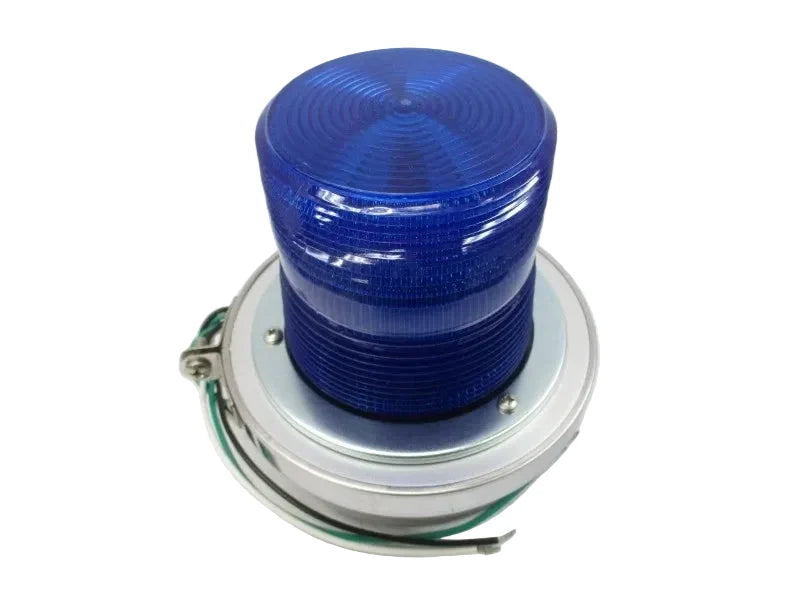

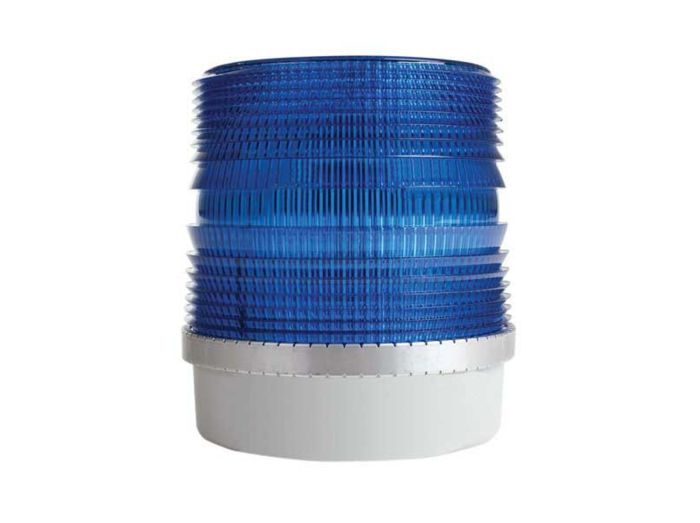

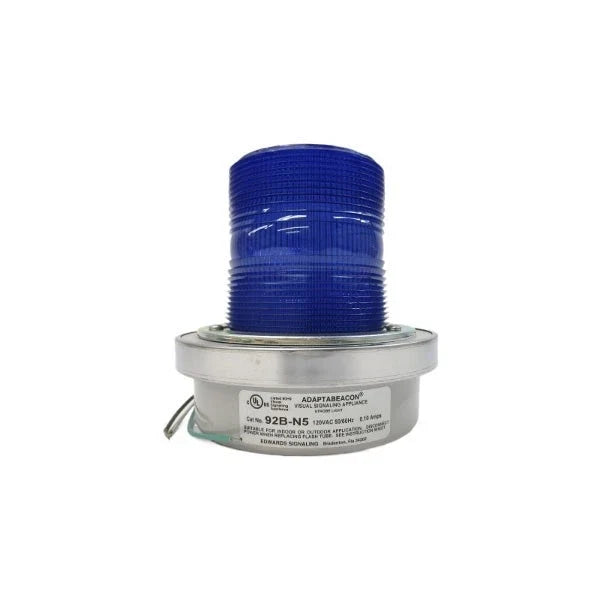

The Edwards Signaling 92B-N5 is a xenon flashing strobe light designed to provide high-intensity visual warning for industrial, commercial, and institutional facilities. Manufactured by Edwards Signaling, the 92B-N5 operates on 120 VAC and produces a brilliant blue flashing signal with a peak light intensity of 1,400,000 candela. Its weather-resistant construction and Fresnel lens design make it suitable for reliable indoor and outdoor visual notification applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Edwards Signaling |
| Category |
Visual Signaling |
| Part Number |
92B-N5 |
| Subcategory |
Flashing Strobe Light |
| Series |
92 Series |
| Product Type |
Xenon Flashing Strobe Beacon |
| Operating Voltage |
120 VAC |
| Frequency |
50/60 Hz |
| Operating Current |
0.1 A |
| Light Source |
Xenon Flash Tube |
| Lens Color |
Blue |
| Flash Rate |
65 FPM |
| Peak Light Intensity |
1,400,000 cd |
| Lens Type |
Fresnel |
| Lamp Life |
5,000 Hours |
| Mounting |
Panel, Conduit, or 4-Inch Octagonal Box |
| Base Material |
Cast Metal |
| Operating Temperature |
-31°F to 150°F (-35°C to 65.6°C) |
| Approvals |
UL 1638, cUL |
| Dimensions |
6 in. Diameter × 6-1/8 in. Height |
| Application |
Industrial, Commercial, Institutional, Indoor/Outdoor |
| Weight |
1.60 lb (0.73 kg) |
Information About 92B-N5
The 92B-N5 is part of the Edwards Signaling 92 Series of light-duty xenon strobe beacons developed for intermittent visual signaling. It features a rugged cast base that can also function as a junction box, along with an optically engineered Fresnel lens that enhances light distribution and visibility. The unit supports panel, conduit, or 4-inch octagonal box mounting, allowing flexible installation in a variety of industrial environments. Its integrated trigger and timing circuitry, combined with a weatherproof design, provides dependable operation in both indoor and outdoor installations.
Key Features:
- Xenon Strobe Technology: Produces an intense flashing visual warning signal.
- High Light Output: Delivers up to 1,400,000 peak candela for excellent visibility.
- 120 VAC Operation: Designed for 120 VAC, 50/60 Hz electrical systems.
- Blue Fresnel Lens: Optimizes light distribution and improves viewer perception.
- Weatherproof Construction: Suitable for indoor and outdoor applications.
- Flexible Mounting: Supports panel, conduit, and 4-inch octagonal box mounting.
- Cast Base Housing: Provides durability and can serve as a junction box.
- Long Service Life: Xenon strobe tube rated for approximately 5,000 operating hours.
The 92B-N5 delivers the reliability and precision required for industrial visual warning, equipment status indication, and facility safety notification systems.
