Description

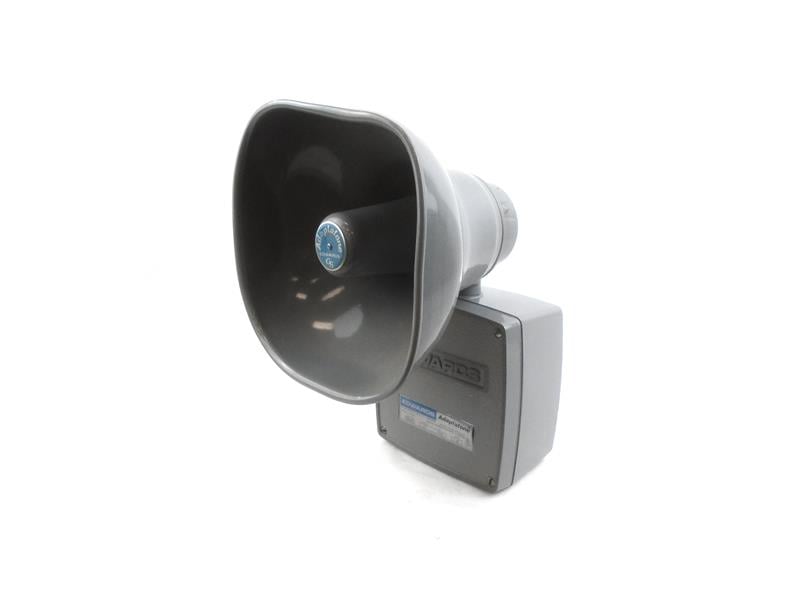

The Edwards 5530-N5 is an Adaptatone industrial signaling device designed to deliver high-output audible alerts for safety, evacuation, and process control applications. Operating at 120 VAC, it produces powerful tone signals with low current draw for reliable operation in demanding environments.

Technical Specifications

Information About 5530-N5

The 5530-N5 is part of Edwards Signaling’s Adaptatone Series, engineered for heavy-duty industrial and commercial signaling applications. It operates on 120 VAC at 50/60 Hz with a current rating of 0.38 amps, providing loud, selectable tones suitable for alerting personnel in noisy or hazardous areas. The Adaptatone system allows for easy tone selection and can integrate into fire alarm, evacuation, or process monitoring systems. Known for its durability and long service life, the 5530-N5 is ideal for factories, refineries, warehouses, and other industrial facilities where clear, high-decibel signaling is required.

Key Features:

• High-Output Audible Signal: Produces loud, attention-getting tones for industrial environments.
• 120 VAC Operation: Compatible with standard electrical systems at 50/60 Hz.
• Low Current Draw: Operates efficiently at only 0.38 amps.
• Adaptatone Series: Supports customizable tone selection for various signaling needs.
• Durable Construction: Built for heavy-duty industrial use with long operational life.
• Wide Application Range: Suitable for alarm, evacuation, and process control alerts.
• Reliable Performance: Maintains consistent sound output in high-noise areas.

The 5530-N5 delivers the reliability and precision required for effective audible signaling in demanding industrial and safety applications.
