Description
The Fire-Lite ECC-RPU Remote Page Unit is a remote paging and control device designed for use with Fire-Lite Emergency Command Center systems. It provides remote microphone paging, system status indication, and control of audio zones in emergency communication and voice evacuation applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Fire-Lite |
| Category |
Fire Alarm Equipment |
| Part Number |
ECC-RPU |
| Subcategory |
Remote Page Unit |
| Compatible Systems |
ECC-50/100, ECC-5000 |
| Communication Interface |
RS-485 data bus |
| Microphone Type |
Handheld push-to-talk microphone |
| Indicators |
LED status and zone indicators |
| Enclosure Type |
Steel, lockable front door |
| Mounting Options |
Surface or flush mount |
| Power Source |
24 VDC nominal |
| Current Draw |
150 mA standby (typical) |
| Operating Temperature |
32°F to 120°F (0°C to 49°C) |
| Humidity Range |
Up to 85% RH, non-condensing |
| Dimensions |
14.5 in H × 10.5 in W × 3.5 in D (approx.) |
| Approvals |
UL Listed, NFPA compliant |
| Weight |
8.2 lb (3.7 kg) |
Information About ECC-RPU

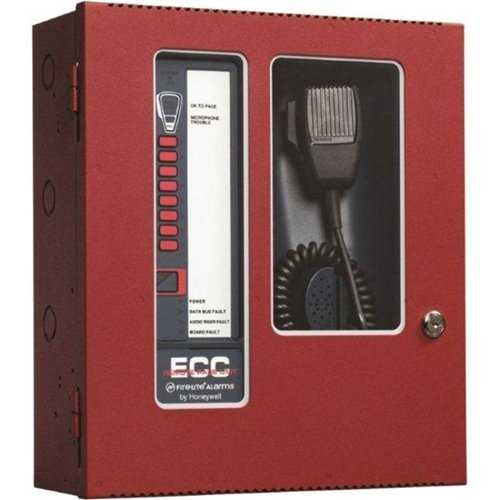

The ECC-RPU is a Remote Page Unit designed to work with Fire-Lite’s ECC-50/100 and ECC-5000 series Emergency Command Center systems. It features a durable steel enclosure, a built-in microphone, and LED indicators for system status and zone activity. The unit communicates with the main ECC system via a data bus, supporting up to eight remote paging locations. It is ideal for schools, hospitals, industrial facilities, and commercial buildings requiring distributed emergency paging control.
Key Features:
- Integrated Microphone: Provides clear, high-quality voice paging for emergency announcements.
- System Compatibility: Fully compatible with Fire-Lite ECC-50/100 and ECC-5000 control panels.
- LED Indicators: Displays system status, zone activation, and fault conditions for easy monitoring.
- Remote Mounting: Allows paging control from up to eight locations throughout a facility.
- Secure Access: Includes key switch for authorized operation of paging functions.
- Rugged Construction: Housed in a durable steel cabinet for long-term reliability.
- Flexible Installation: Surface or flush mounting options for diverse installation environments.
- Communication Interface: Uses RS-485 data bus for reliable system connectivity.
The ECC-RPU delivers the reliability and precision required for critical life safety and emergency communication applications.
