Description

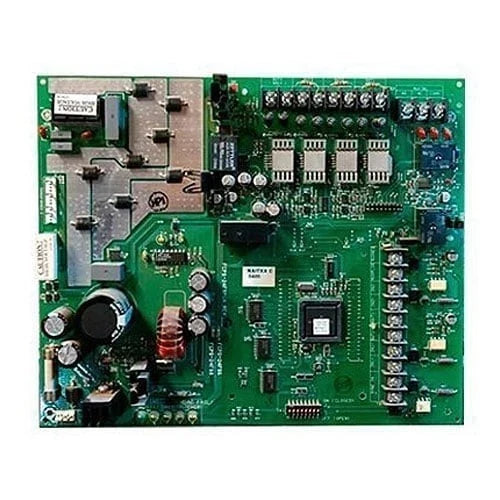

The Fire-Lite FCPS-24S8RB is a master control replacement board designed for the FCPS-24FS8 remote NAC extender power supply. It provides regulated and filtered 24 VDC power while supervising input and output conditions. Compact and reliable, the FCPS-24S8RB ensures continued functionality of NAC expansion systems in fire alarm applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Fire-Lite |
| Category |
Controls & Indicators |
| Part Number |
FCPS-24S8RB |
| Subcategory |
CPU/Control Board |
| Compatible Unit |
FCPS-24FS8 NAC Extender Power Supply |
| Power Output |
24 VDC regulated and filtered |
| NAC Power Capacity |
8 A (from FCPS-24FS8 system) |
| Input Circuits |
2 fully isolated control inputs |
| AC Trouble Reporting |
Selectable: immediate or 2-hour delay |
| Operating Mode |
Supports NAC expansion and standalone use |
| Functionality |
Supervises inputs, outputs, and battery charging |
| Compliance |
UL Listed, NFPA 72, ADA synchronization support |
| Dimensions |
Standard PCB size for FCPS-24FS8 chassis |
| Weight |
1.45 lbs |
Information About FCPS-24S8RB
The FCPS-24S8RB is part of the Fire-Lite/Notifier FCPS-24FS8 family, which delivers 8 amps of auxiliary power for notification appliances and 24 VDC system accessories. As a replacement master control board, the FCPS-24S8RB contains two fully isolated input control circuits for compatibility with a variety of FACP inputs. It offers selectable AC trouble reporting with immediate or delayed response options. Built to meet NFPA and ADA requirements, the FCPS-24S8RB maintains synchronization across NACs, ensuring coordinated audible and visual signaling. With its regulated power output and monitoring functions, it restores full functionality to FCPS-24FS8 units without replacing the entire assembly.
Key Features:
- Replacement Control Board: Designed for the FCPS-24FS8 remote NAC extender.
- Isolated Input Circuits: Two fully isolated inputs for flexible panel integration.
- Selectable AC Trouble Reporting: Immediate or 2-hour delay options.
- Regulated Power Output: Fully filtered 24 VDC for notification appliances and accessories.
- NAC Synchronization: Ensures strobes and horns operate in compliance with ADA standards.
- Battery Charging Support: Maintains standby battery readiness within the FCPS-24FS8.
- Compact Form Factor: Facilitates direct installation into existing units.
- Standards Compliance: Meets UL fire system requirements for auxiliary power and NAC expansion.
The FCPS-24S8RB provides a cost-effective solution for restoring and maintaining NAC extender functionality in fire alarm systems.
