Description

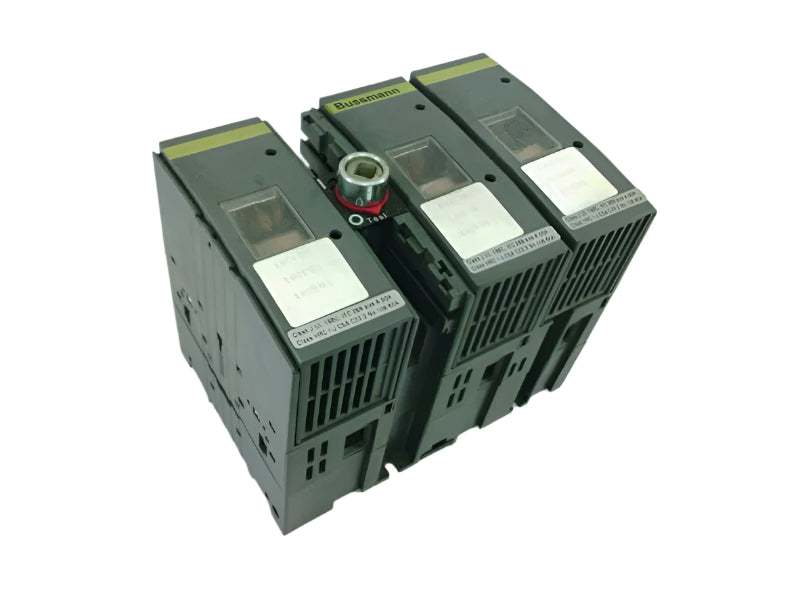

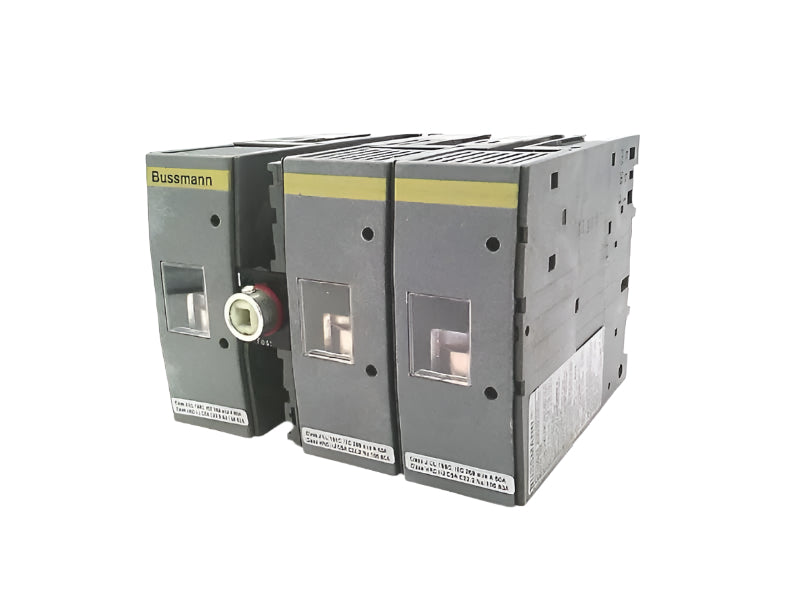

The Eaton CFD60J3 is a rotary disconnect switch designed to provide a safe and reliable means of isolating electrical power in industrial motor control and power distribution applications. Rated for 60 A, the three-pole switch accommodates Class J fuses and delivers dependable manual disconnection for maintenance and equipment protection. Its compact design supports installation in industrial control panels and electrical enclosures.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Eaton |
| Category |
Circuit Protection |
| Part Number |
CFD60J3 |
| Subcategory |
Rotary Disconnect Switches |
| Product Type |
Rotary Disconnect Switch |
| Number of Poles |
3 |
| Current Rating |
60 A |
| Fuse Class |
Class J |
| Maximum Voltage |
600 VAC |
| Switching Method |
Manual Rotary Operation |
| Mounting |
Panel/Enclosure Mount |
| Compatible Handles |
Direct-Mount and Shaft-Operated Handles |
| Applications |
Motor Control, Industrial Machinery, Power Distribution |
| Standards |
UL Listed, CSA Certified (with compatible assemblies) |
| Weight |
Approximately 0.68 kg (1.5 lb) |
Information About CFD60J3
The CFD60J3 is part of Eaton’s Bussmann series of rotary fusible disconnect switches—compact, safety-focused solutions designed for reliable power isolation in industrial and commercial electrical systems. This 3-pole switch supports 60 A operation at up to 600 VAC, using Class J fuses for coordinated overcurrent protection. Though now discontinued, the CFD60J3 remains widely used in legacy installations for its durable construction, visible disconnection capability, and compatibility with lockout/tagout procedures.
Key Features:
- Fusible Protection: Designed for Class J fuses, enabling coordinated short-circuit and overload protection in accordance with UL 98 standards.
- Three-Phase Compatibility: 3-pole design ensures simultaneous disconnection of all phases—ideal for motor loads, control circuits, and system isolation.
- External Rotary Handle: Provides visible ON/OFF status and supports lockout/tagout safety protocols for maintenance and compliance.
- 600 VAC Voltage Rating: Handles a broad range of low-voltage AC power distribution needs in machinery, HVAC, and control panels.
- Base-Mounted Design: Engineered for compact, secure installation within industrial panels or control enclosures.
- Rugged Construction: Built for industrial duty, with robust contacts and insulation suitable for demanding operating environments.
- Discontinued Status: No longer in active production, but still available through surplus channels and commonly used in installed systems.
- Application Versatility: Fits a wide range of applications including equipment disconnects, panel isolation, and branch circuit protection.
- Reliable Switching Action: Provides firm mechanical engagement and visible isolation to meet stringent industrial safety requirements.
- Legacy Compatibility: Matches legacy Eaton/Bussmann enclosures and accessories, supporting long-term maintenance continuity.
The Eaton CFD60J3 rotary disconnect switch combines compact form, Class J fuse protection, and visible power isolation—making it a trusted legacy solution for OEM panels, industrial machinery, and control equipment requiring reliable disconnection and safety compliance.
