Description

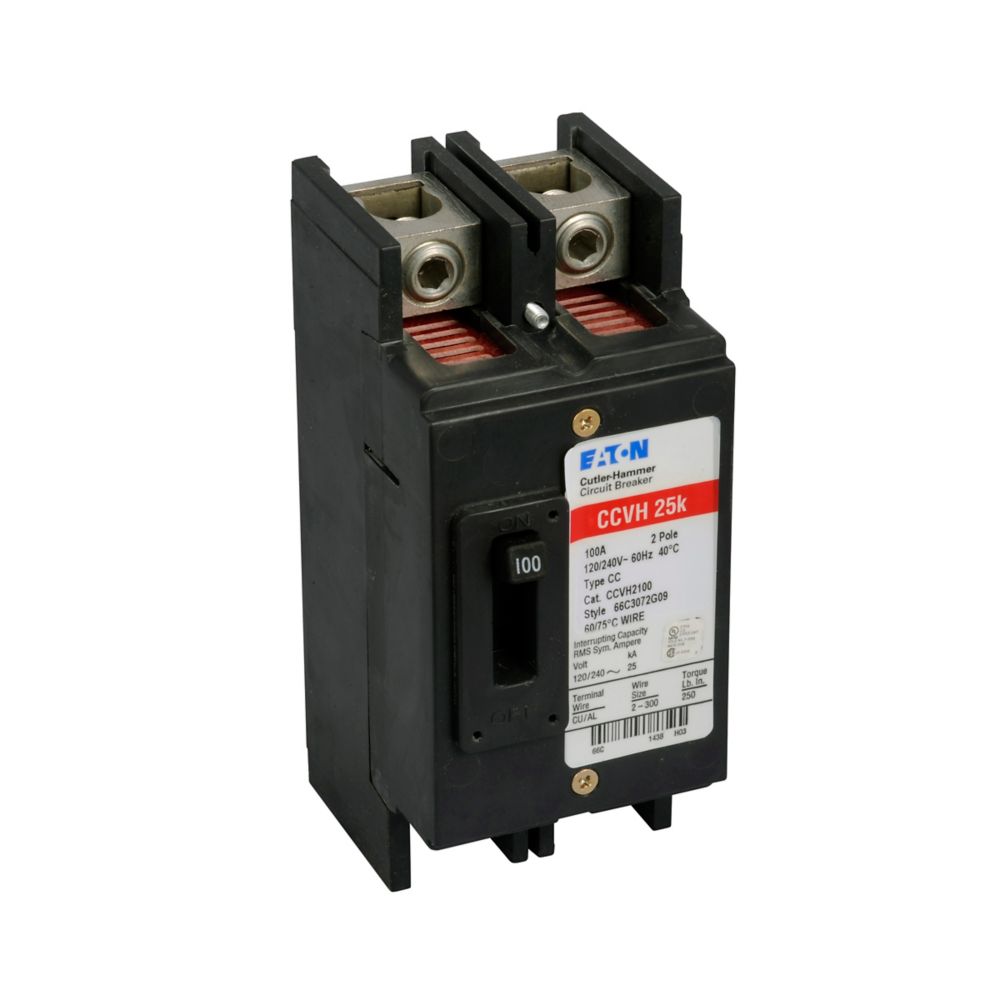

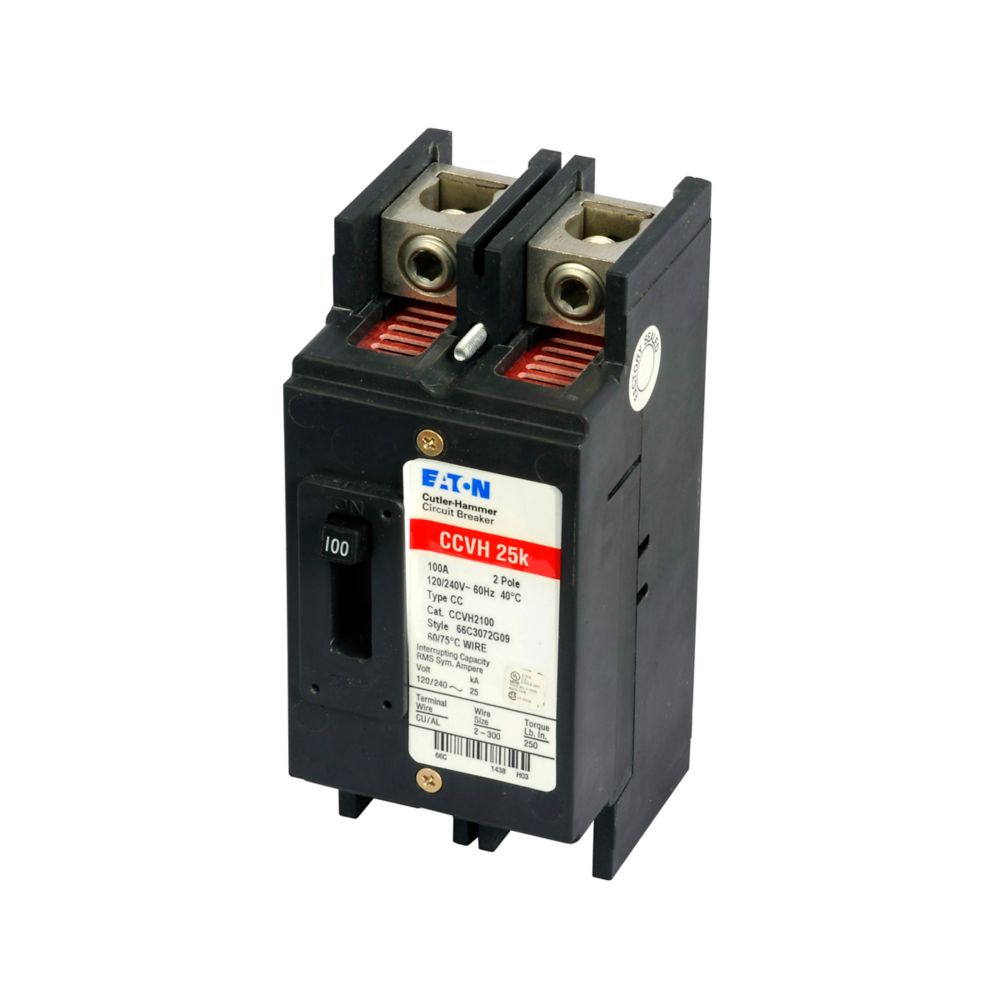

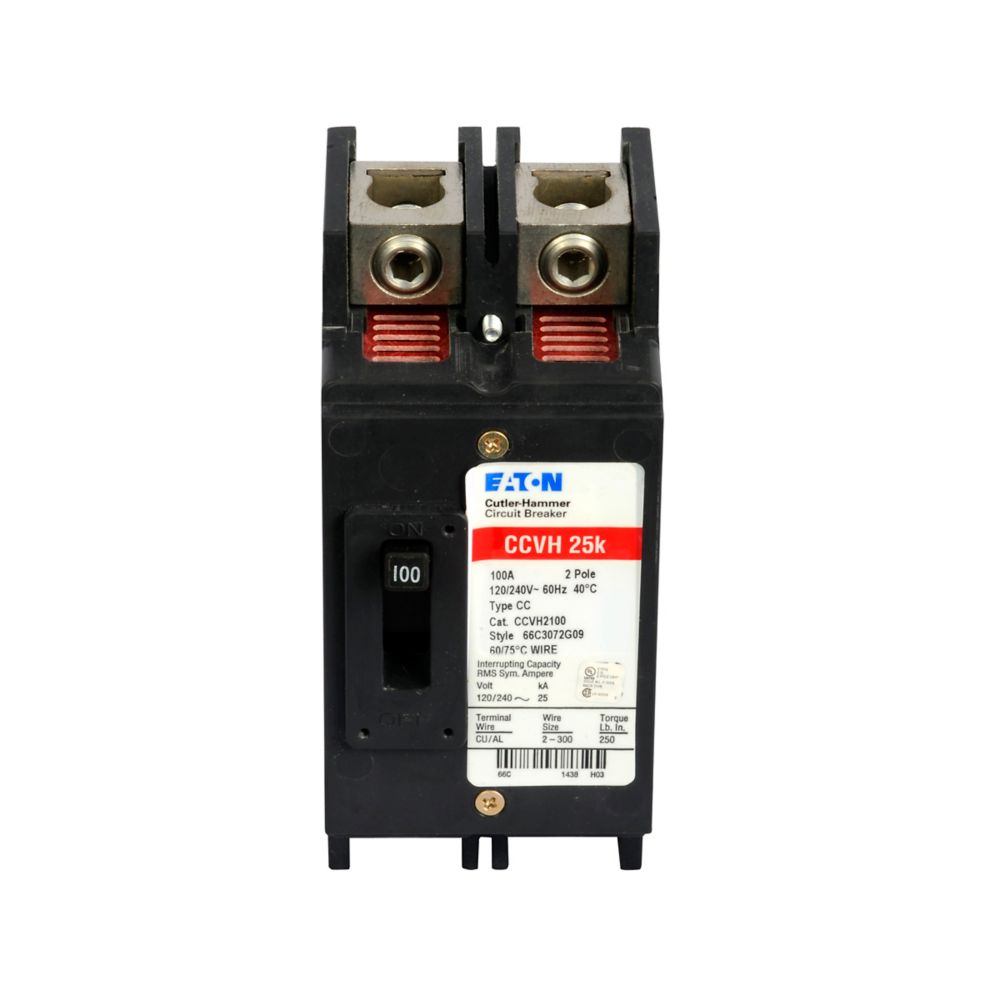

The Eaton CCVH2100 is a tenant main circuit breaker designed to provide reliable overcurrent protection for individual service entrances in multi-tenant electrical distribution systems. Eaton part number CCVH2100 features a 100 A rating and a two-pole configuration suitable for 120/240 V residential and commercial power systems. Its compact design and high interrupt capacity ensure dependable protection and integration within Eaton Type ECC unit enclosures.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Eaton |
| Category |
Circuit Protection |
| Part Number |
CCVH2100 |
| Subcategory |
Tenant Main Circuit Breaker |
| Product Type |
Tenant main breaker |
| Circuit Breaker Frame Type |
CCV |
| Main Circuit Breaker |
CCV |
| Amperage Rating |
100 A |
| Voltage Rating |
120/240 V |
| Interrupt Rating |
25 kAIC |
| Number of Poles |
Two-pole |
| Wire Size |
#2/0 AWG – 300 kcmil Cu/Al |
| Used With |
Type ECC unit enclosures |
| Terminals |
Standard lugs suitable for copper or aluminum wire |
| Certifications |
UL 489 |
| Product Dimensions (L × W × H) |
8 × 4.5 × 5.5 in |
| Warranty |
Limited lifetime residential / 1 year commercial |
| Weight |
2.83 lb |
Information About CCVH2100
The CCVH2100 is a tenant main circuit breaker from Eaton engineered for use in modular metering and multi-tenant distribution equipment. Built on the CCV breaker frame platform, it provides centralized protection for individual tenant loads within shared electrical service systems. The breaker is rated for 120/240 V operation and includes standard lugs compatible with copper or aluminum conductors, allowing flexible installation options. With UL 489 certification and a 25 kAIC interrupting rating, it meets industry safety standards for dependable electrical protection.
Key Features:
- 100 Amp Current Rating: Designed to provide reliable overcurrent protection for tenant electrical services.
- CCV Frame Breaker Design: Built on Eaton’s CCV platform for dependable performance in metering systems.
- Two-Pole Configuration: Suitable for single-phase 120/240 V electrical distribution systems.
- High Interrupt Capacity: Rated at 25 kAIC to safely interrupt high fault currents.
- Copper and Aluminum Wire Compatibility: Standard lugs support #2/0 AWG to 300 kcmil Cu/Al conductors.
- Type ECC Enclosure Compatibility: Specifically designed for installation in Eaton ECC unit enclosures.
- UL 489 Certified Protection: Complies with recognized safety standards for circuit protection devices.
The CCVH2100 delivers the reliability and precision required for protecting tenant service circuits in multi-unit residential and commercial electrical systems.
