Description

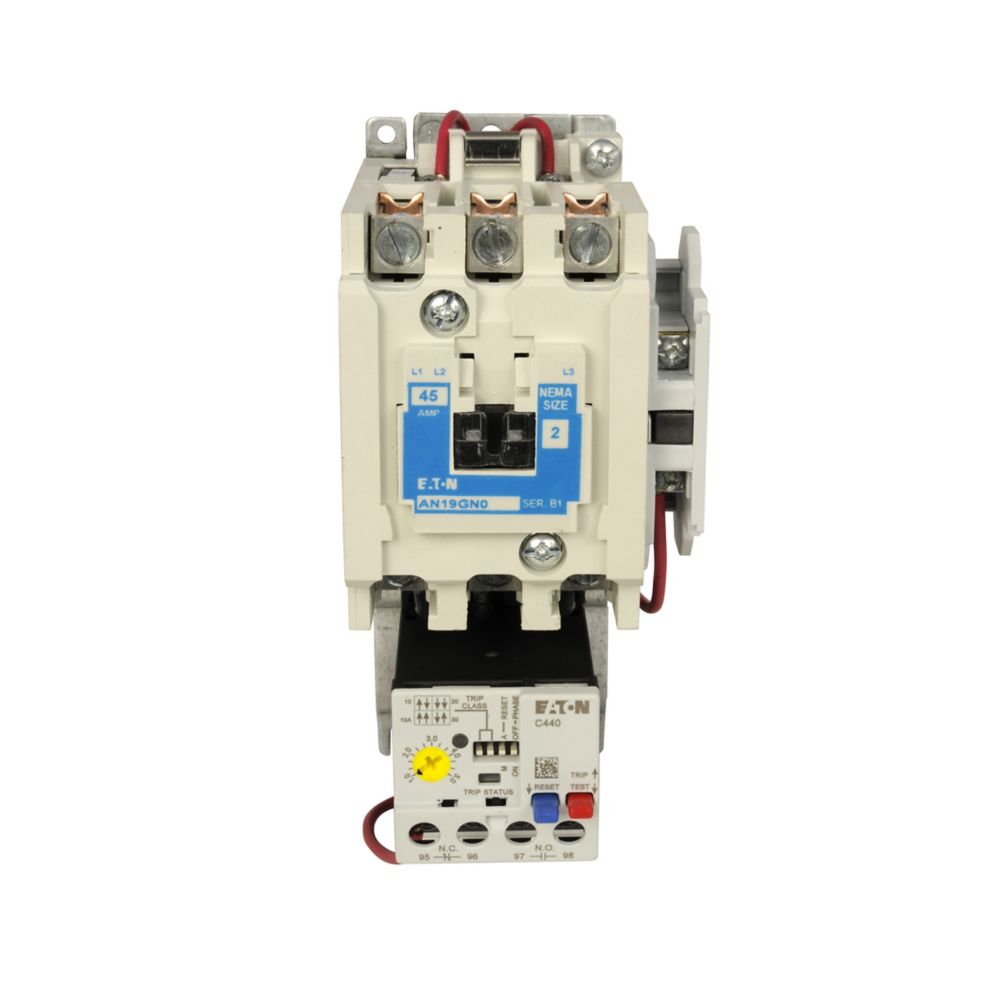

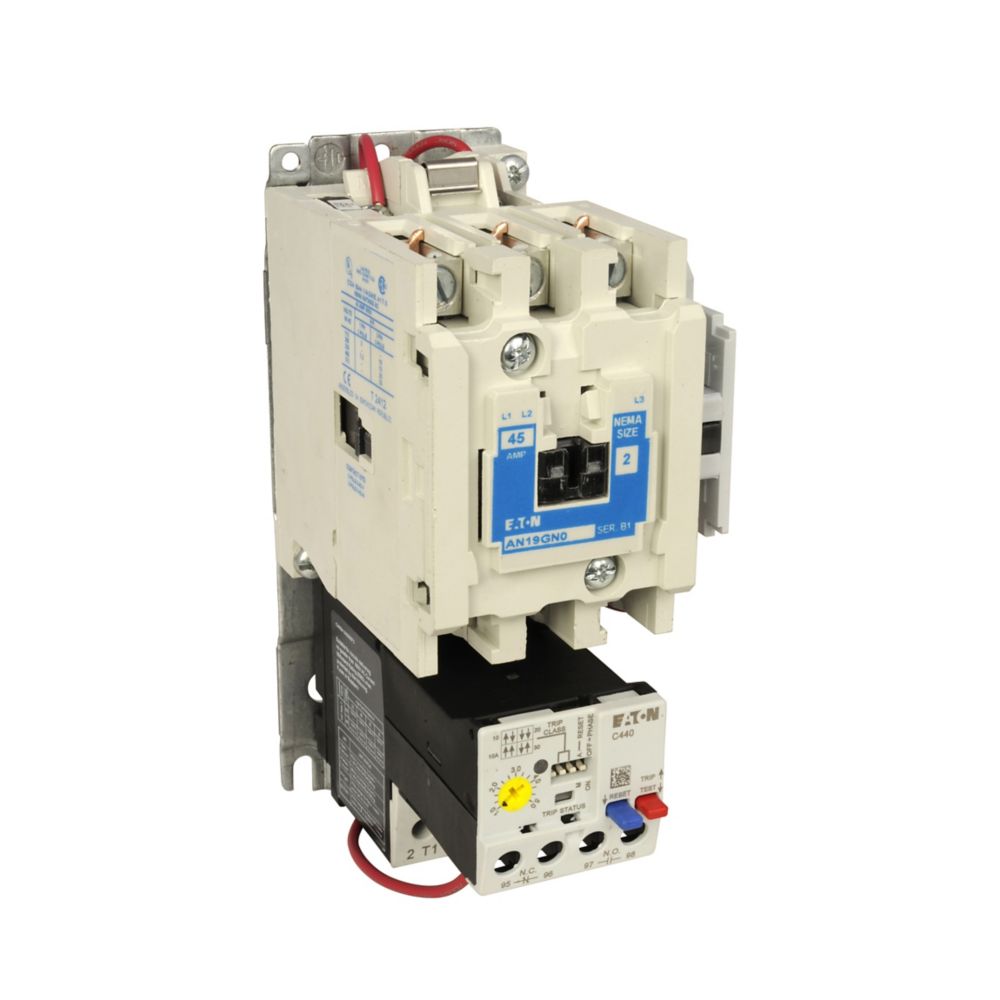

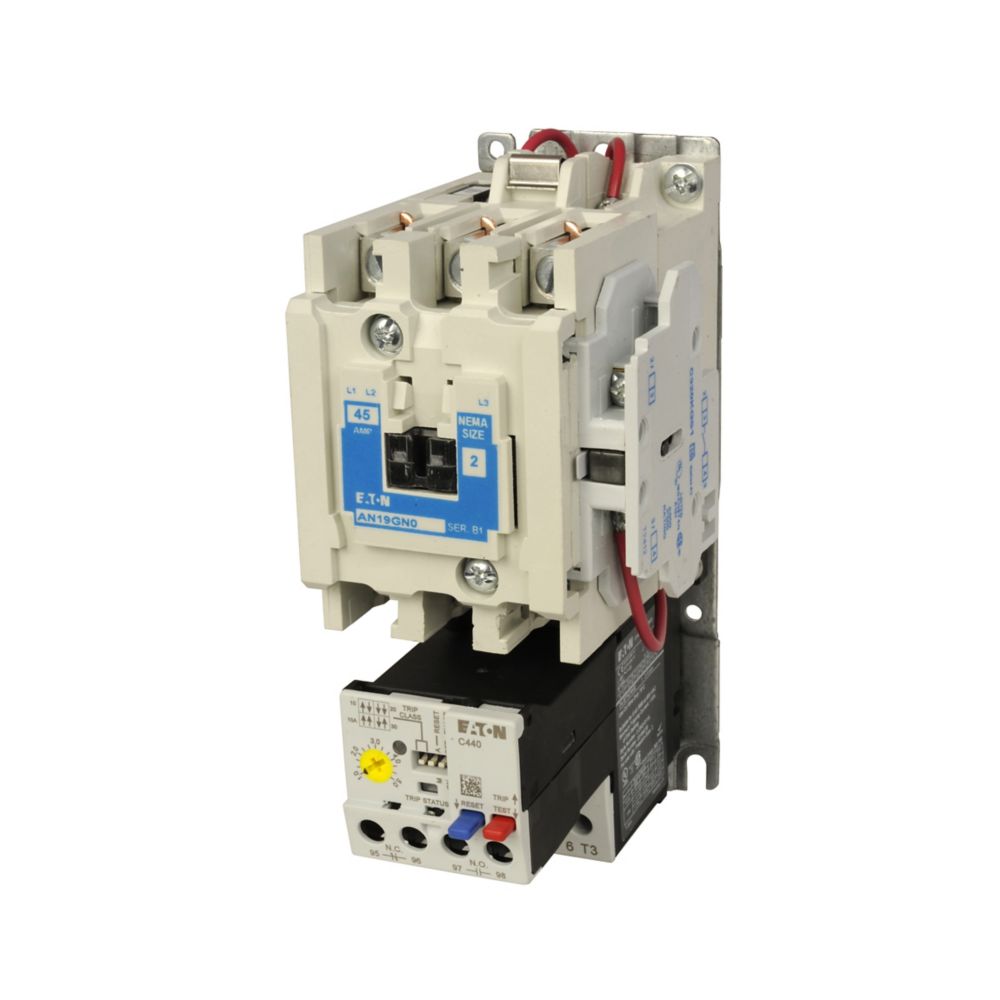

The Eaton AN19GN0C5E045 is a Freedom NEMA motor control starter designed to provide reliable starting, stopping, and overload protection for industrial motors. Eaton part number AN19GN0C5E045 features a non-reversing configuration with a 45 A rating and an integrated C440 electronic overload relay for advanced motor protection. Its NEMA Size 2 design ensures dependable performance in demanding motor control applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Eaton |
| Category |
Motor Control |
| Part Number |
AN19GN0C5E045 |
| Subcategory |
Motor Control Starter |
| Product Type |
Starter |
| Series |
Freedom NEMA |
| Configuration |
Non-reversing |
| NEMA Frame Size |
NEMA Size 2 |
| Amperage Rating |
45 A |
| Relay Type |
C440 electronic overload relay |
| Overload Relay |
C440 electronic |
| Selectable Trip Classes |
10A, 10, 20, 30 |
| Reset Mode |
SEL reset |
| Coil Voltage |
480/60 Hz or 440/50 Hz |
| Mounting Orientation |
Horizontal |
| Certifications |
UL, CSA, CE, NEMA |
| Compliance |
RoHS Compliant |
| Dimensions (L × W × H) |
4.98 × 2.6 × 7.1 in |
| Weight |
4 lb |
Information About AN19GN0C5E045
The AN19GN0C5E045 is a motor control starter from Eaton’s Freedom NEMA series, engineered for industrial motor management and protection. It incorporates a C440 electronic overload relay that provides selectable trip classes and reset options, enabling flexible motor protection based on application requirements. The starter operates with a 480/60 Hz or 440/50 Hz coil voltage and is configured in a non-reversing design for standard motor starting operations. Built to meet UL, CSA, CE, and NEMA standards, it delivers dependable performance for industrial automation and motor control systems.
Key Features:
- 45 Amp Motor Control Rating: Designed to manage and protect industrial motors in demanding applications.
- Freedom NEMA Starter Platform: Part of Eaton’s proven Freedom NEMA motor control series.
- NEMA Size 2 Frame: Suitable for medium-sized motor loads in industrial equipment.
- C440 Electronic Overload Relay: Provides precise overload protection with advanced electronic sensing.
- Selectable Trip Class Settings: Supports class 10A, 10, 20, and 30 for tailored motor protection.
- Non-Reversing Configuration: Ideal for standard motor starting applications without directional switching.
- Flexible Coil Voltage: Compatible with 480 V at 60 Hz or 440 V at 50 Hz control circuits.
- Horizontal Mounting Design: Allows efficient installation within motor control panels and control cabinets.
The AN19GN0C5E045 delivers the reliability and precision required for controlling and protecting industrial motors in automation and motor control systems.
